The Canon Powershot SD940IS (IXUS120IS) was released on August 19'th, 2009

CHDK for IXUS120IS SD940 firmware 1.00e, 1.01a, 1.02c, 1.03b and 1.03c are available in a very stable Beta from the CHDK Autobuild Server.

1 Reviews
2 Technical Data
3 Firmware info
4 Notes for new firmware versions :
5 CHDK Specialties
6 For Developers
7 News & Development History:

ReviewsEdit

Steve's Digicams

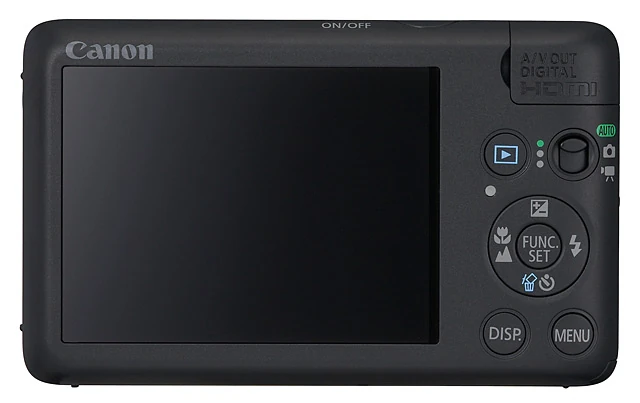

SD940 Black
Added by Waterwingz
Photography review.com Images
Rated a Consumers Report "Best Buy" in the Fall 2010 Buyer's Guide

Technical DataEdit

Digic IV image processor
DryOS operating system
Sensor: 12.1 megapixel, 1/2.3 inch CCD, new 12 bit type
Lens: 4x optical zoom 28mm - 112mm, F/2.8 (W) - F/5.9 (T)

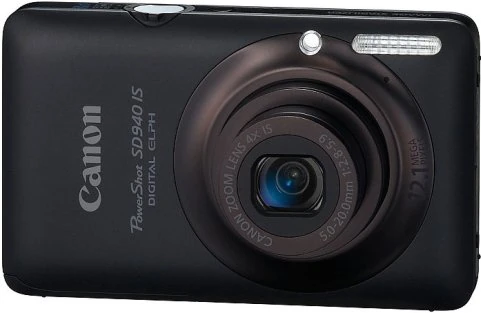

SD940 Black
Added by Waterwingz
Image stabilization (lens shift-type)
Display: 2.7 inch 230,000 pixels
No optical viewfinder
Video: 1280x720 HD, 640x480 VGA, 320x240 VGA, all @30fps; MOV format (Image: H.264; Audio: Linear PCM (Monaural)
Combined USB mini & AV-out jack
Storage: SD / SDHC / MMC / MMC Plus / HC MMC Plus
Power: Lithium-ion Battery NB-4L (CIPA testing: 220 shots)
Dimensions (WxHxD): 3.52 x 2.16 x 0.79 inch / 89.5 x 54.9 x 20.0 mm
Weight: 120 g (4.23 oz.) without batteries

Specifications: Canon USA
Guides & Manuals: Canon USA DL page

Firmware info Edit

Firmware versions seen in the wild are : 1.00E, 1.01A, 1.02C, 1.03B, 1.03C.

All versions have been ported and are available from the autobuild server.

ASIA 1.00E PAL Version Header

Canon CANON DIGITAL IXUS 120 IS
P-ID: 31E6 PAL D

Firmware Ver GM1.0OE
NoError
Jul 2 2009 14:36:03

Adj Ver.005.003
Mecha Condition: 0x00000000
Driver Info: 0x00000000

Notes for new firmware versions :Edit

Create an empty file called ver.req on SD card's root, go into playback mode, then press FUNC SET - and DISP - simultaneously. Without the ver.req file you will still get a version number but with much less other information. For example, version 1.03C shows up as 1.0.3.0.

CHDK SpecialtiesEdit

Camera does not have a direct PRINT button. Short press on DISP to activate CHDK <alt> mode, longer 1/2 second press for original function (changes what the Canon software displays on the LCD), hold for one second to change LCD brightness.

For DevelopersEdit

General info:Edit

write 0x46 to turn on

0xC0220130  Right Side Indicator Light - Green
0xC0220134  Right Side Indicator Light - Orange
0xC0223030  Front Autofocus LED - Bright Orange!
(Note: turning on the Green and Orange light simultaneously gives Yellow)

Firmware DumpsEdit

All dumps using CBasic udumper :

Firmware 1.00E: 8MB dump by trogg
Firmware 1.01A: 8MB dump by fvdk
Firmware 1.02C: 8MB dump by zebra
Firmware 1.03B: 8MB dump by Spike940
Firmware 1.03C: 8MB dump by waterwingz

available as of Q1 2011 at box.net

Porting process & linksEdit

Latest release of CHDK for SD940 (IXUS120) for firmware 1.01A, 1.02C, 1.03B & 1.03C available from the autobuild server CHDK Autobuild Server

Latest gossip, updates and other information about pending fixes and releases available at this CHDK forum link

Please post requests for other firmware versions there.

News & Development History: Edit

(22-May-2011) CHDK for the IXUS120 SD940 1.00e now available at CHDK autobuild server
(10-Apr-2011) CHDK for the IXUS120 SD940 1.01a & 1.03b now available at CHDK autobuild server
(13-Feb-2011) CHDK for the IXUS120 SD940 1.02c & 1.03c now available at CHDK autobuild server
(11-Feb-2011) CHDK for the IXUS120 SD940 1.02c & 1.03c now available at CHDK-DE for IXUS940 SD940
(12-Dec-2010) alpha release 4 for fw 1.03c released at zShare download link
12-Dec-2010) alpha release for fw 1.02c at zShare.net download link
(12-Dec-2010) alpha release 3 for fw 1.03c released
(25-Nov-2010) alpha release 2 for fw 1.03c released
(20-Nov-2010) alpha release for fw 1.03c released
(03-Oct-2010) dump for fw 1.03c provided by waterwingz
(07-Oct-2009) dump for fw 1.02c provided by zebra
(19-Aug-2009) Canon press release of new camera
