Canon Powershot SD1200IS / IXUS95IS / IXY DIGITAL 110 IS

The Powershot SD1200IS / IXUS95IS was released on February 17, 2009

Notice

CHDK is available for the Powershot SD1200IS / IXUS95IS with firmware version 1.00C from the Download page. A beta version for firmware 1.00B is available from the SD1200 porting forum thread

Note that this camera does not appear to support dual partitions so use an SD card 4G or smaller for Card Lock autobooting. If you would like to help test a fix this, see this post SD1200 IS Porting Thread. Note that CHDK will work with larger cards formatted in FAT32, but only using firmware update mode.

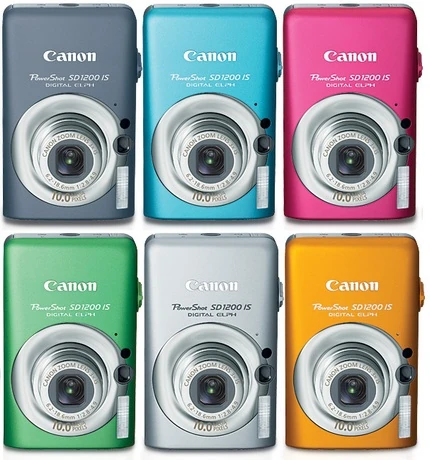

Sd1200is all

Powershot SD1200IS Endless Color Choices

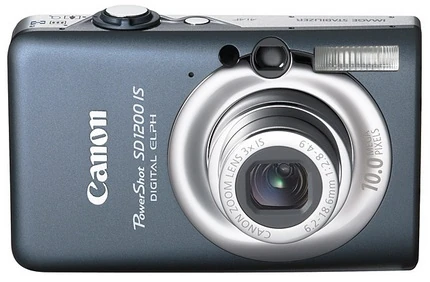

PowerShot SD1200 IS Front

Powershot SD12000IS Front

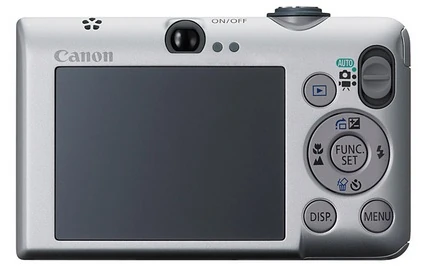

PowerShot SD1200 IS Back

Powershot SD1200 Back


Reviews and Specifications[]

Technical Data[]

  • Digic IV image processor
  • DryOS operating system
  • Sensor: 10.0 million effective pixels, 1/2.3 CCD (6.16 x 4.62 mm, 0.28 cm²), 35 MP/cm² Pixel Density
  • Max image size: 3648 x 2736
  • 3x optical zoom lens 35-105mm (35mm equiv), F2.8 - F4.9
  • 2.5 inch LCD, 230,000 pixels
  • ISO 80-1600
  • 640 x 480 @ 30 fps, 320 x 240 @ 30 fps movie recording
  • Power: Lithium-Ion NB-6L battery
  • Weight (without battery): 120 g (4.2 oz), Dimensions: 86 x 55 x 22 mm (3.4 x 2.2 x 0.9 in)

Firmware info[]

The vers.req file is used to retrieve firmware information from the camera.

After holding down FUNCSET and then pressing trash&timer:

P-ID:31C4 NT D       <-- (US NTSC Version)


Firmware Ver GM1.00C
NoError
Jan 9 2009 14:57:24

Second press of trash&timer (while still holding FUNCSET) reveals:

Adj Ver. 006.008

Third press of trash&timer (while still holding FUNCSET) brings up this:

Adj Ver. 006.008

IS Firm Ver. 2.07

IS Param Ver. 2.09

After holding down FUNCSET then pressing trash&timer four times with vers.req file:

Driver info: 0x00000000

For Developers[]

Interested in helping port? Found Bugs? Head here!


LED addresses[]

#define LED_IO_R 0xC0220130    // IO indicator LED (red state)
#define LED_IO_G 0xC0220134    // IO indicator LED (green state)
// Red and Green together is orange

#define LED_O_LF 0xC0220138    // IO indicator LED left (yellow state)
#define LED_AF   0xC0223030    // Auto-focus LED (very bright...)

Firmware dumps[]

  • firmware version 1.00C (4MB), blinked out by syrius (forum link), starting at 0xFFC00000
  • firmware version 1.00B (4MB), dumped by luddek with cBasic udumper
Saveas64

Download location for firmware dumps:
P&S firmware dumps mirror
