S100
Talk0this wiki

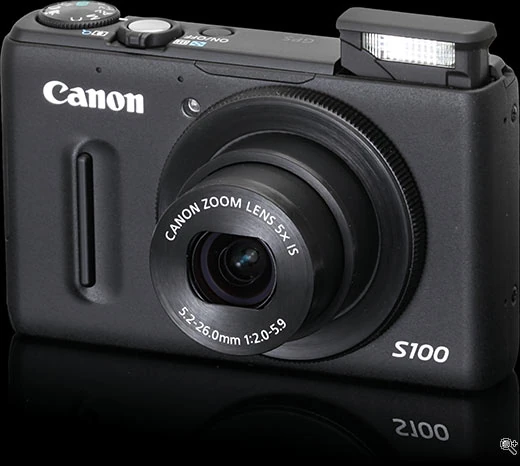

The Powershot S100 was released on Sept 15 2011
|
CHDK is available as an BETA version for the Powershot s100 with firmware versions 1.00D, 1.00E, 1.01A and 1.01B from Stable and Development branches. |
|
CHDK does not currently support loading on the S100 with the firmware update method |
|
|
Canon released a firmware update for the S100 on 2013-02-20. There is also a service notice to fix a lens error problem with some S100 cameras. Click on the Product Advisory tab at this link |
|
Added by Waterwingz Reviews and Specifications
Edit
- DPReview
- trustedreviews.com
- Canon S100 User Community (tagged: CHDK )
Technical DataEdit
- Digic V image processor
- 12.1 MP 1/1.7" Canon CMOS sensor
- 24-120mm (equivalent) lens range, F2.0-5.9, built-in neutral density filter
- ISO 80-6400
- 2.3 fps continuous shooting (9.6 fps for 8 frames in High-Speed burst mode)
- Full HD (1080p24) movie recording; H.264 compression, MOV format
- Optical zoom in movie mode
- Super slow motion movie recording (640x480 @120fps, 320x340 @240 fps)
- Direct movie record button
- Built-in GPS unit with image tagging and logger functions
→ Canon USA - S100 product information
Firmware info Edit
The S100 does not support loading CHDK via the firmare update method. Use the SD card lock autoboot method.
The use of ver.req to determine your firmare version may not work. It is recommended you use this utility to determine your firmware version : http://www.zenoshrdlu.com/acid/acid.html
For DevelopersEdit
- firmware loading address: FF000000
- S100 porting thread started by c10ud: http://chdk.setepontos.com/index.php?topic=7887.0
LED addressesEdit
power led: 0xC022C30C
Available firmware dumpsEdit
- S100 firmware 1.00D full 16MB dump by Digiman1946 (forum link)
- S100 firmware 1.00E full 16MB dump by hiker_jon (forum link)
- S100 firmware 1.01A full 16MB dump by The Chief (forum link)
- S100 firmware 1.01B full 16MB dump by Jasperbuurman (forum link)
- S100 firmware 1.02A full 16MB dump by Vikingcove (forum link)
|
Download location for firmware dumps: |
