PowerShot SD950 IS DIGITAL ELPH (US market) / DIGITAL IXUS 960 IS (Europe) / IXY DIGITAL 2000 IS (Japan)

Notice

CHDK is available for the Ixus 960 (SD950) with firmware versions 1.00D and 1.00C from the Download page.
Cameras with fw version 1.00E are NOT supported yet !

  • This camera do not have multipartition support, the autostart method is only supported up to 4GB cards;
    starting CHDK with the "Firmware Update" menu item works also with cards > 4GB

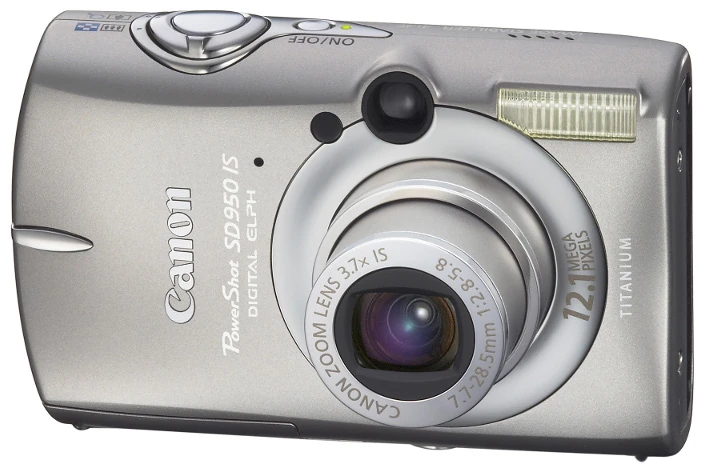

20070820 hiRes sd950is hz

Powershot SD950 IS Front

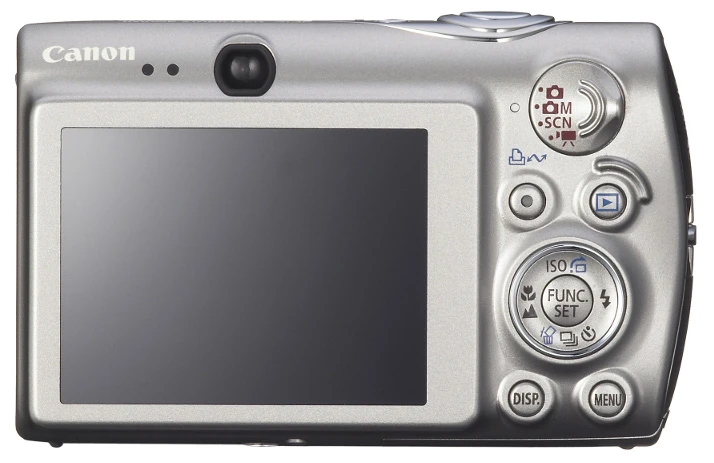

20070820 hiRes sd950is back

Powershot SD950 IS Back

Reviews and Specifications Edit

Background Edit

The Canon PowerShot SD950IS was released on August 27, 2007. Images are processed used Canon's Digic III platform and features the DRYOS operating system. This camera is particularly interesting because of its high image density (12.1 megapixels).

Notes:

  • Multi partition support for SDHC cards > 4GB works.

Technical Data Edit

  • 12.1 effective Megapixel CCD
  • F2.8-5.8, 3.7X optical zoom lens, equivalent to 35 - 133 mm
  • ND Filter
  • Optical image stabilization
  • 2.5" LCD display with 230,000 pixels
  • Enhanced face detection and movie mode features
  • SD/SDHC/MMC/MMCplus memory card slots
  • Uses NB-5L li-ion battery, 240 shots per charge

For more information about the US version of this camera, see [1].

Firmware Version Edit

placing ver.req file in the root directory and then pressing SET + DISP together displays:

Canon PowerShot SD950 IS

P-ID:315F  NT D

Firmware Ver GM1.00D
NoError
Aug 23 2007  09:21:45

Placing a vers.req file in the root directory yields the exact same display. Pressing SET + DISP again displays:

Canon PowerShot SD950 IS

P-ID:315F  NT D

Adj Ver.007.009

and a third time displays:

Canon PowerShot SD950 IS

P-ID:315F  NT D

Adj Ver.007.009
Total Shoot:  48
Open Shutter: 0
Close Shutter:0

For developers Edit

  • There are 2 very similar firmware versions: 1.00c and 1.00d - they are identical except for the firmware version string. Porting for those two firmwares is done on the 1.00d tree; since there are no code differences, CHDK for 1.00d also works with a 1.00c camera.
  • There's another known fw version, NOT supported by CHDK yet (as of 31-Mar-2010): 1.00e

Firmware dumps Edit

  • Firmware has been extracted from both the SD950 IS (US Model, P-ID: 315F NT D) and the IXUS960 IS (International model, P-ID: 315F PAL D). The firmware is identical for each.
  • The firmware can be found by following links on this page: http://chdk.setepontos.com/index.php/topic,288.45.html
  • Dump fw version 1.00C: zShare link (by yiha, forum link)
  • A 1.00e dump (8MB, by leighsinclair, dumped & cleaned with CardTricks) is available from here (forum link)
Saveas64

Download location for firmware dumps:
P&S firmware dumps mirror

Porting Edit

  • 2010-03-31: a 1.00e dump is available. Leigh Sinclair (chdk at leighsinclair dot net) would be very happy to assist developers in porting to this version, and can test and check on his camera.
  • 2009-12-30: the 1.00c CHDK version is now available from the Autobuild Server, as a copy of the 1.00d build.
  • Finally there is a working CHDK version in trunk for firmware version 1.00d (1.00d is European version of the firmware for this camera according to the Canon support person to whom I spoke), it can be found from the Download page.
  • J. Wiegley would like to assist in porting CHDK to this model. He's got a camera, some free time and a brain but needs help as he has never worked on a CHDK port before. He can be reached at jeffw*at*csun.edu. The implementors of the A650 port would be most welcome since it appears these cameras are the duals of each other in the A-series and SD-series and might share very similar firmware.
  • Shawn Morrissey (Shawnmor 18:46, 22 July 2008 (UTC)) (shawn.morrissey at hotmail dot com) would be happy to assist the port to the SD950IS as well. He has a camera, and is willing to help test and debug.
  • David Stanton 8/21/2008 (david dot longjohn dot stanton at gmail dot com) is also available to assist with porting. Have camera and willing to check for and report bugs, etc. Loaded Juciphox autobuild, but did not find "Firm Update" selection on menu.

Does anyone know of the 1.00b version that I seem to have?
