Canon Powershot SD960IS / IXUS110IS / IXY 510

The Powershot SD960 IS (North America) / IXUS110 IS (Europe) / IXY 510 IS (Japan) was released on February 17, 2009

Notice

Beta release for the IXUS110IS / SD960IS with firmware 1.00b, 1.01d, 1.01f, 1.01g is available from the Autobuild Server

Sd960-colors

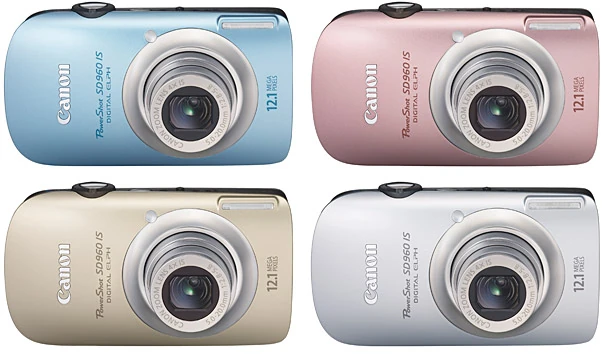

Powershot SD960IS lineup

Sd960-front

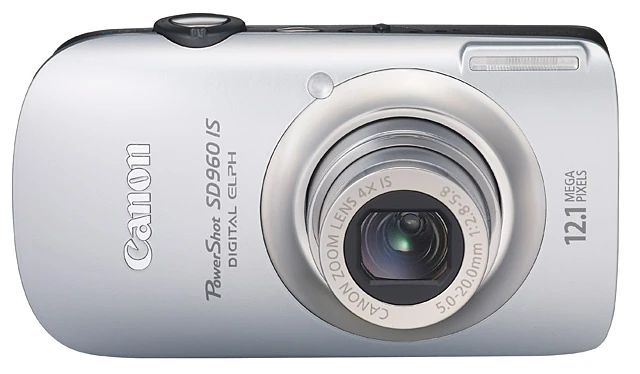

Powershot SD960IS Front

Sd960-back

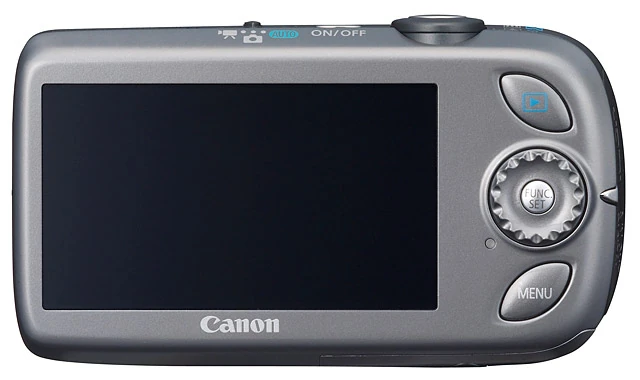

Powershot SD960 Back

Reviews and Specifications Edit

Technical DataEdit

  • Digic IV image processor
  • DryOS operating system
  • Sensor: 12.1 million effective pixels, 1/2.3 CCD (6.16 x 4.62 mm, 0.28 cm²), 43 MP/cm² Pixel Density
  • Max image size: 4000 x 3000
  • 4x optical zoom lens 28-112mm (35mm equiv), F2.8 - F5.8, Image stabilization
  • 2.8 inch LCD, 230,000 pixels
  • ISO 80-1600
  • High Definition Movie Recording: 1280 x 720 (30 fps) up to 20 mins
  • Standard Definition Movie Recording: 640 x 480 (30 fps), 320 x 240 (30 fps)
  • HDMI output
  • Power: Lithium-Ion NB-4L battery
  • Weight (with battery): 145 g (5.1 oz), Dimensions: 98 x 54 x 22 mm (3.9 x 2.1 x 0.9 in)

Firmware info Edit

The ver.req file is used to retrieve firmware information from the camera.

After holding down FUNCSET then press DOWN:

Canon Powershot SD960 IS
P-ID:31BD  NT D

Firmware Ver GM1.01D
NoError
Jan 29 2009  13:13:15

Subsequent press of DOWN (while still holding FUNCSET) reveals:

Canon Powershot SD960 IS
P-ID:31BD  NT D
AdjVer005.010

and another press of DOWN (while still holding FUNCSET) brings up this:

Canon Powershot SD960 IS
P-ID:31BD  NT D
AdjVer005.010
Total Shoot:0
Zoom Retry Count:0
Mecha Condition: 0x00000000

and another press of DOWN (while still holding FUNCSET) brings up this:

Canon Powershot SD960 IS
P-ID:31BD NT D
Driver Info: 0x00000000

and another press of DOWN (while still holding FUNCSET) brings up this:

Canon Powershot SD960 IS
P-ID:31BD NT D
FreeFall Total Count: 0

CHDK SpecialtiesEdit

This section describes special CHDK-related things...

  • Since this camera has no print button, Playback [>] is used as CHDK's <Alt> button (short press = <Alt> button, long press = original function).
  • Starting with CHDK 1.2 (r2498), the On/Off button can optionally be used in <Alt> mode as Display button replacement (CHDK Settings -> ON/OFF button in <ALT> mode)
  • In CHDK 1.1, the On/Off button always acts as Display in <Alt> mode, therefore
  • You need to exit <Alt> mode to be able to switch the camera off with the On/Off button!

For DevelopersEdit

LED addressesEdit


 <insert found addresses here>

Porting threadEdit

http://chdk.setepontos.com/index.php?topic=9133.0

Firmware dumpsEdit

  • Firmware 1.00B (8MB, by cyberT, dumped with cBasic udumper, [1])
  • Firmware 1.01D (8MB, by Tobi, dumped with cBasic udumper, [2])
  • Firmware 1.01F (8MB, by hcosta, dumped with cBasic udumper, [3])
  • Firmware 1.01G (8MB, by ant_thomas, dumped with cBasic udumper, [4])
Saveas64

Download location for firmware dumps:
P&S firmware dumps mirror
