Advanced usage of IDA scripts to generate useful (in contrast with buildin WinGraph) call graph layouts.

Take IDC script dump-xrefs.idc from svn.

Run it over function under cursor, and you will get two files in "<your_idb_file_path>/graphs" folder (mkdir it first).

In general, Touchgraph is much more practical in analysis help, but skyrails is really funny ;)


Updates 27/08/2008

Updates both to IDC script and touchgraph code to make call hierarchy layout.


Skyrails task shell1

Skyrails visualization, ~750 nodes

Task shell

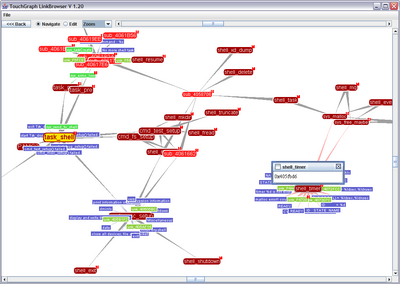

Touchgraph, ~750 nodes

Fcp manage task

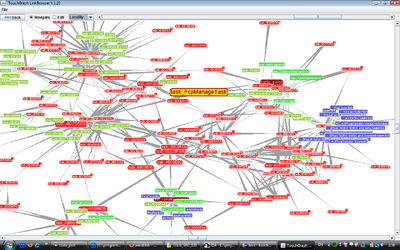

Touchgraph, 300 Nodes

Chdk-wingraph-sample

Compare with IDA buildin wingraph ;)

Task service low

Updated version with call hierarchy arrangement
