Grids

CHDK (build 136 or later) allows you to custom design your own composition grids. Small files with the naming convention of filename.grd may be saved in a CHDK/GRIDS/ sub-folder, and called up for use with the OSD Parameters menu option of "Grid Settings".
Grids, like all other chdk OSD elements, do not replace your camera's own grid displays, but are drawn on top of your camera's own display repeatedly by chdk.

Graphic Commands[]

Format of grid file for CHDK:
@title <text to show in menu>

@line  x0, y0, x1, y1, lineColor
@rect  x0, y0, x1, y1, borderColor
@rectf x0, y0, x1, y1, borderColor, fillColor
@elps  x0, y0, rx, ry, borderColor
@elpsf x0, y0, rx, ry, fillColor


All numbers can be either decimal or hexadecimal.
Drawing coordinates are all within a 360 (x) by 240 (y) pixel area, Upper-left corner is 0, 0 and lower-right is 359, 239
Any lines which have an incorrect format are ignored. So, you can use comments in the grid-file. I suggest starting comment lines with symbol #, although it is unnecessary.
Color is the color number from current color palette (you can use the Draw Palette command in the Miscellaneous Stuff menu). Also, you can use hexadecimal values (as it is written in palette picker). For example, 15 -> 0x0F, 34 -> 0x22, and so on, but keep in mind that for complex Grid files it is advantageous to use decimal numbers to save space.
'elps' is ellipse, right. x0, y0 - center; rx, ry - two radiuses (See Ellipse; a&b on the picture). If rx equals ry, it will be a circle.
@rectf   0,  0,359,249,255,255
@elpsf 179,119,133,118,  0,  1
--GrAnd 19:23, 23 June 2007 (UTC)
Lines and shapes are drawn in the order they appear in the file, essentially drawing shapes on top of each other.  Note that (semi-)transparent colors do not show the underlying shape, but rather the camera picture.  This can be used to 'punch holes' into shapes.  For example, a transparent circle on an otherwise black background:
@title Hole Punch
@rectf   0,  0, 359, 259,  1,  1
@elpsf 179,119, 133, 118,  0,  0
However, overlapping lines and shapes - including CHDK OSD options overlapping any shapes in your grid - may flicker badly in the area of overlap.

Tutorial[]

(needs to be added?)



DataGhost's Text2Grid Utility[]

DataGhost recently wrote a fun utility to assist in creating grids, as well as adding a feature that was tedious and difficult before, creating grid-shape commands to print small snippets of text on your displayed grid. (See below on the "Authorized-Use ONLY" Grid for an initial use of this utility.)

The program was written in PHP so it needs to run on a server that allows you to execute it in the proper environment. DataGhost has been kind enough to also host it on his own domain so that you may run it right in your browser, as well as provide the GPL licensed code so that anyone may put on their own server for personal use.

The working utility can be found here DataGhost's Text2Grid

The viewable and downloadable PHP code for it can be found here: Text2Grid PHP Source Code

A few things you should know about using it that will help you to get the most out of it.

  • Keep text strings short. You have approximately a 3886 byte limit (does anyone know the exact limit? 3990 was too high) for your Grid File, otherwise parts of your grid will not get displayed, they are just simply not read beyond that byte limit. If you see missing lines or bits of characters missing in your displayed grid file, go back and tweak your text or its position to get that byte count down. Be aware too that upper-case and lower-case of the same characters can also alter how many lines of code each uses. Example: "a" may require more lines of code than "A", the caps character being a simpler design to render. Experiment.
  • To get more text on the screen try using smaller fonts, and trying to keep them in the upper-left corner of your display. This keeps them from going into 3-digit X/Y coordinates, greatly diminishing the number of bytes used up for each grid-command line.
  • Use any of the color codes from 1 to 9 if possible, this too keeping each grid-command line a byte or two shorter.
  • Using the above tricks to keep the byte-count down I found it was possible to create a grid that displayed "Return to: (my address & phone-number)" so that when traveling you can leave that displayed in your viewfinder in case your camera is lost or stolen (when you're not using it that is). Use short lines, abbreviate where possible, and put returns on each line so it keeps it all in the upper-left corner for smaller coordinate position numbers.
  • If you want to use the feature where you can upload a PNG image and have it try to do a simple raster to vector conversion, keep in mind there is a ratio variance between the grid drawing area and your actual EVF/LCD display. The grid being drawn in a 3:2 aspect ratio, the EVF/LCD in a 4:3 aspect ratio. If using a graphic editor to create your simple design: start out with a white background 360x270 pixels. After you are done drawing your line diagrams/grid-lines in black, then resize that image to 360x240, making sure you have "Keep Proportional" turned OFF. Then when you submit your graphic image to the Text2Grid program, it will render your square images in the right proportions so they look square in the EVF.
  • There are some limits to how well the graphic to grid file conversion works. Here is what DataGhost had to say about this issue: "... this script only works well for horizontal and vertical lines. A circle will be converted into a bunch of (1-pixel and slightly longer) horizontal/vertical lines, a diagonal line is even worse (1 line per pixel)" This means you can't go overboard and hope for complex shapes in your Grid file.
  • The default use was to print white text on a full black background. Adjust the background to 0 (clear), or just remember to delete the very first line of the resulting grid file to remove that full-black rectangle background.
  • Mostly this is an excellent program to create the code needed for small text-tags and things of that nature. With the added capability of rotating your text so you may align it with a border-line on either side of your screen. A fun tool to help convert your grid-idea to an actual grid file. While it may not render the exact shapes from a submitted PNG image, it will at least pick out the main coordinates where you can then use them to simplify your grid using the standard rectangle and line commands.

If anyone would like to go through all the cropping grids (below) and put a little X:Y text reminder, examples, 10:8 or 7:5, in an unused corner of each (as an add-on for each grid), please do. This would be an excellent use for this tool, so you can see right in your viewfinder exactly what cropping-grid you have loaded and are using at the time.

A similar tool, that achieves similar results, is available from http://marquisdegeek.com/rnd_chdkgrids


User Contributions[]

The 3:2 EVF/LCD dimensions do not correlate exactly to the 4:3 dimensions of the actual image You might, or will, have to adjust your cropping areas and guidelines accordingly. The easiest way that I found was to take an actual image taken from the camera and loading it into PhotoLine 32 editor. Then create a "lasso" in the exact proportions required (typing in the ratio in the lasso's tool options), and clicking on "proportional". Create a lasso to fill up the image from one border to another. Then create a new layer from that lasso (tool > lasso > convert layer to lasso), so I could see the new dimension outline when downsized. Downsize/Scale the whole document (not just a layer) to the dimensions of 360x240 with proportional OFF. Then measure how many pixels are left between the lasso layer and the original image's borders with any tool that shows pixel dimensions when used. That will be the amount to subtract from the corresponding EVF/LCD display borders.

-- Golden Grids[]

This layout expands on the more simple demo golden-ratio grids, based on the Golden Ratio. A composition discovered millennia ago concerning the most pleasing and universally natural shape. The age-old subject composition "rule of thirds" was taken from the Golden Ratio as an easier (though inaccurate) way to approximate it. This grid adds in the triangular ratios for all 4 corners as well as a smaller subset of spiraling rectangles denoting lobes of a golden-spiral. Suggested filename: "golden3.grd". The colors were chosen for an S3 IS, you may need to change the colors for yours. I left spaces between each batch of lines being drawn, each section being upper-left, upper-right, lower-left, and lower-right, in case you want to tweak them for position or color, it'll be easier to find each section. The blocks are: tic-tac-toe grid (4 lines, color 0x07), golden-triangles (8 lines, color 0x27), and then the spiraling rectangles (16 lines, color 0x05).

Sample image:

Grids

For an even more interesting and multi-purpose composition aid you might want to append the "Rulers Grid" lines to this one. Though the display might be much too busy for most people's tastes. (I just found out that I like it and it is now my new default. All colors in my grid definitions are transparent so they are much less obtrusive in actual use than the example images here appear at first glance.)

(adjusted a couple pixels for 4:3 to 3:2 ratio)

@title Golden-Ratio Grids
@line 0,   92,  359, 92,  0x07
@line 0,   148, 359, 148, 0x07
@line 137, 0,   137, 239, 0x07
@line 222, 0,   222, 239, 0x07

@line 0,   0,   137, 92,  0x27
@line 137, 0,   85,  92,  0x27

@line 359, 0,   222, 92,  0x27
@line 222, 0,   275, 92,  0x27

@line 0,   239, 137, 148, 0x27
@line 137, 239, 85,  148, 0x27

@line 359, 239, 222, 148, 0x27
@line 222, 239, 275, 148, 0x27

@line 85,  0,   85,  92,  0x05
@line 85,  57,  137, 57,  0x05
@line 105, 57,  105, 92,  0x05
@line 85,  70,  105, 70,  0x05

@line 275, 0,   275, 92,  0x05
@line 222, 56,  275, 56,  0x05
@line 255, 56,  255, 92,  0x05
@line 255, 70,  275, 70,  0x05

@line 85,  148, 85,  239, 0x05
@line 85,  183, 137, 183, 0x05
@line 105, 148, 105, 183, 0x05
@line 85,  170, 105, 170, 0x05

@line 275, 148, 275, 239, 0x05
@line 222, 183, 275, 183, 0x05
@line 255, 148, 255, 183, 0x05
@line 255, 170, 275, 170, 0x05

Supplementary Golden-Spiral Shape Commands

Goldenspiral

Golden Spiral

GoldenSpiral Grid

Golden Ratio Grid with Spiral Overlaid

I tried adding in a golden-spiral to the above grid to see how it might help for some unique nature compositions, but it became a bit too much to have it all displayed on the same grid. If anyone is curious to see how a Golden-Spiral relates to the Golden-Rectangles and Golden-Triangles in the above (and don't care to do all the hand-plotting like I did), just append the following commands to your GoldGrid.grd file from above. It only displays one orientation of the 4 possible orientations, but you should be able to visualize how the 3 other positions would be oriented to the pre-existing rectangles and triangles.

@line 359,   0, 355,  55, 0x06
@line 355,  55, 343,  95, 0x06
@line 343,  95, 315, 146, 0x06
@line 315, 146, 281, 185, 0x06
@line 281, 185, 237, 216, 0x06
@line 237, 216, 186, 236, 0x06
@line 186, 236, 138, 239, 0x06
@line 138, 239, 112, 237, 0x06
@line 112, 237,  81, 227, 0x06
@line  81, 227,  50, 206, 0x06
@line  50, 206,  25, 177, 0x06
@line  25, 177,  10, 144, 0x06
@line  10, 144,   2, 116, 0x06
@line   2, 116,   0,  92, 0x06
@line   0,  92,   3,  69, 0x06
@line   3,  69,  10,  49, 0x06
@line  10,  49,  21,  31, 0x06
@line  21,  31,  37,  17, 0x06
@line  37,  17,  55,   7, 0x06
@line  55,   7,  70,   1, 0x06
@line  70,   1,  85,   0, 0x06
@line  85,   0,  97,   2, 0x06
@line  97,   2, 111,   8, 0x06
@line 111,   8, 124,  19, 0x06
@line 124,  19, 133,  33, 0x06
@line 133,  33, 137,  46, 0x06
@line 137,  46, 138,  57, 0x06
@line 138,  57, 135,  71, 0x06
@line 135,  71, 129,  81, 0x06
@line 129,  81, 120,  88, 0x06
@line 120,  88, 112,  91, 0x06
@line 112,  91, 105,  92, 0x06
@line 105,  92,  97,  90, 0x06
@line  97,  90,  92,  86, 0x06
@line  92,  86,  88,  81, 0x06
@line  88,  81,  86,  75, 0x06
@line  86,  75,  85,  70, 0x06
@line  85,  70,  87,  65, 0x06
@line  87,  65,  89,  61, 0x06
@line  89,  61,  93,  58, 0x06
@line  93,  58,  97,  57, 0x06
@line  97,  57, 103,  60, 0x06
@line 103,  60, 104,  63, 0x06
@line 104,  63, 105,  65, 0x06
@line 105,  65, 103,  68, 0x06
@line 103,  68, 101,  70, 0x06
@line 101,  70,  99,  69, 0x06
@line  99,  69,  97,  67, 0x06



-- Golden Ratio Cross-Hair[]

GoldenRatioCrossHair

Golden Ratio Cross Hairs

Building further on the Golden Ratio, this grid shows 4 black cross-hairs at the Golden Ratio points and one cross-hair at the center.

By Johan Van Barel (http://www.vanbarel.com)

@title Golden-Ratio Cross

@line 133,  92, 141,  92, 0xFF
@line 218,  92, 226,  92, 0xFF
@line 133, 148, 141, 148, 0xFF
@line 218, 148, 226, 148, 0xFF

@line 137,  88, 137,  96, 0xFF
@line 137, 144, 137, 152, 0xFF
@line 222,  88, 222,  96, 0xFF
@line 222, 144, 222, 152, 0xFF

@line 176, 120, 184, 120, 0xFF
@line 180, 116, 180, 124, 0xFF

-- 3 X 3 Cross-Hair[]

3x3CrossHair

3x3 Cross Hairs

This grid shows 4 black cross-hairs at 1/3 ratio points and one cross-hair at the center.

By Johan Van Barel (http://www.vanbarel.com)

@title 3x3 Cross

@line 116,  80, 124,  80, 0xFF
@line 236,  80, 244,  80, 0xFF
@line 116, 160, 124, 160, 0xFF
@line 236, 160, 244, 160, 0xFF

@line 120,  76, 120,  84, 0xFF
@line 120, 156, 120, 164, 0xFF
@line 240,  76, 240,  84, 0xFF
@line 240, 156, 240, 164, 0xFF

@line 176, 120, 184, 120, 0xFF
@line 180, 116, 180, 124, 0xFF

-- Golden Ratio + 3 X 3 Cross-Hair[]

Golden 3x3CrossHair

3x3 and Golden Ratio Cross Hairs

This grid is a combination of the previous 2 grids. It shows 4 black cross-hairs at the Golden Ratio points, 4 black cross-hairs at 1/3 ratio points and one cross-hair at the center.

By Johan Van Barel (http://www.vanbarel.com)

@title Golden-Ratio 3x3 Cross

@line 133,  92, 141,  92, 0xFF
@line 218,  92, 226,  92, 0xFF
@line 133, 148, 141, 148, 0xFF
@line 218, 148, 226, 148, 0xFF

@line 137,  88, 137,  96, 0xFF
@line 137, 144, 137, 152, 0xFF
@line 222,  88, 222,  96, 0xFF
@line 222, 144, 222, 152, 0xFF

@line 116,  80, 124,  80, 0xFF
@line 236,  80, 244,  80, 0xFF
@line 116, 160, 124, 160, 0xFF
@line 236, 160, 244, 160, 0xFF

@line 120,  76, 120,  84, 0xFF
@line 120, 156, 120, 164, 0xFF
@line 240,  76, 240,  84, 0xFF
@line 240, 156, 240, 164, 0xFF

@line 176, 120, 184, 120, 0xFF
@line 180, 116, 180, 124, 0xFF

-- Golden Ratio + 3 X 3 as lines[]

Golden 3x3CrossHairLINES

Golden Ratio and 3x3 Lines

These grids are combinations of the golden ratio basic lines and the 3x3 grid, also as lines. The 3x3 lines do not intersect the GR lines, so the ruler can still be used in this one. The ones I'm posting here are the same and they are both visible in any lighting/color condition. To accomplish this, the lines are 2 pixels thick (effectively) and are black and white. If you want just one (transparent) color, remove the black lines and change the color of the white lines.

The first one is the simplest one, though because the lines intersect, some pixels may blink. If this is annoying, use the second one.

@title Golden ratio, rule/3rds (contrast)

#### Golden ratio
# Black lines first, 'inside' corner squares
@line   0,  91, 359,  91, 0xFF
@line   0, 149, 359, 149, 0xFF
@line 136,   0, 136, 239, 0xFF
@line 223,   0, 223, 239, 0xFF

# White lines over black lines
@line   0,  92, 359,  92, 0x11
@line   0, 148, 359, 148, 0x11
@line 137,   0, 137, 239, 0x11
@line 222,   0, 222, 239, 0x11


#### Rule of thirds
# Black lines first
@line   0,  79, 135,  79, 0xFF
@line 224,  79, 359,  79, 0xFF
@line   0, 161, 135, 161, 0xFF
@line 224, 161, 359, 161, 0xFF

@line 119,   0, 119,  90, 0xFF
@line 239,   0, 239,  90, 0xFF
@line 119, 150, 119, 239, 0xFF
@line 239, 150, 239, 239, 0xFF

# White lines inside GR corner squares
@line   0,  80, 135,  80, 0x11
@line 224,  80, 359,  80, 0x11
@line   0, 160, 135, 160, 0x11
@line 224, 160, 359, 160, 0x11

@line 120,   0, 120,  90, 0x11
@line 240,   0, 240,  90, 0x11
@line 120, 150, 120, 239, 0x11
@line 240, 150, 240, 239, 0x11


The next one is somewhat longer, since the lines do not intersect eachother, eliminating the blinking. Acutally, I just think it's tidier, but it's larger and probably slower

@title Golden ratio, rule/3rds (contrast)

#### Golden ratio
# White lines
@line   0,  92, 359,  92, 0x11
@line   0, 148, 359, 148, 0x11
@line 137,   0, 137, 239, 0x11
@line 222,   0, 222, 239, 0x11

# Black lines 'inside' corner squares
@line   0,  91, 136,  91, 0xFF
@line 223,  91, 359,  91, 0xFF
@line   0, 149, 136, 149, 0xFF
@line 223, 149, 359, 149, 0xFF
@line 136,   0, 136,  90, 0xFF
@line 136, 149, 136, 239, 0xFF
@line 223,   0, 223,  90, 0xFF
@line 223, 149, 223, 239, 0xFF

# Black lines outside the middle square
@line 136,  93, 136, 147, 0xFF
@line 223,  93, 223, 147, 0xFF
@line 138,  91, 221,  91, 0xFF
@line 138, 149, 221, 149, 0xFF


#### Rule of thirds
# Basic white lines inside GR corner squares
@line   0,  80, 135,  80, 0x11
@line 224,  80, 359,  80, 0x11
@line   0, 160, 135, 160, 0x11
@line 224, 160, 359, 160, 0x11

@line 120,   0, 120,  90, 0x11
@line 240,   0, 240,  90, 0x11
@line 120, 150, 120, 239, 0x11
@line 240, 150, 240, 239, 0x11

# Black lines, not intersecting white lines. Four blocks:
# Top-left, top-right, bottom-left, bottom-right
@line   0,  79, 119,  79, 0xFF
@line 121,  79, 135,  79, 0xFF
@line 119,   0, 119,  79, 0xFF
@line 119,  81, 119,  90, 0xFF

@line 241,  79, 359,  79, 0xFF
@line 224,  79, 239,  79, 0xFF
@line 241,   0, 241,  79, 0xFF
@line 241,  81, 241,  90, 0xFF

@line   0, 161, 119, 161, 0xFF
@line 121, 161, 135, 161, 0xFF
@line 119, 161, 119, 239, 0xFF
@line 119, 150, 119, 159, 0xFF

@line 241, 161, 359, 161, 0xFF
@line 224, 161, 239, 161, 0xFF
@line 241, 161, 241, 239, 0xFF
@line 241, 150, 241, 159, 0xFF

-- 3 x 2 Crop[]

3x2crop

3 x 2 Crop

(adjusted for 3:4 to 3:2 ratio)

@title 3 x 2 Crop
@rectf 0, 0, 359, 12, 0x03, 0x03
@rectf 0, 226, 359, 239, 0x03, 0x03

-- 5 X 3.5 Crop[]

5x3 5crop

5 x 3.5 Crop

(adjusted for 3:4 to 3:2 ratio)

@title 5 x 3.5 Crop
@rectf 0, 0, 359, 6, 0x03, 0x03
@rectf 0, 232, 359, 239, 0x03, 0x03

-- 7 X 5 Crop[]

7x5crop

7 x 5 Crop

(adjusted for 3:4 to 3:2 ratio)

@title 7 x 5 Crop
@rectf 0, 0, 359, 4, 0x03, 0x03
@rectf 0, 234, 359, 239, 0x03, 0x03

-- 10 X 8 Crop[]

10x8crop

10 x 8 Crop

(adjusted for 3:4 to 3:2 ratio)

@title 10 x 8 Crop
@rectf 0, 0, 10, 239, 0x03, 0x03
@rectf 349, 0, 359, 239, 0x03, 0x03

-- 11 X 8.5 Crop[]

For borderless printing on standard letter-size 8.5" x 11" (typically labelled 8x10) photo paper. If you frequently print borderless 8x10 photos then this is the minor framing change that's needed to take advantage of every bit of printable area on this common paper size. This crop proportion can also ensure completely symmetric white borders when printing with margins.

@title 11 x 8.5 Paper
@rectf 0, 0, 4, 239, 0x03, 0x03
@rectf 355, 0, 359, 239, 0x03, 0x03

-- 16 X 9 Crop[]

16x9crop

16 x 9 Crop

(adjusted for 4:3 / 3:2 ratio)

@title 16 x 9 Crop
@rectf 0, 0, 359, 28, 0x03, 0x03
@rectf 0, 210, 359, 239, 0x03, 0x03


(adjusted for 16:9 ratio) // tested of PowerShot SX1 IS //

@title 16 x 9 Crop
@rectf 0, 0, 480, 28, 0x03, 0x03
@rectf 0, 210, 480, 239, 0x03, 0x03


(adjusted for 16:9 Golden Grids ratio) // tested of PowerShot SX1 IS //

GOLD 16-9

GoldGrids 16:9 crop

@title GoldGrids 16:9 crop

@line 0, 92, 480, 92, 17
@line 0, 148, 480, 148, 17
@line 183, 0, 183, 239, 17
@line 297, 0, 297, 239, 17


@line 0, 28, 480, 28, 17
@line 0, 23, 480, 23, 17

@line 0, 18, 480, 18, 17
@line 0, 13, 480, 13, 17
@line 0, 8, 480, 8, 17
@line 0, 3, 480, 3, 17


@line 0, 210, 480, 210, 17

@line 0, 215, 480, 215, 17
@line 0, 220, 480, 220, 17
@line 0, 225, 480, 225, 17
@line 0, 230, 480, 230, 17

@line 0, 235, 480, 235, 17



-- 17 X 11 Crop[]

For a common larger-format U.S. paper size.

@title 17 x 11 Crop
@rectf 0, 0, 359, 17, 0x03, 0x03
@rectf 0, 223, 359, 239, 0x03, 0x03

-- 18 X 13 Crop[]

18x13crop

18 x 13 Crop

(adjusted for 3:4 to 3:2 ratio)

@title 18 x 13 Crop
@rectf 0, 0, 359, 7, 0x03, 0x03
@rectf 0, 232, 359, 239, 0x03, 0x03

-- 19 X 13 Crop[]

For a common larger-format U.S. paper size.

@title 19 x 13 Crop
@rectf 0, 0, 359, 10, 0x03, 0x03
@rectf 0, 229, 359, 239, 0x03, 0x03

-- Square Crop[]

SQUAREcrop

Square Crop

(adjusted for 3:4 to 3:2 ratio)

@title Square Crop
@rectf 0, 0, 44, 239, 0x03, 0x03
@rectf 315, 0, 359, 239, 0x03, 0x03

-- Cross-hair[]

Crosshairs

Cross Hairs

(indicates centre of screen)

@title Cross-hair
@line 0, 119, 175, 119, 3
@line 184, 119, 359, 119, 3
@line 179, 0, 179, 115, 3
@line 179, 124, 179, 239, 3

-- 8 horizontal[]

8horizontal

8 Horizontal Areas

(8 horizontal areas)

@title 8 horizontal
@line 0, 29, 359, 29, 3
@line 0, 59, 359, 59, 3
@line 0, 89, 359, 89, 3
@line 0, 119, 359, 119, 3
@line 0, 149, 359, 149, 3
@line 0, 179, 359, 179, 3
@line 0, 209, 359, 209, 3

-- 10 horizontal[]

10horizontal

10 Horizontal Areas

(10 horizontal areas)

@title 10 horizontal
@line 0, 23, 359, 23, 3
@line 0, 47, 359, 47, 3
@line 0, 71, 359, 71, 3
@line 0, 95, 359, 95, 3
@line 0, 119, 359, 119, 3
@line 0, 143, 359, 143, 3
@line 0, 167, 359, 167, 3
@line 0, 191, 359, 191, 3
@line 0, 215, 359, 215, 3

-- 12 horizontal[]

12horizontal

12 Horizontal Areas

(12 horizontal areas)

@title 12 horizontal
@line 0, 19, 359, 19, 3
@line 0, 39, 359, 39, 3
@line 0, 59, 359, 59, 3
@line 0, 79, 359, 79, 3
@line 0, 99, 359, 99, 3
@line 0, 119, 359, 119, 3
@line 0, 139, 359, 139, 3
@line 0, 159, 359, 159, 3
@line 0, 179, 359, 179, 3
@line 0, 199, 359, 199, 3
@line 0, 219, 359, 219, 3

-- 15 horizontal[]

15horizontal

15 Horizontal Areas

(15 horizontal areas)

@title 15 horizontal
@line 0, 15, 359, 15, 3
@line 0, 31, 359, 31, 3
@line 0, 47, 359, 47, 3
@line 0, 63, 359, 63, 3
@line 0, 79, 359, 79, 3
@line 0, 95, 359, 95, 3
@line 0, 111, 359, 111, 3
@line 0, 127, 359, 127, 3
@line 0, 143, 359, 143, 3
@line 0, 159, 359, 159, 3
@line 0, 175, 359, 175, 3
@line 0, 191, 359, 191, 3
@line 0, 207, 359, 207, 3
@line 0, 223, 359, 223, 3

-- 20 horizontal[]

20horizontal

20 Horizontal Areas

(20 horizontal areas)

@title 20 horizontal
@line 0,11,359,11,3
@line 0,23,359,23,3
@line 0,35,359,35,3
@line 0,47,359,47,3
@line 0,59,359,59,3
@line 0,71,359,71,3
@line 0,83,359,83,3
@line 0,95,359,95,3
@line 0,107,359,107,3
@line 0,119,359,119,3
@line 0,131,359,131,3
@line 0,143,359,143,3
@line 0,155,359,155,3
@line 0,167,359,167,3
@line 0,179,359,179,3
@line 0,191,359,191,3
@line 0,203,359,203,3
@line 0,215,359,215,3
@line 0,227,359,227,3

-- Night-Vision Protection[]

In the past when using another digital camera for taking moon and aurora photos, or trying to get long exposures of constellations, I was frequently annoyed by how very bright the EVF display could get once my eyes became dark-adapted. Even though that camera has 3 levels of brightness to choose from, even the dimmest setting was way too bright. I even went so far as to custom-grind a glass ND-16 filter to fit into the eye-piece cup on the other camera. So I thought I'd try to see if the filled-rectangle grid function might help in this regard with Canon cameras. There's no guarantee this will be any improvement, I've not tried these for actual use, but after some short inside visual tests it appears these might actually help. You will of course have to turn off all your other On-Screen Display (OSD) items so they don't provide brighter areas, and turn down your EVF/LCD brightness to the dim setting to also help. When these grid files are on all your camera settings will not be visible except for very brief flashes while actually changing them. So that seems a plus right there. Anyway, see if these help:

For this one I just chose the darkest transparent gray I could find:

@title Night-vision Protect
@rectf 0, 0, 359, 259, 0xf8, 0xf8

And this one uses the darkest transparent red out of the available palette colors:

@title Night-vision Red
@rectf 0, 0, 359, 259, 0x42, 0x42
Horizontalhalftone

Horizontal Halftone Pattern (On mid grey background)

I'm now wondering if a half-tone grid where every other line is black might be a better route to try. I'm just reluctant to type 120 or 180 lines of graphic commands for an experiment. :-)


Well, the computer can generate the text for us :-

@title Horizontal halftone
@line 0,0,359,0,255
@line 0,2,359,2,255
@line 0,4,359,4,255
@line 0,6,359,6,255
@line 0,8,359,8,255
@line 0,10,359,10,255
@line 0,12,359,12,255
@line 0,14,359,14,255
@line 0,16,359,16,255
@line 0,18,359,18,255
@line 0,20,359,20,255
@line 0,22,359,22,255
@line 0,24,359,24,255
@line 0,26,359,26,255
@line 0,28,359,28,255
@line 0,30,359,30,255
@line 0,32,359,32,255
@line 0,34,359,34,255
@line 0,36,359,36,255
@line 0,38,359,38,255
@line 0,40,359,40,255
@line 0,42,359,42,255
@line 0,44,359,44,255
@line 0,46,359,46,255
@line 0,48,359,48,255
@line 0,50,359,50,255
@line 0,52,359,52,255
@line 0,54,359,54,255
@line 0,56,359,56,255
@line 0,58,359,58,255
@line 0,60,359,60,255
@line 0,62,359,62,255
@line 0,64,359,64,255
@line 0,66,359,66,255
@line 0,68,359,68,255
@line 0,70,359,70,255
@line 0,72,359,72,255
@line 0,74,359,74,255
@line 0,76,359,76,255
@line 0,78,359,78,255
@line 0,80,359,80,255
@line 0,82,359,82,255
@line 0,84,359,84,255
@line 0,86,359,86,255
@line 0,88,359,88,255
@line 0,90,359,90,255
@line 0,92,359,92,255
@line 0,94,359,94,255
@line 0,96,359,96,255
@line 0,98,359,98,255
@line 0,100,359,100,255
@line 0,102,359,102,255
@line 0,104,359,104,255
@line 0,106,359,106,255
@line 0,108,359,108,255
@line 0,110,359,110,255
@line 0,112,359,112,255
@line 0,114,359,114,255
@line 0,116,359,116,255
@line 0,118,359,118,255
@line 0,120,359,120,255
@line 0,122,359,122,255
@line 0,124,359,124,255
@line 0,126,359,126,255
@line 0,128,359,128,255
@line 0,130,359,130,255
@line 0,132,359,132,255
@line 0,134,359,134,255
@line 0,136,359,136,255
@line 0,138,359,138,255
@line 0,140,359,140,255
@line 0,142,359,142,255
@line 0,144,359,144,255
@line 0,146,359,146,255
@line 0,148,359,148,255
@line 0,150,359,150,255
@line 0,152,359,152,255
@line 0,154,359,154,255
@line 0,156,359,156,255
@line 0,158,359,158,255
@line 0,160,359,160,255
@line 0,162,359,162,255
@line 0,164,359,164,255
@line 0,166,359,166,255
@line 0,168,359,168,255
@line 0,170,359,170,255
@line 0,172,359,172,255
@line 0,174,359,174,255
@line 0,176,359,176,255
@line 0,178,359,178,255
@line 0,180,359,180,255
@line 0,182,359,182,255
@line 0,184,359,184,255
@line 0,186,359,186,255
@line 0,188,359,188,255
@line 0,190,359,190,255
@line 0,192,359,192,255
@line 0,194,359,194,255
@line 0,196,359,196,255
@line 0,198,359,198,255
@line 0,200,359,200,255
@line 0,202,359,202,255
@line 0,204,359,204,255
@line 0,206,359,206,255
@line 0,208,359,208,255
@line 0,210,359,210,255
@line 0,212,359,212,255
@line 0,214,359,214,255
@line 0,216,359,216,255
@line 0,218,359,218,255
@line 0,220,359,220,255
@line 0,222,359,222,255
@line 0,224,359,224,255
@line 0,226,359,226,255
@line 0,228,359,228,255
@line 0,230,359,230,255
@line 0,232,359,232,255
@line 0,234,359,234,255
@line 0,236,359,236,255
@line 0,238,359,238,255

-- 6x6[]

6x6grid

6 x 6 Grid

@title 6x6
@line 0, 39, 359, 39, 32
@line 0, 79, 359, 79, 32
@line 0, 119, 359, 119, 32
@line 0, 159, 359, 159, 32
@line 0, 199, 359, 199, 32
@line 59, 0, 59, 239, 32
@line 119, 0, 119, 239, 32
@line 179, 0, 179, 239, 32
@line 239, 0, 239, 239, 32
@line 299, 0, 299, 239, 32

-- 6x6 with Cross-hair[]

6x6grid crosshair

6 x 6 Grid with Cross Hairs

@title 6x6 CrossHair
@line 0, 39, 359, 39, 32
@line 0, 79, 359, 79, 32
@line 0, 119, 175, 119, 3
@line 184, 119, 359, 119, 3
@line 0, 159, 359, 159, 32
@line 0, 199, 359, 199, 32
@line 59, 0, 59, 239, 32
@line 119, 0, 119, 239, 32
@line 179, 0, 179, 115, 3
@line 179, 124, 179, 239, 3
@line 239, 0, 239, 239, 32
@line 299, 0, 299, 239, 32

-- Binocular Mask (novelty)[]

I wanted to play with the elps and elpsf functions to see how they worked. I first tried putting 2 clear circles over a full black rectangle, but it seems the "fill" functions override any previous fill-colors chosen. The clear-filled circles on black made the whole image clear. So instead I went with 2 unfilled circles, and then used 2 transparent filled-circles to try to remove the intersecting arcs between them. Well, it sort of works. :-) As the grid is drawn the filled ellipse shapes momentarily show the intersecting arcs. I even tried the half-tone grid above, putting 2 clear circles over that, that too was interesting, they alternately flash as clear and half-toned. :-)

p.s. I first thought the rx, and ry commands where for the foci of an ellipse, and found out that if you put the ellipse commands out of bounds that it locks up the camera pretty bad. I had to remove the batteries to get it to shut down. And then delete the old ellipse test-file so it wouldn't auto-load and lock up on boot-up.

Anyway, here's a binocular mask for those of you that might ever do a novelty mask for a photo and want to make sure your subject is in the mask's FOV:


Binocular Mask


@title Binocular Mask
@elps  119, 119, 119, 106, 0x05
@elps  239, 119, 119, 106, 0x05
@elpsf 119, 119, 117, 104, 0x00
@elpsf 239, 119, 117, 104, 0x00

Hint: To get a circle look like a circle with the 4:3 / 3:2 offset, just take the X radius and multiply it by 8, then divide that result by 9, to get a proportional/equivalent Y radius.

Anyone want to do the cutesy heart-shape that so many want as a mask over their wedding photos? :-) I suppose it wouldn't be too hard to do. Just make the clear-filled circles for the heart lobes offset to the bottom to erase the bottom half of the circles (like I used them to erase the intersecting arcs in the binoc-mask), and 2 lines for the apex of the heart. Could be done with about 20-30 short line segments too, making a better shape. (I did that to make a golden-curve for the golden-grids one, but it became too messy/cluttered all on the same grid display.)

Image added by --Bafometto 07:42, 30 December 2008 (UTC)


Something that has always bothered me about this "novelty" grid, is how slow it refreshes the EVF/LCD display. Interfering in any Zebra or other OSD display elements when loaded. I guess this is due to how long it takes to compute the circle/ellipse shapes. Well, it was raining today, I was bored, and thought I'd tweak the speed by removing the two transparent circle commands (erasing the opaque-circle's intersecting lines) and replacing it with a easier to compute transparent rectangle just large enough to erase the intersecting lines. The intersecting lines still flicker, but now much faster. :-)

@title Binocular Mask
@elps  119, 119, 119, 106, 0x05
@elps  239, 119, 119, 106, 0x05
@rectf 120,  28, 238, 209, 0x00, 0x00

Granted, this design probably has very limited use, but ... as I said, I was really bored. :-) By doing this the info and method might come in handy for others wanting to design complex grids with circles and ellipses in them that want a faster way to erase partial arcs. Though, I have to admit, it would probably refresh fastest of all if short line-segments were used to define your arcs and curves (as in the golden-spiral grid). I detect none of this draw-delay flickering in any of the more complex grids with many dozens of little straight line-segments. Though it would take a lot longer for the grid designer to convert their curves to those more multitudinous line commands. More time spent by the designer would equate to faster refresh-rates for all. Just another notch to add into the knowledge-base about grids.


-- 10 X 15 Crop[]

10x15crop

10 x 15 Crop

(10cm X 15cm)

@title 10x 15 Crop
@rectf 0, 0, 359, 12, 0x03, 0x03
@rectf 0, 226, 359, 239, 0x03, 0x03


-- Sports Finder[]

I got this idea from one of the Nikon focusing screens. One of the models that allows high-speed burst modes in a reduced resolution, while still showing the larger full-frame size in the viewfinder.

This grid was designed around the available image sizes of an "S3 IS" camera. When shooting in highest resolution of "L", 2816 x 2112 pixels, this grid displays the cropping areas as if you were using the "M1" - 2271 x 1704 pixels, the "M2" - 1600 x 1200 pixels, and the "S" - 640 x 480 pixel image sizes. This way you can view the full-frame in the viewfinder, but plan ahead for cropping to one of the other available resolutions. You can then watch for any activity outside of those image-resolution boundaries and be better able to follow any fast action in your viewfinder that might be entering or leaving the final-crop image area. One more pair of lines was included to show the "W" - 2816 x 1584 wide-angle FOV so when planning to crop for that resolution you can still watch for activity above and below your final image area, instead of just blacking out those areas as the camera normally does.

Sports finder

Suggested Filename: sprtfndr.grd

@Title Sports Finder
@rect  34,  22, 325, 217, 0X72
@rect  78,  51, 282, 188, 0x74
@rect 135,  92, 221, 147, 0x54
@line   0,  29, 359,  29, 0x28
@line   0, 210, 359, 210, 0x28

If other camera-model owners find this idea useful, please feel free to share your sports-finder resolution crops for the available resolution sizes in your camera. It is worth noting, that even a 1600 x 1200 resolution image will still print quite nicely even at 7"x5" print size. So for that little-league game this might be just the thing you need for following the action and still having photos to print out for relatives and friends.

-- Architectural Grid[]

Fashioned after another focusing screen grid found online. The area is divided up into an 10x8 composition (the 2 far side lines), and the 10x8 wide dimension further horizontally into fourths. The top and bottom lines defining a square off of those 4th-divisions. Further a circle was added tangent to the square.

Architect grid

Suggested Filename: architct.grd

@title Architectural
@line   10,  0,  10, 239, 0x05
@line 349,   0, 349, 239, 0x05
@line 179,   0, 179, 239, 0x05
@line   0, 119, 359, 119, 0x05
@line  95,   0,  95, 239, 0x05
@line 263,   0, 263, 239, 0x05
@line   0,  43, 359,  43, 0x05
@line   0, 195, 359, 195, 0x05
@elps 179, 119,  84,  76, 0x07

-- Rulers Grid[]

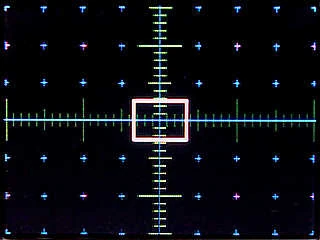

Fashioned after some aerial-photography and photomicrography grids. Horizontal and vertical rulers bisecting your FOV. Divided horizontally in 4 units of measure and vertically in 3 units of measure. With half and 1/10th unit tic-marks. May come in extremely handy for macro-photography when trying to keep the subject size the same in landscape or portrait orientations. Or when comparing subject size to one another when reframing or refocusing. (I like this one so much that I now use it as my default.)

Rulers

Suggested Filename: rulers.grd

@title Rulers

@line   2,  97,   2, 141, 0x05
@line  10, 113,  10, 125, 0x05
@line  19, 113,  19, 125, 0x05
@line  28, 113,  28, 125, 0x05
@line  37, 113,  37, 125, 0x05
@line  46, 108,  46, 130, 0x05
@line  55, 113,  55, 125, 0x05
@line  64, 113,  64, 125, 0x05
@line  73, 113,  73, 125, 0x05
@line  82, 113,  82, 125, 0x05

@line  91,  97,  91, 141, 0x05
@line  99, 113,  99, 125, 0x05
@line 108, 113, 108, 125, 0x05
@line 117, 113, 117, 125, 0x05
@line 126, 113, 126, 125, 0x05
@line 135, 108, 135, 130, 0x05
@line 144, 113, 144, 125, 0x05
@line 153, 113, 153, 125, 0x05
@line 162, 113, 162, 125, 0x05
@line 171, 113, 171, 125, 0x05

@line 187, 113, 187, 125, 0x05
@line 196, 113, 196, 125, 0x05
@line 205, 113, 205, 125, 0x05
@line 214, 113, 214, 125, 0x05
@line 223, 108, 223, 130, 0x05
@line 232, 113, 232, 125, 0x05
@line 241, 113, 241, 125, 0x05
@line 250, 113, 250, 125, 0x05
@line 259, 113, 259, 125, 0x05
@line 268,  97, 268, 141, 0x05

@line 277, 113, 277, 125, 0x05
@line 286, 113, 286, 125, 0x05
@line 295, 113, 295, 125, 0x05
@line 304, 113, 304, 125, 0x05
@line 313, 108, 313, 130, 0x05
@line 322, 113, 322, 125, 0x05
@line 331, 113, 331, 125, 0x05
@line 340, 113, 340, 125, 0x05
@line 349, 113, 349, 125, 0x05
@line 357,  97, 357, 141, 0x05

@line 166,   1, 192,   1, 0x05
@line 172,   9, 186,   9, 0x05
@line 172,  17, 186,  17, 0x05
@line 172,  25, 186,  25, 0x05
@line 172,  33, 186,  33, 0x05

@line 154,  41, 204,  41, 0x05
@line 172,  48, 186,  48, 0x05
@line 172,  56, 186,  56, 0x05
@line 172,  64, 186,  64, 0x05
@line 172,  72, 186,  72, 0x05
@line 166,  80, 192,  80, 0x05
@line 172,  88, 186,  88, 0x05
@line 172,  96, 186,  96, 0x05
@line 172, 104, 186, 104, 0x05
@line 172, 112, 186, 112, 0x05

@line 172, 127, 186, 127, 0x05
@line 172, 135, 186, 135, 0x05
@line 172, 143, 186, 143, 0x05
@line 172, 151, 186, 151, 0x05
@line 166, 159, 192, 159, 0x05
@line 172, 167, 186, 167, 0x05
@line 172, 175, 186, 175, 0x05
@line 172, 183, 186, 183, 0x05
@line 172, 191, 186, 191, 0x05
@line 154, 199, 204, 199, 0x05

@line 172, 207, 186, 207, 0x05
@line 172, 215, 186, 215, 0x05
@line 172, 223, 186, 223, 0x05
@line 172, 231, 186, 231, 0x05
@line 166, 239, 192, 239, 0x05

@line 179,   0, 179, 239, 0x07
@line   0, 119, 359, 119, 0x07

Following is a Ruler's Grid "add-on". I wanted to put little cross-hairs at the half and full unit intersections in the clear areas and at the borders. When all combined it would be a nice grid. But I ran into a snafu. When these cross-hairs lines below, are appended to the ruler tic-marks above, I ran out of memory for them and only about 2/3rds of the cross-hairs get displayed. I might be able to display them all by removing the border cross-hairs. In case you want to do this, they are written in batches of 8 cross-hairs, starting top-left and going to top-right, then down to the next row. But I'll leave the full tic-mark grid here intact in case you want to use it "as-is" as a stand-alone grid file, or to use a subset of them to add into the Ruler Grid above.

Maybe it would work if I got rid of all unneeded spaces and line-feeds? I'll see what happens. (editing time passes) Hey! It works! Throw the two files together in an editor and delete ALL spaces and all double-returns. It only fails to display 3 cross-hairs in the lower-right. So close! ... :) Okay, I got it to work. I changed the HEX color codes for decimal codes too. Seeing as how this takes a decent editor to do this, I'll post the full Rulers + Cross-hairs Grid below.

@title Rulers Crosshairs

@line   2,   1,   7,   1, 0x27
@line   2,   1,   2,   7, 0x27
@line  41,   1,  51,   1, 0x27
@line  46,   1,  46,   7, 0x27
@line  86,   1,  96,   1, 0x27
@line  91,   1,  91,   7, 0x27
@line 130,   1, 140,   1, 0x27
@line 135,   1, 135,   7, 0x27

@line 219,   1, 228,   1, 0x27
@line 224,   1, 224,   7, 0x27
@line 263,   1, 273,   1, 0x27
@line 268,   1, 268,   7, 0x27
@line 308,   1, 318,   1, 0x27
@line 313,   1, 313,   7, 0x27
@line 352,   1, 357,   1, 0x27
@line 357,   1, 357,   7, 0x27


@line   2,  41,   7,  41, 0x29
@line   2,  36,   2,  47, 0x29
@line  41,  41,  51,  41, 0x27
@line  46,  36,  46,  47, 0x27
@line  86,  41,  96,  41, 0x29
@line  91,  36,  91,  47, 0x29
@line 130,  41, 140,  41, 0x27
@line 135,  36, 135,  47, 0x27

@line 219,  41, 229,  41, 0x27
@line 224,  36, 224,  47, 0x27
@line 263,  41, 273,  41, 0x29
@line 268,  36, 268,  47, 0x29
@line 308,  41, 318,  41, 0x27
@line 313,  36, 313,  47, 0x27
@line 352,  41, 357,  41, 0x29
@line 357,  36, 357,  47, 0x29


@line   2,  80,   7,  80, 0x27
@line   2,  75,   2,  85, 0x27
@line  41,  80,  51,  80, 0x27
@line  46,  75,  46,  85, 0x27
@line  86,  80,  96,  80, 0x27
@line  91,  75,  91,  85, 0x27
@line 130,  80, 140,  80, 0x27
@line 135,  75, 135,  85, 0x27

@line 219,  80, 229,  80, 0x27
@line 224,  75, 224,  85, 0x27
@line 263,  80, 273,  80, 0x27
@line 268,  75, 268,  85, 0x27
@line 308,  80, 318,  80, 0x27
@line 313,  75, 313,  85, 0x27
@line 352,  80, 357,  80, 0x27
@line 357,  75, 357,  85, 0x27


@line   2, 159,   7, 159, 0x27
@line   2, 154,   2, 164, 0x27
@line  41, 159,  51, 159, 0x27
@line  46, 154,  46, 164, 0x27
@line  86, 159,  96, 159, 0x27
@line  91, 154,  91, 164, 0x27
@line 130, 159, 140, 159, 0x27
@line 135, 154, 135, 164, 0x27

@line 219, 159, 229, 159, 0x27
@line 224, 154, 224, 164, 0x27
@line 263, 159, 273, 159, 0x27
@line 268, 154, 268, 164, 0x27
@line 308, 159, 318, 159, 0x27
@line 313, 154, 313, 164, 0x27
@line 352, 159, 357, 159, 0x27
@line 357, 154, 357, 164, 0x27


@line   2, 199,   7, 199, 0x29
@line   2, 194,   2, 204, 0x29
@line  41, 199,  51, 199, 0x27
@line  46, 194,  46, 204, 0x27
@line  86, 199,  96, 199, 0x29
@line  91, 194,  91, 204, 0x29
@line 130, 199, 140, 199, 0x27
@line 135, 194, 135, 204, 0x27

@line 219, 199, 229, 199, 0x27
@line 224, 194, 224, 204, 0x27
@line 263, 199, 273, 199, 0x29
@line 268, 194, 268, 204, 0x29
@line 308, 199, 318, 199, 0x27
@line 313, 194, 313, 204, 0x27
@line 352, 199, 357, 199, 0x29
@line 357, 194, 357, 204, 0x29


@line   2, 239,   7, 239, 0x27
@line   2, 233,   2, 239, 0x27
@line  41, 239,  51, 239, 0x27
@line  46, 233,  46, 239, 0x27
@line  86, 239,  96, 239, 0x27
@line  91, 233,  91, 239, 0x27
@line 130, 239, 140, 239, 0x27
@line 135, 233, 135, 239, 0x27

@line 219, 239, 229, 239, 0x27
@line 224, 233, 224, 239, 0x27
@line 263, 239, 273, 239, 0x27
@line 268, 233, 268, 239, 0x27
@line 308, 239, 318, 239, 0x27
@line 313, 233, 313, 239, 0x27
@line 352, 239, 357, 239, 0x27
@line 357, 233, 357, 239, 0x27

-- Rulers + Cross-hairs Grid[]

(See grid info above for reason for this concatenated grid file.)

Update 1: The cross-hairs were reduced to 3/5ths their size in this file. The larger sizes above (in the original format) were too obtrusive, I thought.

Update 2: The colors weren't to my final liking. The rulers are now marked off in transparent green and the cross-hairs are in transparent blue, with transparent purple for the 1-unit intersections. These colors were chosen on the S3 IS camera, your camera's colors may vary. If you need to edit them the final value on each line is: 5 = transparent green, 7 = transparent blue, 39 = transparent purple. Or you can always use the OSD Parameters > Grid Settings > Override Grid Colors > Line Color options to change them as needed without any editing. (Note, this override will change all line colors to this setting, rulers and cross-hairs included.)

Ruler plus tics

@title Rules & Cross-hairs
@line2,97,2,141,5
@line10,113,10,125,5
@line19,113,19,125,5
@line28,113,28,125,5
@line37,113,37,125,5
@line46,108,46,130,5
@line55,113,55,125,5
@line64,113,64,125,5
@line73,113,73,125,5
@line82,113,82,125,5
@line91,97,91,141,5
@line99,113,99,125,5
@line108,113,108,125,5
@line117,113,117,125,5
@line126,113,126,125,5
@line135,108,135,130,5
@line144,113,144,125,5
@line153,113,153,125,5
@line162,113,162,125,5
@line171,113,171,125,5
@line187,113,187,125,5
@line196,113,196,125,5
@line205,113,205,125,5
@line214,113,214,125,5
@line223,108,223,130,5
@line232,113,232,125,5
@line241,113,241,125,5
@line250,113,250,125,5
@line259,113,259,125,5
@line268,97,268,141,5
@line277,113,277,125,5
@line286,113,286,125,5
@line295,113,295,125,5
@line304,113,304,125,5
@line313,108,313,130,5
@line322,113,322,125,5
@line331,113,331,125,5
@line340,113,340,125,5
@line349,113,349,125,5
@line357,97,357,141,5
@line166,1,192,1,5
@line172,9,186,9,5
@line172,17,186,17,5
@line172,25,186,25,5
@line172,33,186,33,5
@line154,41,204,41,5
@line172,48,186,48,5
@line172,56,186,56,5
@line172,64,186,64,5
@line172,72,186,72,5
@line166,80,192,80,5
@line172,88,186,88,5
@line172,96,186,96,5
@line172,104,186,104,5
@line172,112,186,112,5
@line172,127,186,127,5
@line172,135,186,135,5
@line172,143,186,143,5
@line172,151,186,151,5
@line166,159,192,159,5
@line172,167,186,167,5
@line172,175,186,175,5
@line172,183,186,183,5
@line172,191,186,191,5
@line154,199,204,199,5
@line172,207,186,207,5
@line172,215,186,215,5
@line172,223,186,223,5
@line172,231,186,231,5
@line166,239,192,239,5
@line179,0,179,239,7
@line0,119,359,119,7
@line2,1,5,1,7
@line2,1,2,5,7
@line43,1,49,1,7
@line46,1,46,5,7
@line88,1,94,1,7
@line91,1,91,5,7
@line132,1,138,1,7
@line135,1,135,5,7
@line221,1,227,1,7
@line224,1,224,5,7
@line265,1,271,1,7
@line268,1,268,5,7
@line310,1,316,1,7
@line313,1,313,5,7
@line354,1,357,1,7
@line357,1,357,5,7
@line2,41,5,41,,39
@line2,38,2,45,39
@line43,41,49,41,7
@line46,38,46,45,7
@line88,41,94,41,39
@line91,38,91,45,39
@line132,41,138,41,7
@line135,38,135,45,7
@line221,41,227,41,7
@line224,38,224,45,7
@line265,41,271,41,39
@line268,38,268,45,39
@line310,41,316,41,7
@line313,38,313,45,7
@line354,41,357,41,39
@line357,38,357,45,39
@line2,80,5,80,7
@line2,77,2,83,7
@line43,80,49,80,7
@line46,77,46,83,7
@line88,80,94,80,7
@line91,77,91,83,7
@line132,80,138,80,7
@line135,77,135,83,7
@line221,80,227,80,7
@line224,77,224,83,7
@line265,80,271,80,7
@line268,77,268,83,7
@line310,80,316,80,7
@line313,77,313,83,7
@line354,80,357,80,7
@line357,77,357,83,7
@line2,159,5,159,7
@line2,156,2,162,7
@line43,159,49,159,7
@line46,156,46,162,7
@line88,159,94,159,7
@line91,156,91,162,7
@line132,159,138,159,7
@line135,156,135,162,7
@line221,159,227,159,7
@line224,156,224,162,7
@line265,159,271,159,7
@line268,156,268,162,7
@line310,159,316,159,7
@line313,156,313,162,7
@line354,159,357,159,7
@line357,156,357,162,7
@line2,199,5,199,39
@line2,196,2,202,39
@line43,199,49,199,7
@line46,196,46,202,7
@line88,199,94,199,39
@line91,196,91,202,39
@line132,199,138,199,7
@line135,196,135,202,7
@line221,199,227,199,7
@line224,196,224,202,7
@line265,199,271,199,39
@line268,196,268,202,39
@line310,199,316,199,7
@line313,196,313,202,7
@line354,199,357,199,39
@line357,196,357,202,39
@line2,239,5,239,7
@line2,235,2,239,7
@line43,239,49,239,7
@line46,235,46,239,7
@line88,239,94,239,7
@line91,235,91,239,7
@line132,239,138,239,7
@line135,235,135,239,7
@line221,239,227,239,7
@line224,235,224,239,7
@line265,239,271,239,7
@line268,235,268,239,7
@line310,239,316,239,7
@line313,235,313,239,7
@line354,239,357,239,7
@line357,235,357,239,7

-- Authorized-Use Only[]

Have you ever been at some gathering where people think it's okay to just pick up your camera to fire off some photos or just play with it to see through the lens? Or do you fear your camera will be stolen and the thief will benefit greatly from his act? I just got the idea that a little grid file might be just the thing needed. All this does is black out your viewfinder. Making it look like your camera is busted. With other OSD elements displayed, like histogram, it will flash the histogram between being blacked out. Still looking like your camera is trashed. Only someone familiar with the menus and workings of CHDK will be able to figure out what's going on. All you have to do is disable the OSD display with the short-cut keys or load another grid when you're ready to use your camera again.

Next time you are around a bunch of people that aren't respectful enough to "Ask first!", load up this little grid file before setting down your camera. See if it helps. :)

Suggested filename: auth_use.grd

@title Authorized Use
@rectf 0,0,359,239,0xFF,0xFF

You of course could expound on this by using other graphic commands to also print out a nasty message. :) Or maybe even your name and address when traveling. The first time a thief boots it up that's all they'd see and not know how to get rid of it. It might eventually fall into the hands of someone that would return it.

(Suggested traveler's Grid: Black screen with, "This camera is STOLEN! Return to ..." It would take some work to do all that text with the grid commands, but it could be done. Does anyone have a simple utility to convert text to graphics commands?)

Come to think of it, this would be an excellent feature built into any camera. You can only unlock its use with your personalized key-sequence. Camera makers should incorporate this. Anyone that gets a camera with "STOLEN CAMERA" in the display will know they are buying tainted goods.

Update:

DataGhost just recently wrote a wonderful little utility for Grid designers. It takes any text and converts it to grid commands. There is a limit to just how much text you can input, but it works great! I don't know if he'll release the link to that online utility or not for public use, I hope so. Then you'll be able to write your own message on your grids. (I want to now use it to include small ratio reminders on some of the multi-ratio grids.)

Anyway, here's an updated "Authorised-Use ONLY!" grid file that prints the words "STOLEN CAMERA!" on your display, white words on a blacked-out background.

Stolen

@title STOLEN CAMERA!
@rectf0,0,359,239,255,255
@line110,104,110,106,17
@line110,111,111,111,17
@line111,103,116,103,17
@line111,104,111,107,17
@line111,112,116,112,17
@line112,107,116,107,17
@line116,104,117,104,17
@line116,108,116,112,17
@line117,108,117,111,17
@line119,103,126,103,17
@line122,104,122,112,17
@line123,104,123,112,17
@line128,105,128,110,17
@line129,104,129,111,17
@line130,103,133,103,17
@line130,104,130,104,17
@line130,111,130,112,17
@line131,112,133,112,17
@line133,104,134,104,17
@line133,111,134,111,17
@line134,105,134,111,17
@line135,105,135,110,17
@line137,103,137,112,17
@line138,103,138,112,17
@line139,112,143,112,17
@line146,103,146,112,17
@line147,103,147,112,17
@line148,103,152,103,17
@line148,107,151,107,17
@line148,112,152,112,17
@line155,103,155,112,17
@line156,103,156,112,17
@line157,104,157,106,17
@line158,105,158,108,17
@line159,107,159,109,17
@line160,109,162,109,17
@line160,110,162,110,17
@line160,111,162,111,17
@line161,103,161,112,17
@line162,103,162,112,17
@line173,105,173,110,17
@line174,104,174,111,17
@line175,103,179,103,17
@line175,104,175,104,17
@line175,111,175,112,17
@line176,112,179,112,17
@line179,104,180,104,17
@line179,111,180,111,17
@line180,105,180,105,17
@line180,110,180,111,17
@line182,106,182,112,17
@line183,105,183,112,17
@line184,104,187,104,17
@line184,105,184,105,17
@line184,109,189,109,17
@line185,103,186,103,17
@line187,105,188,105,17
@line188,106,188,112,17
@line189,106,189,112,17
@line191,103,191,112,17
@line192,103,192,112,17
@line193,104,193,105,17
@line194,105,198,105,17
@line194,106,194,108,17
@line195,106,195,108,17
@line196,104,198,104,17
@line197,103,197,112,17
@line198,103,198,112,17
@line200,103,200,112,17
@line201,103,201,112,17
@line202,103,206,103,17
@line202,107,205,107,17
@line202,112,206,112,17
@line209,103,209,112,17
@line210,103,210,112,17
@line211,103,215,103,17
@line211,107,215,107,17
@line211,108,213,108,17
@line213,109,214,109,17
@line214,110,215,110,17
@line215,104,215,107,17
@line215,111,216,111,17
@line215,112,216,112,17
@line216,104,216,106,17
@line218,106,218,112,17
@line219,105,219,112,17
@line220,104,223,104,17
@line220,105,220,105,17
@line220,109,225,109,17
@line221,103,222,103,17
@line223,105,224,105,17
@line224,106,224,112,17
@line225,106,225,112,17
@line230,103,230,110,17
@line230,112,231,112,17
@line231,103,231,110,17

-- Identity photo format[]

This grid is based on ISO/IEC 19794-5:2005[1] values required for administrative identity photo (passports, identity cards, driving licence...). A large red face shape represent the maximal size accepted, whereas the smaller green shape is the minimal sized allowed. A grey area represent where eyes have to be. A vertical axe and two horizontal rulers should help for positioning the subject. The picture has afterwhat to be resized to 35 x 45 mm before beeing printed. The best is to make a composition of 6 (2 lines, 3 rows) photo on a 10 x 13 cm format or 8 (2 lines, 4 rows) photo on a 10x15 format. It is to be noticed that the reprint should be done by a professional, not by your personnal printer...otherwise it might be refused by the administration staff.

--SuperManu 07:47, 23 April 2008 (UTC)


Identity photo format


@title Photo ID (ISO/IEC 19794-5:2005)
#By SuperManu

#largest face
@elps 176, 119, 144, 76, 0x22
@elps 176, 119, 143, 75, 0x22
#smallest face
@elps 176, 119, 128, 76, 0x55
@elps 176, 119, 127, 75, 0x55

#eyes area
@rectf 96, 40, 176, 200, 0x44, 0x44
#eye logo
@elps 136, 215, 5, 12, 0xDD
@elps 136, 215, 4, 4, 0xDD
@elpsf 136, 215, 3, 3, 0xDD, 0xDD

#axes
@line 0, 119, 359, 119, 0xFF
@line 32, 0, 32, 239, 0xFF
@line 320, 0, 320, 239, 0xFF

#body shape
@line 272, 68, 359, 0, 0xFF
@line 272, 171, 359, 239, 0xFF

Image added by --Bafometto 06:58, 30 December 2008 (UTC)


-- Diagonal Method[]

This grid is based on the work made by Edwin Westhoff on his Diagonal Method. I really encourage you to read everything there... his findings are amazing!!!

The diagonal lines are adjusted properly to correlate the difference between the photograph aspect (4:3) to the EVF/LCD (3:2).

Diagonal Method

@title  Diagonal Method
@line 0,0, 269,239, 26
@line 0,239, 269,0, 26
@line 90,0, 359,239, 26
@line 90,239, 359,0, 26

Added by Marcelo.espinosa 03:22, 12 July 2008 (UTC)
Better version by 64.61.221.26 05:18, 18 July 2008 (UTC)


-- 1/3 Full + Strong Points[]

This grid is the classical and must have "rule of thirds" in its full version (horizontal & vertical lines in red) including the five so called "strong points" (in yellow).


1/3 Full + Strong Points


@title 1/3 Full + Strong Points

# 1st. 1/3 Horizontal Line
@line   0,  79, 359,  79, 0x22
# 2nd. 1/3 Horizontal Line
@line   0, 159, 359, 159, 0x22

# 1st. 1/3 Vertical Line
@line 119,   0, 119, 239, 0x22
# 2nd. 1/3 Vertical Line
@line 239,   0, 239, 239, 0x22

# Strong Points (1st. = center)
@elps 179, 119,   8,   8, 0xEE

@elps 119,  79,   8,   8, 0xEE
@elps 239,  79,   8,   8, 0xEE
@elps 119, 159,   8,   8, 0xEE
@elps 239, 159,   8,   8, 0xEE

--Bafometto 02:45, 28 December 2008 (UTC)


-- earth[]

How earth was created.

I needed a little work to understand how grids functioning. At first I was looking for a picture on the Internet and brought it down to size 240 x 360. From this I have determined the coordinates for the lines and ellipses. I have also tried to convert the equator and the tropics and the polar circles halfway real.

But a test in my IXUS 850 IS did not showed all. Version 1 did not work. I went to troubleshooting, and soon found the cause. The .GRD files can not be larger than 3886 bytes. This is a problem.

So I had to start saving. As a first thought all unnecessary lines and comments were deleted. Unfortunately this was not enough. My second thought were blanks and tabs. A test showed me that these were not necessary. The colors in hexadecimal were too long. These were then converted to decimal. How a test turned out it is not possible to shorten the commands. There was more necessary. The carriage return! That was a possibility. A quick test showed me the Windows CRLF line break was not necessary. The Linux-LF line break was enough. Without them there was no way. It took me even more. Again the colors. I now use only colors from the range of decimal single digits. Again, a small saving. The savings will now be set to maximum. That's all I think what is possible.

Finally earth is too big to use as grid. Seek out of the entire portfolio what you need and have fun with it!


--SMD (http://www.southern-africa.de)

Short version - only a few lines:

@line0,31,359,31,7
@line0,89,359,89,6
@line0,119,359,119,2
@line0,120,359,120,2
@line0,151,359,151,6
@line0,209,359,209,7
@line0,224,54,218,5
@line78,220,54,217,5
@line78,219,76,215,5

Full version:

@title	Earth
#	created by SMD 2012/02/20

#	Equator+
@line	0,	31,	359,	31,	0xDD
@line	0,	89,	359,	89,	0xEE
@line	0,	119,	359,	119,	0x22
@line	0,	120,	359,	120,	0x22
@line	0,	151,	359,	151,	0xEE
@line	0,	209,	359,	209,	0xDD

#	Antarctica
@line	0,	224,	54,	218,	0x55
@line	78,	220,	54,	217,	0x55
@line	78,	219,	76,	215,	0x55
@line	103,	216,	77,	215,	0x55
@line	104,	215,	119,	204,	0x55
@line	118,	220,	120,	204,	0x55
@line	119,	220,	144,	223,	0x55
@line	169,	213,	145,	223,	0x55
@line	170,	213,	213,	211,	0x55
@line	218,	213,	214,	210,	0x55
@line	219,	212,	234,	206,	0x55
@line	257,	212,	235,	206,	0x55
@line	258,	211,	263,	206,	0x55
@line	323,	208,	263,	207,	0x55
@line	323,	209,	351,	215,	0x55
@line	342,	221,	351,	216,	0x55
@line	343,	222,	359,	224,	0x55

#	Islands
@elps	156,	33,	5,	2,	0x55
@elps	88,	121,	1,	1,	0x55
@elps	142,	192,	1,	1,	0x55
@elps	120,	189,	2,	1,	0x55
@elps	248,	185,	1,	1,	0x55
@elps	22,	92,	2,	1,	0x55

#	North	America
@line	0,	26,	11,	30,	0x55
@line	11,	30,	21,	24,	0x55
@line	21,	24,	61,	27,	0x55
@line	53,	22,	61,	27,	0x55
@line	53,	22,	58,	16,	0x55
@line	58,	16,	98,	8,	0x55
@line	98,	8,	169,	9,	0x55
@line	159,	16,	169,	9,	0x55
@line	160,	17,	157,	27,	0x55
@line	140,	33,	156,	28,	0x55
@line	135,	40,	140,	33,	0x55
@line	126,	32,	134,	40,	0x55
@line	126,	32,	121,	18,	0x55
@line	106,	16,	121,	19,	0x55
@line	100,	18,	120,	9,	0x55
@line	118,	31,	99,	19,	0x55
@line	117,	32,	113,	41,	0x55
@line	116,	38,	128,	57,	0x55
@line	112,	53,	127,	58,	0x55
@line	106,	66,	120,	59,	0x55
@line	113,	54,	119,	59,	0x55
@line	106,	66,	99,	78,	0x55
@line	100,	87,	99,	79,	0x55
@line	100,	88,	114,	95,	0x55
@line	95,	90,	114,	96,	0x55
@line	95,	89,	99,	89,	0x55
@line	95,	80,	99,	88,	0x55
@line	94,	80,	82,	82,	0x55
@line	84,	95,	82,	83,	0x55
@line	85,	95,	92,	90,	0x55
@line	91,	99,	92,	91,	0x55
@line	92,	99,	97,	98,	0x55
@line	96,	99,	96,	107,	0x55
@line	103,	107,	97,	106,	0x55
@line	73,	93,	56,	68,	0x55
@line	74,	94,	103,	112,	0x55
@line	55,	68,	55,	55,	0x55
@line	41,	41,	55,	55,	0x55
@line	40,	40,	26,	40,	0x55
@line	28,	45,	25,	41,	0x55
@line	13,	39,	26,	44,	0x55
@line	12,	30,	14,	38,	0x55
@line	8,	34,	10,	30,	0x55
@line	0,	32,	8,	35,	0x55
@line	85,	39,	100,	50,	0x55
@line	101,	36,	101,	51,	0x55
@line	103,	34,	113,	40,	0x55
@line	101,	35,	106,	28,	0x55
@line	86,	39,	91,	34,	0x55
@line	92,	34,	100,	36,	0x55
@line	82,	27,	58,	18,	0x55
@line	76,	21,	73,	14,	0x55
@line	93,	28,	79,	13,	0x55
@line	98,	27,	105,	29,	0x55
@line	97,	34,	99,	28,	0x55
@line	122,	52,	120,	55,	0x55
@line	18,	34,	13,	35,	0x55
@line	18,	32,	13,	29,	0x55
@elps	79,	49,	2,	1,	0x55
@elps	57,	32,	2,	1,	0x55
@elps	64,	38,	2,	1,	0x55
@elps	90,	57,	2,	3,	0x55
@elps	97,	61,	3,	2,	0x55

#	South	America
@line	97,	124,	102,	112,	0x55
@line	97,	125,	109,	146,	0x55
@line	104,	191,	109,	147,	0x55
@line	113,	194,	105,	191,	0x55
@line	111,	188,	114,	194,	0x55
@line	111,	187,	118,	171,	0x55
@line	119,	171,	122,	171,	0x55
@line	123,	170,	134,	150,	0x55
@line	135,	150,	139,	150,	0x55
@line	145,	127,	139,	149,	0x55
@line	144,	127,	131,	120,	0x55
@line	126,	111,	131,	119,	0x55
@line	125,	111,	108,	102,	0x55
@line	104,	107,	108,	103,	0x55
@line	119,	163,	124,	168,	0x55

#	Africa
@line	163,	102,	171,	114,	0x55
@line	163,	101,	163,	88,	0x55
@line	174,	71,	164,	87,	0x55
@line	175,	72,	190,	70,	0x55
@line	191,	75,	191,	71,	0x55
@line	192,	75,	200,	80,	0x55
@line	201,	75,	199,	79,	0x55
@line	202,	76,	213,	80,	0x55
@line	220,	100,	213,	81,	0x55
@line	221,	101,	224,	105,	0x55
@line	231,	103,	225,	105,	0x55
@line	227,	116,	231,	104,	0x55
@line	226,	116,	219,	125,	0x55
@line	221,	141,	218,	126,	0x55
@line	220,	141,	215,	145,	0x55
@line	215,	146,	215,	153,	0x55
@line	207,	165,	214,	153,	0x55
@line	200,	166,	206,	165,	0x55
@line	191,	142,	199,	165,	0x55
@line	191,	141,	193,	133,	0x55
@line	188,	118,	193,	132,	0x55
@line	189,	117,	183,	111,	0x55
@line	172,	114,	182,	111,	0x55
@line	230,	136,	226,	153,	0x55
@line	223,	143,	229,	137,	0x55
@line	224,	144,	223,	153,	0x55
@line	224,	154,	226,	153,	0x55
@line	209,	125,	210,	131,	0x55
@line	206,	142,	213,	140,	0x55
@line	214,	134,	214,	138,	0x55
@line	214,	141,	216,	143,	0x55
@elps	212,	121,	1,	2,	0x55

#	Eurasia
@line	214,	81,	223,	98,	0x55
@line	223,	103,	223,	99,	0x55
@line	224,	103,	232,	98,	0x55
@line	233,	98,	240,	90,	0x55
@line	231,	86,	240,	89,	0x55
@line	231,	85,	228,	79,	0x55
@line	237,	86,	229,	79,	0x55
@line	238,	86,	247,	86,	0x55
@line	260,	112,	247,	87,	0x55
@line	261,	111,	260,	98,	0x55
@line	270,	90,	261,	98,	0x55
@line	271,	91,	285,	108,	0x55
@line	289,	101,	286,	107,	0x55
@line	290,	100,	286,	94,	0x55
@line	302,	80,	287,	94,	0x55
@line	302,	79,	298,	68,	0x55
@line	302,	66,	299,	67,	0x55
@line	303,	67,	308,	73,	0x55
@line	308,	66,	309,	73,	0x55
@line	309,	65,	323,	53,	0x55
@line	323,	52,	316,	47,	0x55
@line	322,	40,	316,	46,	0x55
@line	323,	41,	343,	36,	0x55
@line	336,	43,	343,	37,	0x55
@line	335,	44,	336,	52,	0x55
@line	343,	41,	337,	51,	0x55
@line	344,	40,	359,	34,	0x55
@line	294,	22,	359,	26,	0x55
@line	293,	21,	293,	17,	0x55
@line	248,	22,	292,	16,	0x55
@line	247,	23,	246,	27,	0x55
@line	221,	31,	245,	26,	0x55
@line	221,	30,	208,	24,	0x55
@line	196,	27,	207,	24,	0x55
@line	196,	28,	186,	37,	0x55
@line	185,	37,	185,	42,	0x55
@line	186,	42,	190,	41,	0x55
@line	191,	41,	193,	46,	0x55
@line	199,	40,	194,	45,	0x55
@line	198,	39,	197,	37,	0x55
@line	198,	37,	204,	31,	0x55
@line	201,	36,	204,	32,	0x55
@line	201,	37,	200,	47,	0x55
@line	185,	48,	199,	47,	0x55
@line	189,	44,	189,	47,	0x55
@line	201,	41,	216,	37,	0x55
@line	185,	49,	176,	55,	0x55
@line	178,	61,	176,	56,	0x55
@line	221,	31,	215,	33,	0x55
@line	251,	31,	256,	22,	0x55
@line	290,	46,	285,	51,	0x55
@line	177,	61,	171,	61,	0x55
@line	170,	62,	170,	70,	0x55
@line	180,	69,	171,	71,	0x55
@line	180,	68,	180,	66,	0x55
@line	189,	60,	181,	65,	0x55
@line	190,	61,	196,	68,	0x55
@line	198,	65,	195,	71,	0x55
@line	197,	66,	192,	60,	0x55
@line	199,	63,	193,	59,	0x55
@line	199,	64,	202,	71,	0x55
@line	204,	65,	203,	70,	0x55
@line	205,	65,	208,	71,	0x55
@line	215,	71,	209,	71,	0x55
@line	215,	72,	214,	78,	0x55
@line	209,	78,	213,	78,	0x55
@line	175,	41,	181,	51,	0x55
@line	174,	42,	176,	52,	0x55
@line	181,	51,	175,	51,	0x55
@line	259,	22,	263,	26,	0x55
@line	310,	75,	321,	69,	0x55
@line	310,	76,	321,	70,	0x55
@line	322,	49,	320,	69,	0x55
@line	322,	59,	321,	69,	0x55
@elps	170,	48,	2,	2,	0x55
@elps	228,	65,	3,	7,	0x55
@elps	239,	59,	1,	2,	0x55
@elps	208,	62,	6,	4,	0x55

#	Australia
@line	293,	149,	296,	168,	0x55
@line	310,	162,	297,	167,	0x55
@line	311,	162,	321,	170,	0x55
@line	330,	170,	321,	171,	0x55
@line	330,	169,	334,	153,	0x55
@line	333,	153,	327,	145,	0x55
@line	322,	133,	326,	145,	0x55
@line	321,	133,	321,	144,	0x55
@line	315,	139,	320,	143,	0x55
@line	315,	138,	317,	136,	0x55
@line	310,	135,	316,	135,	0x55
@line	294,	148,	310,	136,	0x55
@line	347,	182,	358,	170,	0x55
@line	346,	181,	357,	169,	0x55
@line	353,	165,	356,	174,	0x55
@elps	326,	176,	3,	2,	0x55

-- Download[]

If you need ALL these grids (not only mine) fast, download my zipped grid folder:

(http://down.newsealand.de/chdk/grids1.zip) 24.551 bytes

--SMD, 2012/02/20


Hint: Remember - Always you can turn on/turn off any Grid by press "Shoot Button" to Half and "Right Arrow"

Advertisement
