PowerShot G9 Edit

Notice

CHDK is available for the Powershot G9 with firmware version 1.00D, 1.00F, 1.00G, 1.00H and 1.00I from the Download page


20070820 loRes g9 front

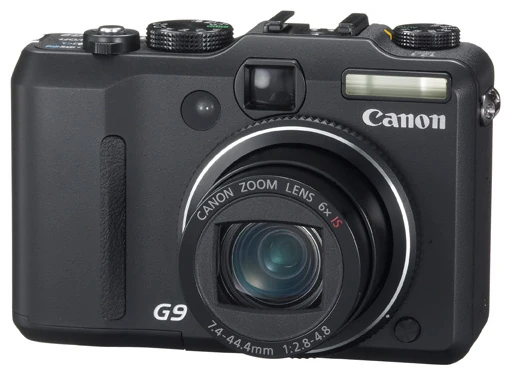

Powershot G9 Front

20070820 loRes g9 back

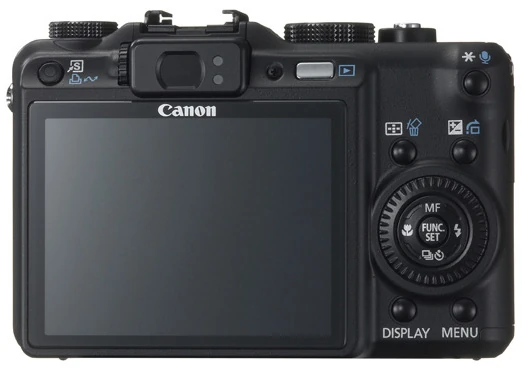

Powershot G9 Back

Reviews and Specifications Edit

Technical Data Edit

  • Digic III image processor
  • DryOS operating system
  • Sensor: 12.1 million effective pixels, 1/1.7 inch CCD type (max. image size: 4000 x 3000)
  • Lens: 35-210mm (35mm equiv), 6x optical zoom, F2.8-4.8
  • Display: 3.0 inch LCD, 230,000 pixels
  • Storage: SD / SDHC / MMC card compatible
  • Real-image zoom viewfinder
  • Power: rechargeable Li-ion battery NB-2LH/NB-2L
  • Dimensions: 106.4 x 71.9 x 42.5 mm (4.2 x 2.8 x 1.7 in), Weight: 320 g (11.3 oz) (without batteries)

Firmware info Edit

As in other Canon PS case, the ver.req file works as well in this model. Press FUNCSET and DISP simultaneously: It shows the following:

Canon PowerShot G9
P-ID:315A  PAL D

Firmware Ver GM1.00D
NoError
Jul 23 2007    08:05:13

subsequent press of DISP (while still holding FUNCSET) reveals:

Adj Ver.008.005
IS Firm Ver.  3.00
IS Param Ver.  2.03

If you use vers.req instead of ver.req at the last screen you can see more info:

Total Shoot  : 26    <=- variating
Open Shutter :  0
Close Shutter:  0

If you power on in PLAY mode without ver.req on the SD card and press the FUNCSET and DISP buttons simultaneously, the screen shows:

Firmware Ver. 1.0.0.0

    [ OK ]

CHDK specialitiesEdit

  • CHDK DNG is not supported EDIT - (2010 12 28) DNG support for the G9 added
  • Mute while zooming is not supported
  • Extra long exposure ( > 2000 sec) is supported
  • Focusing during HiRes video does not work (FW 0.9.9+), camera shuts down

For developersEdit

Firmware Update Menu Item Edit

Create a file called PS.FI2 on the root of the SD card, power the G9 on in Play mode, and press the menu button.

The menu now shows an extra option:

Firm Update...

LED memory addressesEdit

LED_PWR   0xC0220068
LED_BLUE  0xC022006C
LED_AF    0xC0220094 (Same as G7)
LED_ISO   0xC02200B0

LED scan results: between 0xC0220060 and 0xC02200FF

Led turned ON and OFF in the following order and time:

 7 sec Power LED
 8 sec Blue LED
36 sec AF LED
53 sec ISO LED

How to dump the G9 firmwareEdit

To run the blinker you must have bootable SD card with diskboot.bin AF beam Blue led ISO Led

Step by step instructions for dump

or

Put this G9_dumper on a bootable SD card for a complete 8MB dump of your G9.

Firmware dumpsEdit

Firmware G9 1.00C (udumper with MIN_ADDRESS 0xFF700000 and size to 8mb - created by bluesceada) CHDK for Version 1.00D does not work, it just turns on the blue light and then the camera is dead until removing the battery

Firmware G9 1.00D (from 0xFF810000 created by Titan_G9), G9 1.00D (by reyalP)

Firmware G9 1.00F (Dumped by bingo_bongo, partial 4MB dump)

Firmware G9 1.00G (0xFF800000-0xFFFFFFFF by pgm, complete 8MB dump)

Firmware G9 1.00H (from 0xFF810000 by jeff666)

Firmware G9 1.00I (complete 8MB dump, 0x10000 zeros at the beginning, by andrewm)

→ This 100i dump seems to be incomplete (Forum link) Fe50 11:34, 14 March 2009 (UTC)

Firmware G9 1.00I (by ewavr, used for porting the 100i)

Please place other G9 firmware versions to here.

Saveas64

Download location for firmware dumps:
P&S firmware dumps mirror

PortingEdit


Official Firmware UpdatesEdit

There is an official firmware update by canon, that isnt really official, but at least its by canon...

It adresses problems with Hi Res Video mode Manual Focus. It updates the camera to 1.00i.

Attention

PLEASE READ THIS CAREFULLY !
This is a real, permanent firmware update - once applied, it can't be removed, a downgrade back to the previous version is not possible !
Do it at your own risk, the warranty may be void !

See here for further details, warnings, and a download link

Note about the different Firmwares Edit

Cameras with the 1.00f firmware can/must use the CHDK version for 1.00g - the autobuild already just copies this, so when you have a 1.00f cam you will find YOUR version in the autobuild. Development is happening in the 1.00g tree, then compiled and just renamed for the 1.00f people.
