Thanks to the Authors
Many thanks go to all the contributing writers over the past few years, please see Acknowledgements at bottom of this page

CHDK User Manual
CHDKLOGOFULLLogo by cosmograph.



CHDK is experimental.! CHDK comes with no warranty for any use; you use it at your own risk.

Before downloading and using the CHDK software, careful consideration should be given to the following,-
Usually the first question to arise is, can CHDK damage your camera ?,
And the short answer is - It is unlikely, but theoretically possible. CHDK is created by reverse engineering an undocumented system that directly controls hardware. Because of this, it is impossible to be certain that it is completely safe.
And the long answer is - It is very unlikely that CHDK will permanently harm your camera. There have been no reports of CHDK damaging a camera, and both the original firmware and the CHDK developers do their best to avoid situations where this could happen. There are at least two ways in which CHDK could theoretically do damage:- 1) By commanding physical hardware to do something it was not designed to do. For example, it is possible to command the lens hardware to move when the lens is closed. It is also possible to move lens hardware beyond limits allowed by Canons firmware, using scripts, or overrides. See UBASIC/ Scripts:_Tele-Macro-Mode and Talk:UBASIC/Scripts#Tele-Super-Macro_Mode_Comments. 2) By overwriting the internal flash ROM where the Canon® firmware is kept, rendering the camera un-bootable. Since CHDK does not ever intentionally write to internal flash, it would take an extremely unlikely sequence of events to make this happen. It's worth noting that neither of these cases have resulted in actual damage, and both required direct input from the user. If you are concerned about this, you can minimize your risk by avoiding untested development builds (such as test builds posted on the forum) and being careful about what scripts you run.
One last thing, there are hundreds, if not, thousands of satisfied users all around the world enjoying the benefits of CHDK.
See also GPL license information below.

Introduction To Using CHDK

What is CHDK? (Canon™ Hack Development Kit)

CHDK is a unique software application developed by enthusiasts that enables extra features for ported Canon™ Powershot™ cameras.

What can it do ?

CHDK enhances the capabilities of your camera in a non-destructive, non-permanent way. After loading CHDK, your camera will have the following extra functionality:

  • Shutter-priority (Tv) exposure - via shutter value override feature
  • Aperture-priority (Av) exposure - via aperture value override feature
  • Shooting in RAW, with RAW Average, RAW Sum, and RAW Develop features
  • DNG (Digital Negative) in camera conversion, and USB download options
  • Bracketing -Tv, Av, ISO, and Focus bracketing, using scripts, or in continuous or custom timer modes
  • Live histogram (RGB, blended, luminance and for each RGB channel)
  • Zebra mode (a live view of over and under-exposed areas of your picture) for many cameras
  • Depth-of-field (DOF)-calculator, Hyperfocal-calculator with instant Hyperfocal and Infinity focus-set, and more
  • Battery indicator
  • RAW and Video space-remaining gauges with custom low-limit alerts
  • USB cable remote shutter release
  • Motion-detection trigger - automatically fires camera on motion detection. - Ability to capture lightning strikes.
  • Adjust Video quality and size (compression) adjustable while recording
  • Elimination of 1 Gig video-size limit (for most DIGIC II cameras)
  • Zoom during video function - for cameras without this feature
  • Shutter, Aperture, and ISO Overrides
  • Ultra-long shutter speeds - up to 64 seconds - and much longer for supported cameras
  • Ultra-fast shutter speeds - up to 1/10,000" and higher
  • High-speed Flash Sync at all speeds up to 1/64,000 second
  • Custom user-editable visible Grids for framing, cropping, and alignment (not all cameras)
  • File browser
  • Text reader
  • Calendar

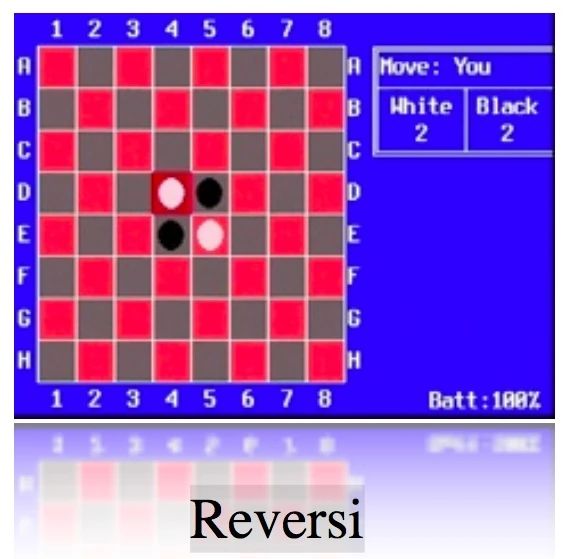

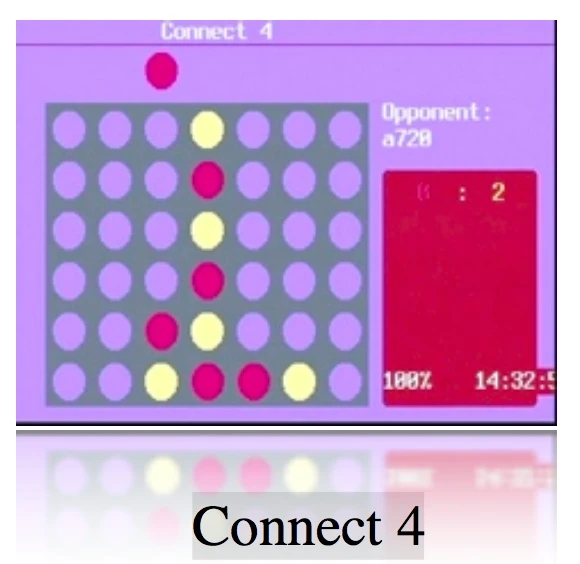

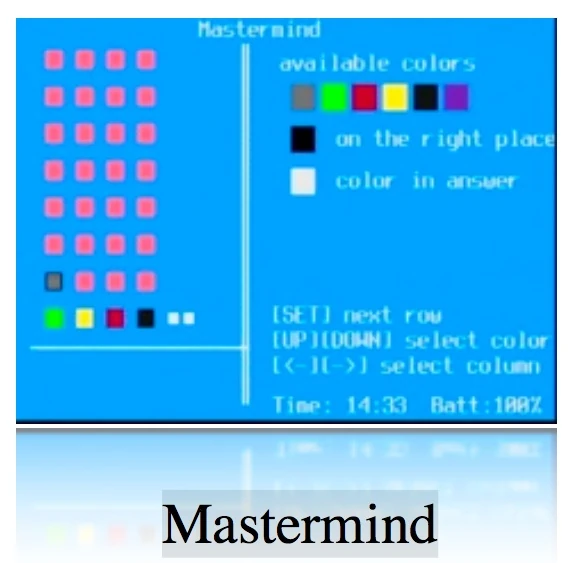

  • Games
  • Fully customizable CHDK display, info placement, user-colors, fonts in menus, etc.
  • Multi-language Interface - CHDK supports many languages
  • Custom CHDK User Menu - for instant recall of up to 10 favorite functions
  • Scripts execution - including intervalometer, motion detection, etc
  • And many others.

How is all this possible?

Firstly, by the skill, persistence, and generosity of the Developers, and other contributors to the CHDK project.

Secondly, in the same way that your computer hardware runs an operating system, such as Windows, Mac OS, or Linux, your Canon camera also has an operating system in it. And in the same way that your OS runs Photoshop or Zoombrowser on your computer, the OS in your camera is also able to run programs such as CHDK.

Does CHDK permanently alter the camera?

No. CHDK is simply software. Just like your computer, when the camera is turned off all the software disappears from memory until it is turned on again and CHDK is loaded again. Also like some software, there is an option to automatically start CHDK when the camera starts.

How does CHDK get on the camera?

In the same way that you install Photoshop or Zoombrowser onto your computer (by copying the software onto your hard drive,) CHDK is installed by copying the CHDK software onto the camera’s "hard drive"...the SD flash memory card.

How does CHDK software get copied to the flash card?

You can copy software to your SD flash card using a file manager such as Windows Explorer. A card reader must be used to connect the SD flash card to your computer. Once connected, the SD flash card appears like any other hard drive on the computer. Your printer may contain a usable card reader. Card readers are fairly inexpensive, and can simplify transferring of files, although given the right file naming, files can be transferred via USB. See:- Raw Parameters, and DNG visible via USB.

Where is the CHDK software?

Visit the Wiki Downloads page to find the correct CHDK version, Here:- Downloads. There you will find directions for locating and installing the software.

Once you’ve selected and downloaded the ZIP file for your particular camera, extract the contents using WinZip, UltimateZip, or similar unzipping software. Usually just double-click the zip file, (or right click for options). Windows users will usually use CardTricks to do the installation, and Apple Macintosh users are advised to visit the Mac FAQ page, Here: Mac FAQ, some help for Linux users here: Bootable_SD_ card#Linux:

Links to old Resources

  • MoreBest Builds include AllBest Builds' features
  • AllBest Builds include GrAnd's Builds' features

Using CHDK

When you have completed the installation, you will want to give it a try, so here we go -

CHDK makes use of the one facility your camera does provide for loading software…the firmware update process. (Note that with CHDK this does not actually modify your firmware, It just loads from the SD card once at each startup, and unloads at shutdown). If the SD card has been prepared as a bootable card, and it is locked (write protected, by sliding the tab down on the side of the card), then CHDK will start automatically when the camera is switched on, and the splash screen will appear on the OSD. For manual starting, (leave card unlocked ), follow this:

  1. Start the camera in Playback mode
  2. Press Menu, then press Up once
  3. An option to update the firmware appears. Select that option. (Pic 1)
  4. Confirm the update, (OK-press FUNC.SET) (Pic 2)

FirmUpdate-adj ConfirmUpdate 2

For more on the boot process and formatting memory cards on Windows, Mac and Linux see: Bootable SD card

When CHDK starts you will see the splash screen on the LCD…


The CHDK splash screen will appear for approximately 2 seconds, showing CHDK is loading to the camera’s memory.

It’s running! What's next?

Read these pages, and for offline viewing, and a printable manual go to:-

When the splash screen is cleared, CHDK will be running in the background. Some features are enabled by default, for example, battery and memory indicators. However, most features are disabled by default. To make changes to how CHDK operates, you start by entering <ALT> mode.

<ALT> Mode

When <ALT> mode is enabled the function of certain buttons on the camera will change, allowing you to start accessing CHDK features. For example, pressing the FUNC./SET button will display the CHDK Script menu, rather than the usual function associated with FUNC./SET.

There are different ways to enter <ALT> mode, depending on the style of camera.

Key Shortcuts

For <ALT> mode:-

  • A Series – Press the PRINT button (A momentary short press)
  • G Series – Press the SHORTCUT button (See note 1 below)
  • S Series – Press the SHORTCUT button (See note 1 below)
  • SD Series – Press the PRINT button

Also, while in <ALT> mode the following buttons are reassigned:

  • A Series Exposure/Erase(+/-) – Toggles RAW capture mode
  • G Series AF Frame Selector/Erase – Toggles RAW capture mode
  • S Series FUNC.SET – Toggles RAW capture mode
  • SD/IXUS Series DISP – Toggles RAW capture mode
  • SX200 DISP – Toggles RAW capture mode
  • SX10 AF Frame Selector/Erase – Toggles RAW capture mode

Common to most cameras

MENU – Displays the main CHDK menu
FUNC.SET – Display the Script menu
DISPLAY Button - Return to previous menu
Full Shutter press – Executes the selected Script, or pauses the running script

The following functions are available any time CHDK is loaded.

Common to most cameras

Half Shutter + Left – Toggle Zebra on/off
Half Shutter + Right – Toggle OSD on/off
Half Shutter + Up – Toggle Histogram on/off (on recent versions Half Shutter + Down)
Half Shutter + Down - Toggle Overrides on/off (on recent versions Half Shutter + Up) [Half Shutter + Left or Right on a few later models? - owners of later versions could verify]

More keys and shortcuts

In manual focus mode - (with <ALT>) -

Up – Set MF to infinity
Down – to set MF distance to hyperfocal distance (based on f/stop and zoom focal-length).
Left – Decrease Value Factor,
Right – Increase Value Factor.
On the IXUS series the DISPLAY button is used to instantly set MF (manual focus) distance to infinity.
See:- Extra Photo Operations Page 9.

In OSD layout editor – DISPLAY – Change the number of pixels the OSD (on-screen display) elements are moved by.

In File Browser – RIGHT – make selection, LEFT – Open context menu. Zoom-in / Zoom-out – Scroll-By-page in File Browser and File Reader modes. Half-shoot – Scroll one page forward in File Reader mode.

Menu numerical units -
Zoom-in / Zoom-out - To enter numerical values in menus the zoom lever / switch is used to change the unit value, ie: 1, 10, 100. The unit value is indicated in the top LH corner of the OSD. When doing this, first select the menu item to be changed, then change the unit value with the zoom lever / switch, then change the selected menu item.

SX10 – (And certain models with separate playback and record buttons) To turn the camera on directly into record mode, hold the On /Off button for ~ one second. When switched on, pressing the shutter button full or half will switch to record mode from playback mode.

Note 1. Cameras with a SHORTCUT button can be configured in Miscellaneous stuff to use either, – Shortcut, Flash, Timer, ISO, or Video buttons to enter <ALT> mode, the Shortcut button is the default, press the button with a short momentary press, and for the original Canon function, press and hold slightly longer.

When you enter <ALT> mode, the indicator -ALT- will appear at the bottom middle of the OSD. In <ALT> mode you can now use CHDK Scripts, and also enter the CHDK Main Menu. When you have finished customizing how CHDK operates, and/or using scripts, press the <ALT> mode button to exit <ALT> mode. You can now use the camera to take photos or video, and it’s operation will be changed by the options you set in CHDK. . . .Remember - you must exit <ALT> mode to take photos as normal !

OSD Map (Diagram)

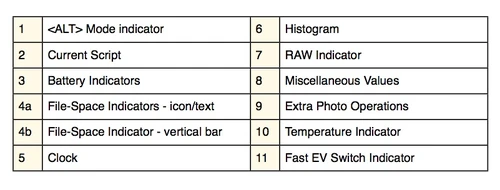

OSD Map Table

Main Menu

MainMenu Ex.Ph.Op

The Main Menu is the top-level menu from which all CHDK functions are enabled and customized. To access the Main Menu, set the camera to <ALT> mode and press the Menu button. Use the toggle to navigate the Menus. Like Canon’s menus, pressing the FUNC.SET button will select the highlighted menu option. Pressing the DISPLAY button will move back one menu level. Pressing the MENU button will exit the current operation.

Info -ToggleSw

Extra Photo Operations


Disable Overrides

Disable Overrides Allows the use of a half-press + DOWN button press to quickly toggle any override settings on and off. The status of your overrides will appear where your normal override settings are displayed in the OSD but in your chosen warning color. (See "Visual Settings") Owners of later version cameras see: Key Shortcuts.

Off - Turns off the "Disable Overrides" shortcut option.
On - Starts out with any override settings DISABLED. In display you will see "NO OVERRIDES"
Disable - Starts out with any override settings enabled.

The "ON" and "Disabled" options allow you to use this feature in your User Menu ( as your quick override toggle instead of using any shortcut key. Some cameras may not have the shortcut feature available.

  • Include AutoISO & Bracketing......Enable [●] / Disable [ ]

Includes AutoISO and Bracketing settings in the "Disable Override" settings. If not enabled then your AutoISO and Bracketing settings will not be turned on or off by the "Disable Override" shortcut button.

Override shutter speed

Override shutter speed [0 – 100]
TV in the OSD. This feature allows you to override the camera’s shutter speed in all auto and manual modes with the speed you select. This feature allows shutter speeds as long as 64 seconds, (or longer if your camera has CHDK Extra Long Exposure support) and as short as 1/100,000th of a second, in 1/3rd EV steps. This setting is affected by the “Value factor” and the “Shutter speed enum type” settings below. Please note that the actual speeds available are dependent on the camera used and other conditions such as the aperture setting.

Value factor [Off , 1,10,100] or [Off, 1/100k – 100] Enables the Override shutter speed and sets the Value factor, the use of which is described below.

Shutterspeed enum type [Ev Step , Factor]
Select the method of determining the override shutter speed.

Ev Step – The method most of us will use. Enables the first set of options above. The Override shutter speed is shown in seconds. Select the desired shutter speed and set the Value factor to 1 to enable the override function.
Factor – This method will enable the second set of options above. The shutter speed is determined by multiplying the selected value factor with the selected shutter speed. This method is useful in analytical and research photography.

ND filter state

ND filter state (For cameras with a ND Filter)

When your camera detects a really bright scene, it will swing the ND filter inline with the lens and sensor. This makes the scene look darker and will affect the exposure (but not depth of field like a real aperture / iris would). With the ND filter in, the camera can select a slower shutter speed without over-exposing the entire scene. Also, with the ND filter swung in, the camera will capture an image with an aperture of f/8 - This is an artificial aperture value caused by the ND filter swung in. With CHDK, you can choose to keep the ND filter out, and just select a faster shutter speed to compensate.
To do this, use - Main Menu > Extra Photo Operations > ND filter state. Select one of the options from - [ Off / In / Out]

  • Off means the camera will automatically control the ND filter state.
  • In means the ND filter is swung in.
  • Out means the ND filter is kept out.

Override Aperture

Override Aperture [Off , 2.77 – 16.00]
For cameras with an actual aperture / iris. mechanism (IXUS / SD models have ND filter). AV in the OVERRIDES on the OSD. This feature allows you to override the camera’s aperture settings. Simply select the desired aperture setting and the camera will use that setting in all auto and manual modes. Please note that the actual aperture values available depend on the camera zoom settings/position.

Override Subject Distance

Override Subj. Dist. Valu [0 – 65535]
SD in the OVERRIDES on the OSD. This feature allows you to specify, to the millimeter, the manual focus distance. To focus the camera at the override distance you must half-press the shutter.

Value factor (mm) [Off, 1, 10, 100, 1000]
FACTOR in the OVERRIDES on the OSD. The Value factor is used to enable the “Override Subj. Dist Valu” (OSDV), and also to quickly set the focus distance. When updating the “Override Subj. Dist. Valu” with the left/right buttons, the value will be changed by the amount set in the “Value factor.” So “1” changes the OSDV by 1mm, “10” changes by 10mm, and so forth. In this way the OSDV can be updated faster than trying to change the override from 1 to 450mm by pressing the rocker 449 times.

For cameras without Manual Focus, (IXUS series, and some A series) SD Overrides can be used to manage focusing, either by entering values in a menu, or by using shortcut keys. In <ALT> mode, go to Main Menu > Extra Photo Operations > Override Subj. Dist. Valu, > Value Factor - enter a choice of unit value, either 1, 10, 100, or 1000, this will change the Subj. Dist. Value by the unit value you entered, ie: if the Value factor is 10, and the Subj. Dist. is 10 then the focus will be 10 x 10 = 100mm from the lens.

These Manual Focus adjustments can also be achieved with shortcut keys. In <ALT> mode, using the Left / Right keys to adjust the Value Factor and the Zoom lever to adjust the Subject Distance, (or on cameras without a zoom lever use the Display button) Infinity is immediately selected by pressing the Up key, and for Hyperfocal adjustment based on current F-stop and zoom focal length, press the Down key.
The subject distance values are displayed as part of OVERRIDES on the OSD. Remember to exit <ALT> mode to shoot pictures with these adjustments applied. Also remember to uncheck "Clear overrides @ start" setting if you want to continue with the current settings after a restart.

Override ISO value

Override ISO value...[0 – {ISO max for camera}
ISO in the OVERRIDES on the OSD. This feature allows you to override the camera’s ISO setting. Select the desired ISO setting and the camera will use that setting in all auto and manual modes.

Value factor...[Off, 1, 10, 100]
The factor is used to enable the ISO override, and to set a multiplier against the “Override ISO value” set above. So if you want to use an ISO of 1200, you would set the “Override ISO value” to 12, and the “Value factor” to 100. This arrangement facilitates setting the custom ISO quickly.

See: OSD Parameters for "Show State Displays" of overrides in the OSD.

Bracketing in continuous mode

Bracketing is the practice of making several exposures of a scene, with each exposure differing from the next by predetermined steps in exposure or focus settings. Bracketing is used to easily capture a range of exposures so that the best exposure can be selected at a later time. Bracketing is also used to create a series of exposures which will be combined using methods such as HDR processing.

The bracketing features are enabled when the camera drive mode is set to continuous, and custom timer with some models


Usage Tip: If you wish to fire off individual frames and still have bracketing for each one,
after the first shot, lightly let-up on the shutter button to a half- press position.The next
full-press will give you another bracketed shot. This process may be repeated for as
many bracketing steps as you need. Giving you finer control over the number of bracketed
exposures you may require.

Set camera Custom Timer in Canon Menu

  • TV bracketing value...[Off, 1/3 – 4 Ev]
Set this value to bracket via exposure time. A value of 1 will double or halve the exposure time for the following exposures.

BracketInContMode TvBrackVal--1-3EV--brt
  • AV bracketing value...[Off, 1/3 – 4 Ev]
Set this value to bracket via aperture. A value of 1 will open or close the aperture by 1 stop for the following exposures.
  • Subj. Dist. Bracket Value...[0 – 100]
Set this value to enable focus bracketing. This feature is only enabled during manual focus mode. This feature allows you to specify the manual focus distance in millimeters. This value is multiplied by the Value factor below to arrive at the final value.
  • Value factor (mm)...[Off, 1, 10, 100, 1000]
Used as a multiplier for Distance bracketing value.
  • ISO bracketing value...[0 – 100]
Set this value to bracket via ISO. This value is multiplied by the Value factor below to arrive at the final ISO value that will be used for bracketing. A value of 2, with a Value factor of 10, will increase or decrease the ISO by 20 for following exposures.
  • Value factor...[Off, 1, 10, 100]
Used as a multiplier for the ISO bracketing value.
  • Bracketing type...[+/-, –, +]
BRACKET in the OSD. With all bracketing types the first exposure uses the current exposure settings of the camera. On following exposures the exposure settings are adjusted as described below.
  • +/-
This bracketing type will alternatively apply the bracketing value by first subtracting then adding. The sequence goes like this…
0 Ev, -1Ev, +1Ev, -2Ev, +2Ev, -3Ev, +3Ev, etc. Bracketing will continue until you release the shutter. So for example lets say you set the TV bracketing to “2 Ev”, and when you half-press the :shutter you notice an exposure time of 1 second. When you fully depress the shutter you will get exposures at these times: 1 sec, ¼ sec, 4 sec, 1/15 sec, 15 sec, 1/60 sec, 15 sec, 1/250 sec, 15 :sec, etc.
This bracketing type works as above but will only reduce the exposure value. Using the above example, the exposure times would be 1 sec, ¼ sec, 1/15 sec, 1/60 sec, 1/250 sec, etc.
  • +
This bracketing type works as above but will only increase the exposure value. Using the above example, the exposure times would be 1 sec, 4 sec, 15 sec. Once the camera’s limit is reached, subsequent exposures will occur at the maximum (or minimum) setting.
  • Clear Bracket Values on Start Enable [●] / Disable [ ]
Enable this option to turn off bracketing when the camera is turned off.
  • Add raw-suffix Enable [●] / Disable [ ]
In bracketing mode you now have the option to add a suffix to the raw filename, so that later you can easily identify the RAWs that were created during bracketing, it is disabled at default.

Custom Auto ISO

This feature has 2 purposes: Allow the user to define the exact ranges of ISO used in AutoISO and Auto-HI. As an example: Expand the AutoISO range from 80-200 to 50-400. Give additional information to the camera to allow it to select the optimal shutter speed (to avoid blur or get the right artistic exposure) and ISO instead of some sub-optimal default...

As an example: Use a faster shutter and higher ISO when shooting sports, but go for a slower shutter and minimal ISO when shooting still landscapes) Method: The camera will try to maintain lowest ISO as long as shutter speed is no-slower than user defined (more below). Custom AutoISO will kick-in whenever ISO HI/AutoISO is chosen. This allows a quick manual override by choosing a specific ISO value.
Example: Camera set ISO 100 at 1/8s. AutoISO configured to ISO50-400 at 1/15s: AutoISO will shift to ISO200 to maintain 1/15s shutter speed. This feature is available in all modes except for Shutter priority (Tv). It is also disabled in stitch assist to prevent using different settings for each panorama part.

  • Enable Custom Auto ISO Enable [●] / Disable [ ]

This is the master switch for this feature.

CustomAutoISO Enable

Minimal Shutter Speed [Auto 1/8 -etc]

Here you have basically two options
  1. Auto - This is for use when photographing still-life, landscapes, etc. It will use the factors below to prevent camera shake, but will assume the subject holds still.
  2. Numerical setting - hint to the camera what the optimal shutter speed is for the subject you are photographing.

The camera will try to use this value or a faster one as much as possible (to prevent blur), e.g. 1/8s - 1/30s - Slow moving subjects. 1/60s - 1/125s - Kids, Pets, general movement 1/250s - 1/1000s - Sports, Fast action.

User Factor (1/FL/factor) This setting accounts for the user’s ability to hold the camera steady. It is based on the old rule that your shutter speed should be no less than 1/focal-length. Start by dividing the effective focal length of the lens by the actual focal length. The answer is generally somewhere around 6. Then increase or reduce this amount by a self-assessed value of your steadiness. If you think your hands are steadier than average then decrease by 20%. If you think you’re shaky then increase by 20%.

IS Factor (Tv*factor) In determining the ISO setting, the effectiveness of the IS system will be taken into account. Use a setting of 4 if your IS is effective enough to give you a two-stop reduction in shutter speed. Use a setting of 2 if the IS isn’t very effective, or 8 if the IS is very effective. Max ISO HI (x10) Sets the maximum “HI” ISO that the camera can select. Max ISO Auto (x10) Sets the maximum “Auto” ISO that the camera can select. Min ISO (x10) Sets the minimum “Auto” ISO that the camera can select.

Clear override values@start Enable [●] / Disable [ ]
Extra Photo Operations overrides will be cleared for the next time the camera is started.

Enable Fast EV Switch?

Enable Fast EV Switch? Enable [●] / Disable [ ]

Warning: This feature does not work properly on all cameras yet..
See:,2595.msg24211.html#msg24211 and:,2501.msg23321.html#msg23321

Turns your UP and DOWN buttons into quick EV compensation buttons. You no longer have to press your FUNC./SET or MENU buttons to adjust your EV settings while shooting. By pressing UP or DOWN buttons the EV increased or decreased. There is also a screen display❶ showing your chosen EV-compensation settings by whatever step-size you have chosen (see Step Size (1EV)?) below). It is advisable to move your OSD EV override display❷ over your camera's own to prevent confusion. You will see a real-time change in your EVF/LCD as you change your EV values with this short-cut. It also works while the Zebra Mode is engaged. You can fine-tune the Zebra alert just by pressing the UP and DOWN buttons with half shoot. When used in conjunction with the Curves "Auto DR" Mode you should never miss another blown highlight or dropped shadow again. One drawback: If using your up and down buttons during a half-press to see your Zebra alerts while changing your EV setting, it will toggle your "Disable Overrides" on and off if you have that feature engaged as well. A small price to pay for the ability to have these amazing features. One work-around, set your EV step-size to 1/2 what you normally would use, then the "Disable Overrides" shortcut will always toggle back to your original ON (or OFF) on every 2nd EV +/- press, effectively resetting it where you wanted it in the first place. Note also: This change is not saved between camera power-downs. If you would always like to start out with a small negative preset EV value to avoid blown highlights, then use Canon's own EV compensation setting for your startup EV value. This Fast EV Switch will reflect that value on startup.

❶: Enabled when Fast EV Switch is enabled. ❷: Use OSD parameters > OSD Layout Editor to move display.

  • Step Size (1EV)? [1/6 Ev, 1/3 Ev, 1/2 Ev, 2/3 Ev, 5/6 Ev, 1Ev, and on - ]
When using the Fast EV shortcut feature you can adjust how much you want to change your EV compensation with each UP or DOWN keypress. Step size is increments. A major improvement over the adjustment levels and steps in the original firmware.

Force manual flash

Force manual flash Enable [●] / Disable [ ]

For optional control over camera flash output, use with Power of flash [ 0, 1, 2 ] to give 3 separate steps up in flash output power.
  • Power of flash [ 0, 1, 2 ]
Used with Force manual flash to adjust flash output. 0 = Low, 1 = Medium, 2 = Very High

Thanks to Walqas
ManFlash 1
ManFlash 2
ManFlash Camera

Video Parameters


Video Mode

Video Mode [ Bitrate or Quality ]

Video compression modes.

Bitrate – dictates a constant data rate. Video compression (and hence, video quality) expands or contracts as necessary to maintain the data rate constant.
Quality – Sets a constant compression level, ensuring a defined level of quality regardless of how much data that level requires.
Note: Excess Bitrate and Quality settings can cause memory buffer overload, and stop recording, a red ! will show on the OSD.

  • Video Bitrate [ 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3 ]

The compression factor for Bitrate compression. 0.25 is the most compressed / least quality and 3 is the least compressed/best quality.

  • Video Quality [ 1 - 99 ]

The compression factor for Quality compression. 1 is the most compressed / least quality and 99 is the least compressed / best quality.

  • Clear Video Params on Start? Enable [•] / Disable [ ]

When enabled this will clear all your custom video compression settings back to the camera's own defaults on startup.

Fast Video Control

Fast Video Control Enable [●] / Disable [ ]

Only a few cameras are supported. Pause and unpause video by pressing LEFT / RIGHT while recording. Note: When using this function the remaining video-record time calculation is reset, so the change is shown immediately in the OSD.

Video Quality Control ?

Video Quality Control ? Enable [●] / Disable [ ]

When enabled, using the UP / DOWN button will increase or decrease video quality or bit-rate (depends on which one is enabled in the Video Mode override) - While you are recording.

Enable Optical Zoom

Enable Optical Zoom Enable [●] / Disable [ ]

This feature allows you to use the camera’s optical zoom during video recordings.

Mute During Zooming Enable [●] / Disable [ ]
To eliminate focus mechanism noise. Please note that the zoom mechanism sound is very loud in video, which is probably why it was disabled by the manufacturer.

AF key [Shutter, Set]
(Shutter button - half press, or FUNC./SET button) During video recording: camera makes a single autofocus scan.

Show Remaining Videotime [ Don’t, hh:mm:ss, KB/s, both ]
Displays a positionable OSD element to show the video bit-rate, and the remaining video recording-time, on your SD card,…

Don't - No display of remaining recording time and/or video data-rate.
hh:mm:ss - Display a clock of remaining video-recording time left.
KB/s - Display video recording bandwidth (data-rate) in Kilobytes per Second.
Both - Display remaining video-recording time in both hours/mins/secs, and video data-rate in Kilobytes per Second.

Refresh Rate (~sec)
Due to the nature of video's variable bit-rate and compression methods, subject dependent, the "Show Remaining Videotime" has to be updated regularly by re-polling the card-space and the bit-rate to calculate a fairly accurate time-remaining estimate. Choose, in seconds, how often that you want this Video-Recording time-remaining to be updated. Shorter periods of time are less accurate from each on-screen update to the next.

RAW Parameters

Save Raw

Save Raw Enable [●] / Disable [ ]
Enables the saving of RAW files. Enabling RAW does not disable JPEG, both are saved.


  • Disable @ Video Record? Enable [●] / Disable [ ]
Some cameras, the S-Series in particular, have a dedicated "Video Record" button where you can engage that and also shoot individual still-frames during video recording. It was found that RAW file-saving can interfere in this process. Turning this option on will ensure that you don't miss a shot or your video.
  • Disable RAW @ Sports Enable [●] / Disable [ ]
Disable RAW saving when the Mode-Dial is turned to Sports Mode. This ensures that fast action sequences won't be missed due to RAW file-saving time, when forgetting to disengage the RAW feature.
  • Disable RAW @ Burst Enable [●] / Disable [ ]
Disable RAW file-saving when using burst mode. Again, a handy override for when RAW is not needed during fast burst-sequence shots (RAW enabled would certainly increase time between shots)
  • Disable RAW @ Timer Enable [●] / Disable [ ]
Disable RAW file-saving when using your camera's Custom Timer mode (similar to the safety feature for the burst mode).
  • Disable RAW @ EV Bracketing Enable [●] / Disable [ ]
Disable RAW file-saving when you are using any of the high-speed bracketing features.
  • Disable RAW @ Edgeoverlay Enable [●] / Disable [ ]
Disable RAW saving while using Edgeoverlay.
  • Disable RAW @ Auto Enable [●] / Disable [ ]
Disable RAW saving while using Auto shoot mode.
  • Warn when Exception? Enable [●] / Disable [ ]
Displays a "RAW Disabled" OSD warning in a selectable color when any of the RAW File-Saving Exceptions are being met and RAW file-saving is turned on.

Dark Frame Subtraction

Controls the application of the Dark Frame Subtraction feature of your Camera onto the RAW file. Dark Frame Subtraction is a function used to reduce the effects of sensor noise when the exposure time is 1.3 seconds or longer.
Auto – Performs a DFS on exposures 1.3 seconds or longer.
Off – Never performs a DFS.
On – Always performs a DFS.

By always performing a dark-frame subtraction the noise caused by the hot-pixels will be removed from any image. There will be a slight increase in processing time.

Only First RAW in Series

Only First RAW in Series Enable [● ] / Disable [ ]
When shooting in continuous mode, this will only create a RAW capture for the first image. Subsequent images will not have RAW captures. This allows rapid continuous shooting.

RAW File in Dir with JPEG Enable [●] / Disable [ ]
Saves RAW files in the same folder as the JPEG files. If disabled then RAW files are always saved in the 100CANON folder.

RAW File Prefix [CRW_, SND_, IMG_]
CHDK lets you name your raw files with any combination of the standard prefixes IMG_, CRW_, SND. If you are going to process the RAW files with DNG4PS-2 then setting a prefix of IMG_ will allow DNG4PS-2 to retrieve EXIF data from the accompanying JPEG.

RAW File Extension [.CRW, .CR2, .THM, .WAV, .JPG]
Set the extension to be used on RAW files. so the files are visible when you connect the camera via USB.

RAW subtract extension [.CRW, .CR2, .THM, .WAV, .JPG]
Using more than one extension with the same prefix can cause a problem with USB listing.

RAW develop

Note:- This feature is for RAW files created with CHDK, not the Canon native RAW of some cameras.
This feature is used to process a CHDK RAW file and create a JPEG from it. When selected, a file browser window is displayed, Select a RAW file and press FUNC/SET, then the message `Switch Camera to Record Mode and take one shot` displays, Press FUNC/SET again to back out of this menu, then use your <ALT> button to exit <ALT> mode. Press the shutter button, instead of taking an image, it will process that selected RAW file and make a JPEG file from it, that will be named according to whatever last JPEG filename is in that folder and increment it by one (1). Remember that the EXIF data on this new JPEG file will not reflect the original RAW file. It will use whatever camera settings were available at the time that you take the RAW Developing shot for the resulting EXIF data.
Note also: RAW file-saving must be turned ON for this feature to work. If RAW is not turned on, or you select a JPEG file for `developing`, then no action will take place. An interesting aspect of this feature is that the processing will occur with the camera’s current settings. So, for example, you can use the MyColors settings to create Vivid and Sepia versions of the same image, or simply tweak the sharpness or contrast, and other settings. Normally, you would have to set MyColors before the image is taken, and you would get only one image. In effect, RAW files can be kept as `Masters' to develop from as one wishes, and to experiment with settings.
Raw Develop is another feature from ewavr.

Bad pixel removal

Bad pixel removal [ Off, Average, RAWconv ]

Use this option to remove defective pixels directly while taking an image; this affects also the JPG image, not only the RAW image. This function removes bad pixels ("hot" / "defective" pixels) which are not known by the Canon firmware, i.e. pixels those who became defective while camera lifetime.

Once you have generated a list with all the "bad" pixels for your camera, CHDK can remove them automatically: with the [Average] or [RAWConv] option selected, CHDK looks for the file badpixel in the \chdk folder; this is a plain text file with x/y coordinates of the bad pixels in the raw image.

  • with the [Average] setting CHDK calculates the color for the bad pixel based on its four neighbour pixels with a simple average calculation; bad neighbour pixels will be ignored in this calculation.
  • the [RawConv] setting means: let an external raw converter software remove the bad pixels later in the workflow. With this setting CHDK just sets the bad pixel to the value 0 (zero), without any other calculation or modification. Most RAW-capable apps will detect this and apply own algorithms then.

To create this badpixel file you need to capture a "dark frame" by shooting an image with your lens completely capped. For shutter speeds longer than 1 to 10 seconds, it's wise to keep a collection of dark-frames on hand for each exposure length that you will be using in the future, as more warm and hot-pixels show up with extended shutter speeds.

To create a list of the bad / defective pixels you can use the show_bad tool: (mirror)

Read more about this program & how to use it here: Hot/bad pixel removal

DNG format

DNG format Enable [●] / Disable [ ]

Automatic conversion of RAW image into the DNG format directly in the camera. This format can be read by many image editing programs. Also includes meta data like EXIF and whitebalance / color matrix information. The DNG files created have the same file extension as described in RAW, and can be reset manually to DNG. There is also an automatic function to rename for some cameras in the CHDK RAW menu.

To enable this option the first time, a special file badpixel.bin must be generated and stored on the memory card once. This camera specific binary file contains informations about the sensor pixels which were marked as defective by the manufacturer.

  • Note: With DNG format enabled, bad pixels are removed (interpolated / averaged) always by CHDK, the "Bad pixel removal" setting will be ignored.

There are two ways to create this badpixel.bin file:

in the camera, by running the script "badpixel.lua":

  • put your camera on 'auto'
  • power on your camera in record mode (half-press the shutter when you start in playback mode)
  • press PRINT, then press FUNC/SET
  • select "Load script from file", go 2 steps down to the TEST/ folder, press FUNC/SET
  • select "BADPIXEL.LUA", press FUNC/SET
  • start the script by pressing the shutter button
  • the camera now will capture two images and calculates the data; this takes around 20-30 seconds
  • wait until you see "press SET to save....." (or wait at least 1 minute)
  • press FUNC/SET to store the badpixel.bin automatically in the right place
  • press PRINT to leave the <ALT> mode, press PRINT again to enter <ALT> mode
  • press MENU, go to the "RAW parameters", enter it with FUNC/SET
  • enable the settings "Save RAW" , "DNG format" and "DNG file extension"
  • press PRINT to leave the <ALT> mode again.
  • Now RAW saving in DNG format is enabled, transfer the DNG files with a card reader.

with a little software tool - read about it here: Badpixel removal

‘DNG’ file extension Enable [●] / Disable [ ]
To distinguish DNG from RAW files. The DNG RAW image files will be stored as "<filename>.DNG" with this option enabled, otherwise the extension from the "RAW file extension" menu entry is used.

RAW buffer cached Enable [●] / Disable [ ]
When enabled, saves the DNG file using the RAW buffer, which is a quicker method.

Info -RAW

Edge Overlay

Enable edge overlay Enable [●] / Disable [ ]
Creates and overlays a high-contrast outline of the edges in the last half-press or shot that you took. Valuable for those that want to align features for panorama stitching or for doing stop-frame animations. Similar to an "onion-skinning" mode in animation software. During shoot mode half or full press this feature adds an overlay based on the image edges, additionally a grid that matches the Canon grid is added. Use the LEFT, RIGHT, UP or DOWN buttons to shift the overlay (use it in <ALT> mode to avoid changing the camera options). The edge overlay is frozen when taking a shot. The frozen edges are displayed from then on when the shutter gets half-pressed, FROZEN is shown in the OSD. When you shoot again it goes back to the original behavior: showing the edges of the current image on half press. This behavior is useful when shooting stereo pairs. For panoramas you would want to freeze the edges after every full press. Zebra mode should be disabled when using the Edge Overlay.

Save Edge Overlay

After creating an overlay, navigate to this menu item and Press FUNC.SET to save.

Load+Set Zoom Enable [●] / Disable [ ]
When this function is activated, the zoom position is stored to the current edge-overlay loaded .

Lock Edge Overlay Enable [●] / Disable [ ]
Enable this to ensure the edge-overlay you loaded or just created is not overwritten in the OSD at half-press. Note:- This checkbox is overwritten on each camera startup.

Edge overlay threshold [ 0 - 255 ]
Set the edge-overlay sensitivity. Lower values create edges along lower contrast / lower-brightness edges. Higher values only create edges on the highest contrast / brightest boundaries, and therefore fewer, finer, and more well defined lines. Adjust to suit your preference.

Edge overlay color
When selected press FUNC.SET to display the standard color selection palette, to choose your edge-overlay highlighting color. Choose your color then press FUNC.SET again to register that color with this function.

Enable in Play Enable [●] / Disable [ ]
Enables edge-overlay to be displayed in playback mode.

Free internal Memory
Clears the items saved in the Save Edge Overlay menu.

Load Edge Overlay

Press FUNC.SET takes you to Edge Overlay folder, choose an edge overlay to load.

Custom Curves

CustomCurves Enable

(Cameras with 12 bit sensors are not yet supported-Dec09).

Enables the use of custom "curve" profiles to adjust the exposure of your RAW and JPG images. Difference between CV and CVF curves: CV curves are the standard RGB curves. CVF curves are special versions of the curves which intends to avoid color shift side effect of the RGB curves. They are an approximation of the luminance curves. Except the SYSCURVES.CVF file it is recommended to put the curves files in the \curves directory. See:-,932.0.html

Enable Curve

  • Enable Curve [ None, Custom, +1EV, +2Ev, Auto DR]
  • None - No curve profile is applied.
  • Custom - Your custom curve profile is applied as-is.

The following three options require that you have a SYSCURVES.CVF file in your /CHDK folder, this file is included in the "complete" CHDK packages. It is also contained in a file at;topic=932.0;attach=1816 which also contains the editor. Due to the limitation to short 8.3 file names in the file browser of current DryOS-based cameras the file "SYSCURVES.CVF" should be placed on the memory card by a card reader; in the CHDK file browser the file name is shown in shortened format as "SYSCUR~1.CVF".

  • +1EV - Increases shadow detail by 1EV step.
  • +2EV - Increases shadow detail by 2EV steps.
  • Auto DR (auto dynamic range):

Auto DR with Zebra is intended to be used for the direct application of the curves to the shot - and not for post processing (the feature is just mimic of the Fuji S100 +200, +400 Dynamic Range). The flow is:

  • 1) Activate Zebra display
  • 2) Activate Auto DR
  • 3) Use the camera EV negative compensation to reduce the Zebra overblown highlights shown on screen. You can use the (+/-) button on the back of the camera.
  • 4) Take the shot. You will directly get the JPG without post processing. The luminance of the darker areas will be raised while the highlight is compressed. During the RAW develop process, you need to set the EV comp. to the value that you used to reduce the highlight blown out when you took the RAW. Care should be taken with in camera develop since it is a tricky art there (for White Balance issues in particular). If the scene does not require you to reduce exposure to avoid blown highlights, the Auto DR feature does not do anything.

Load Curve Profile

Load your desired curve profile from your \CHDK\CURVES folder. All curve profile files except for SYSCURVES.CVF should be in this folder.

Histogram parameters

MainMenu HistgmParams

Enables and customizes the Live Histogram feature.

Histogram Anatomy The horizontal component of a histogram runs from 0 to 255. What is important to understand is the “0” and “255” are not values…they are labels representing a color value. When you see a line in the middle of the histogram (label “127”) it’s saying “this is how many ‘127’s there are in the image.” The vertical component of a histogram is the count of pixels at a given level. The bottom is zero and the top represents the largest count of values for a label. So if you have a 7MP image and every color is “127”, then the top of the histogram represents 7 million pixels.
RGB Histogram RGB histograms simply count pixels at each level. The RGB histogram of an image of three boxes (red, green, and blue) where every color has a value of 127 would be a single line in the middle of the histogram (at label “127”.)
Luminance (Y) Histogram Luminance histograms attempt to factor in the perceived brightness of colors. A luminance histogram of an image of three boxes (red, green, and blue) where every color has a value of 127 will show three lines at labels “38” (red- x 0.3), “75” (green x 0.59), and “14” (blue x .11).

Show live histogram

Show live histogram [Don’t, Always, Shoot]

Don’t – Don’t show histogram on LCD.
Always – Always show the histogram on the LCD.
Shoot – Only show the histogram when shutter is half-pressed.

Histogram layout [RGB, Y, RGB Y, R G B, RGB all, Y all, Blend, Blend Y]

RGB – Displays the RGB histogram only.
Y – Displays the luminance histogram only.
RGB Y – Displays RGB above luminance.
R G B – Displays three histograms, one for each color.
RGB all – Displays all 5 variations of histograms with RGB on top.
Y all – Displays all 5 variations of histograms with luminance on top.
Blend – Combines the three histogram of the R G B display into one.
Blend Y – Same as Blend but with the addition of luminance below.

Histogram mode

Histogram mode [Linear, Log]

Determines how the Y-axis (vertical) of the histogram will be scaled. Log is useful for scenes with a large amount of a single color, such as an overcast sky (lots of :gray.)

Show histogram over/under EXP Enable [●] / Disable [ ]

EXP in on-screen display. If parts of a scene are over or under exposed, then this setting will display “EXP” above the histogram, and a red dot at the end that is :exceeding exposure limits.
GSCHDKGuide 26
In this example the image is both over and under exposed (the scene has a very wide dynamic range).

Ignore boundary peaks [0 – 32]

Another tool for controlling the scaling of the histogram. If you know that your scene will contain large amounts of black or white (e.g a moon shot) you can set how many :levels from the left or right edges of the histogram to ignore, if those levels peak in the histogram. This will increase the visibility of the smaller portion of the :histogram.

Auto magnify Enable [●] / Disable [ ]

N.NNx in on-screen display. Another tool for controlling the scaling of the histogram. This option will magnify the Y-axis (vertical) if less than 20% of the histogram area is filled. The purpose of this function is to make the histogram easier to read when there are very tall peaks. This function lies somewhere between the Linear and Log options above. A red dot over a peak indicates that it’s been clipped due to the magnification. The amount of magnification applied is displayed over the histogram.

Show Histo Ev Grid Enable [●] / Disable [ ]

Adds 4 or 5 vertical lines to the histogram dividing the histogram by full stops.
GSCHDKGuide 29
EV Grid Enabled

Zebra parameters

Zebra is a feature that indicates over and under exposed areas of the scene. When the shutter is half-pressed, the areas of the scene that are under or over exposed will turn red. The zebra effect can also be applied to existing images by half-pressing the shutter during playback mode.

Draw Zebra

Draw Zebra Enable [●] / Disable [ ]

Enables the drawing of over/under exposure indicators.

Zebra mode

Zebra mode [Blink 1, Blink 2, Blink 3, Solid, Zebra 1, Zebra 2]

Determines how the over/under exposed areas will be indicated.
  • Blink 1 – Solid coverage, blinks every ½ second.
  • Blink 2 – Solid coverage, blinks every second.
  • Blink 3 – Solid coverage, blinks every two seconds.
  • Solid – Solid coverage, no blinking.
  • Zebra 1 – Striped coverage, thin diagonal lines.
  • Zebra 2 – Striped coverage, thick diagonal lines.

UnderExposure threshold [0 – 32]

Controls the sensitivity of exposure indication. 0 is less sensitive and 32 is very sensitive.

OverExposure threshold [0 – 32]

Controls the sensitivity of exposure indication. 0 is less sensitive and 32 is very sensitive.

Restore original screen Enable [●] / Disable [ ]

This option only applies to Zebra Blink modes. When exposure indicators are visible, all of the original Canon indicators are erased. When this option is enabled, the :original Canon screen items (such as exposure) are redrawn between blinks.

Restore OSD Enable [●] / Disable [ ]

This option only applies to Zebra Blink modes. When exposure indicators are visible, all of the CHDK half-shutter indicators are erased. When this option is enabled, the CHDK half-shutter indicators (such as DOF calculator) are redrawn between blinks.

Draw over zebra [Histo, OSD, Nothing]

This option applies to all Zebra modes. When exposure indicators are visible, nothing else is displayed on the screen. This option specifies which additional indicators will be drawn.
  • Histo – Only the live histogram is drawn with the exposure indicators.
  • OSD – The entire CHDK OSD is drawn with the exposure indicators.
  • Nothing – Nothing else is drawn with the exposure indicators.

RGB zebra (overexp. Only) Enable [●] / Disable [ ]

Overexposed areas are indicated by the color of the channel that is overexposed. Underexposed areas are ignored.
  • Black – All channels are overexposed.
  • Red – Red channel is overexposed.
  • Green – Green channel is overexposed.
  • Blue – Blue channel is overexposed.
  • Cyan – Green and blue channels are overexposed.
  • Magenta – Red and blue channels are overexposed.
  • Yellow – Red and green channels are overexposed.

OSD Parameters

OSD LayoutEd

Show OSD

Show OSD Enable [●] / Disable [ ]

The CHDK On Screen Display.

Hide OSD? [ Don’t, In Play, On Display, both ]

  • Don't - always shows the OSD icons/elements
  • In Play - hides them in playback
  • On Display - hides them when you toggle the CANON icons on/off with the display button (does not work for the evf)
  • both - hides OSD in both playback and by "display button cycling", Helpful to those who don't need the battery and other indicators in their playback screens.

Center Menu Enable [●] / Disable [ ]

A cosmetic adjustment to your CHDK Menu screens to evenly place them on the screen.

Auto Select 1st Entry @ Menu

Auto Select 1st Entry @ Menu Enable [●] / Disable [ ]

Quickly position your menu-selection cursor on the first entry in any CHDK menu. Instead of having to press DOWN once to enter the menu options it will now start out :already on the first menu option.

Enable Symbols

Enable Symbols Enable [●] / Disable [ ]

To display Menu Symbols

Without Symbols


With Symbols

User Menu

Add frequently used menu items to make a custom easy access menu.

User Menu Enable

[ Off, On, On Direct, Edit ]
  • Off - Disables use of the User Menu
  • On - Enables the User Menu when in <ALT> mode and pressing [HALF-PRESS] + MENU.
  • On Direct - When entering <ALT> mode your User Menu will be automatically displayed without having to press the MENU button. You may reach the main menu by scrolling to the bottom or using a HALF-PRESS + MENU shortcut keys.
  • Edit - Enters the editing mode for your User Menu.

To copy other menu-items to build your custom User Menu (Up to 10 entries)... Still in OSD parameters, select User Menu Enable [ Edit], now browse to any menu and select the item you want to add to the User Menu, then press +/- button or the equivalent button on your camera. The item has now been added to your User Menu. Each new item is added as the lowest on the menu. To delete an item, in Edit mode, select the item and press +/- button (or equivalent). When editing is complete remember to set the User Menu Enable option back from "Edit" to either "On" or "On Direct". Customizing hint / reminder: Some CHDK features require 2 or more options that work together. An example, "Override Shutter Speed" might also need its associated "Value Factor" selection and the "Shutter Speed Enum Type" if you frequently change that too. Be sure to copy any related menu items together so they are still available where you need them in your custom menu.

User Menu as Root Enable [●] / Disable [ ]

Toggles the behavior of the Menus when the User Menu is turned ON. When this option is set then the User Menu will be the first one to be seen, and the main menu may be reached by using the HALF-PRESS + MENU shortcut keys, or just selecting the top entry “Main Menu”.

Show State Displays Enable [●] / Disable [ ]

Displays your Override, Bracketing, and Override Disabled settings in their own positionable information area.

Show Temperature

  • Off - No display of camera component temperatures.
  • Optical - Displays the temperature of your optical elements (most assume this is used for the IS mechanism and Zoom/Focus motors). When the camera is first turned :on this will most accurately reflect the environmental temperature.
  • CCD - Display the temperature of the CCD. Let's you know when it might be getting too warm. Or when it's cold enough to take lower-noise images.
  • Battery - Displays the temperature of the battery compartment.
NOTE: 3rd party LI-ION battery packs may always report a constant temperature, e.g. 25°C or 28°C.
  • all - Displays all 3 values.
  • in Fahrenheit - Enable [●] / Disable [ ]
Default is Centigrade, check this for Fahrenheit.
Note: Not all models have a separate temperature sensor for each component, and due to differences in design, values reported by different models may not be directly comparable.

OSD layout editor

The OSD items can be rearranged to suit personal preferences and to avoid the Canon items on the display.

OSD LayoutEd
OSD LayoutEd-Histogr OSD LayoutEd-DOFCalc

1)....Enter Layout Editor.....2)....Histogram selected.....3)....DOF Calculator selected

When a feature is selected you can use the rocker switch to move it around. A red highlight displays giving the name of the feature being moved and its position in X, Y format. Func./Set - Switch between display features. 4-Direction switch/rocker – moves the selected feature. Display – Toggles between 1 pixel per move or 10 pixels per move.


Opens the Grid Lines menu. This menu allows you to select and display a custom defined grid.

See the grid tutorial in the CHDK Wiki.


Show grid lines Enable [●] / Disable [ ]

Enables the display of custom grids.

Load grid from file…

Displays the file selection screen. Use the directional controls to select a grid file and press Set to select it.

…………...Current grid.…………….
The name of the currently loaded grid.

Override grid colors Enable [●] / Disable [ ]
This setting will override the grid colors defined in the grid file. It will not override the grid colors of the grid selected from the Canon menu.

  • Line color - Select a color for the grid lines fill color, press the Func./Set key to bring up the color selection table, press the Func./Set key to select a color.

Miscellaneous Values

Miscellaneous Values

Show misc values [Don’t, Always, Shoot]

  • Don’t – Don’t show misc values on LCD.
  • Always – Always show the misc values on the LCD.
  • Shoot – Only show the misc values when shutter is half-pressed.

Show values in video Enable [●] / Disable [ ]

Displays the Miscellaneous values when the camera is in video mode.

Show Zoom Enable [●] / Disable [ ]

Z:n/n.nx in Micscellaneous Values. Displays the current Zoom position of the lens.
Z:n = zoom position, from 1 to 14
  • Show Zoom value as [X, FL, EFL]
Method of displaying the Zoom position of the lens
X – as a multiple of the shortest focal length, as in 6X.
FL – as the actual focal length of the lens, as in 34.8mm.
EFL – as the effective focal length, (35mm Equivalent, as in 210mm).
Adaptor Lens Scale, 100=1x [0 – 1000]
Adjusts the zoom value above by a multiplier, which is based on the converter lens that is installed on the camera. For a 0.7x wide converter use 70. For a 1.75x tele converter use 175.

Show ‘real’ Aperture

Show ‘real’ Aperture Enable [●] / Disable [ ]
Av in Miscellaneous Values. This is the actual aperture setting after any override aperture adjustments have been applied.

Show ‘real’ ISO Enable [●] / Disable [ ]
I-R in Miscellaneous Values. Displays the actual ISO value after overrides or bracketing have been applied.

Show ‘market’ ISO Enable [●] / Disable [ ]
I-M in Miscellaneous Values. Displays Canon’s ISO value, which is not always the same as the actual ISO value.

Show ISO only in Autoiso mode Enable [●] / Disable [ ]
Display the ISO value only when the camera is in Auto ISO mode.

Show Set Exposure Ev (Tv+Av) Enable [●] / Disable [ ]
Evs in Miscellaneous Values. Show camera exposure value based on the values of shutter speed and aperture.

Show Measured Ev (Bv+Sv) Enable [●] / Disable [ ]
(brightness value + scene sensitivity set in a camera)

Show Set Bv (Brightness Value) Enable [●] / Disable [ ]
Bvs in Miscellaneous Values. Internal-brightness scenes through recalculation of the parameters established in the camera. Just Av-Sv + Tv.

Show Measured Bv Enable [●] / Disable [ ]
Displays the measured brightness value, as written in the Exif data.

Show Overexp. Value (No Flash!) Enable [●] / Disable [ ]
Indicates a calculated overexposure value. Av-Bv-Sv + Tv

Show Canon overexp. Value Enable [●] / Disable [ ]
Indicates the overexposure value calculated by the camera.

Show Scene luminance (cd/m2) Enable [●] / Disable [ ]
B in Miscellaneous Values. Run average in standard illumination scenes candelas per square meter… calculated from a ratio to Bv = 12.5.

DOF Calculator

The Depth Of Field Calculator displays 5 distances in meters…

  • SD – Distance to the subject (Near Limit + DOF*0.33). Also called the Focal Plane.
  • NL – Near Limit. The distance where acceptable sharpness begins.
  • FL – Far Limit. The distance where acceptable sharpness ends.
  • DOF – the Distance between the Near Limit and the Far Limit.
  • HYP - Hyperfocal distance
Depending on the aperture and zoom settings, the hyperfocal distance reflects the optimal distance for an object to be photographed, i.e. the sharpness of that object will be the sharpest at this specific distance.

Show DOF calculator [Don't, Separat, In Misc]

  • Don’t – Disables display of the DOF calculator
  • Separate – Displays the DOF values apart from the Misc values.
  • In Misc – Displays the DOF values with the Misc values.

Canon Subj. Dist. as Near Limit Enable [●] / Disable [ ]

Enabling this value affects the way the subject distance is calculated.

Use EXIF subj. Dist. (Propcase #65) Enable [●] / Disable [ ]

Enabling this value affects the way the subject distance is calculated.

Experimentation may be required to clarify these 2 preceding settings, they will affect script commands that establish focus and some other camera behavior, such as focus bracketing.

The following 5 settings will determine which DOF values will appear. When the “Show DOF calculator” is set to “Separat”, all 5 values are always displayed. When it is set to “In Misc” then only the enabled values below are displayed as part of the Miscellaneous Values. Show Subj. Dist. in Misc. Enable [●] / Disable [ ]
Enable to show in Miscellaneous values on OSD.
Show Near Limit in Misc. Enable [●] / Disable [ ]
Enable to show in Miscellaneous values on OSD.

Show Far Limit in Misc. Enable [●] / Disable [ ]
Enable to show in Miscellaneous values on OSD.

Show Depth of Field in Misc. Enable [●] / Disable [ ]
Enable to show in Miscellaneous values on OSD.

Show Hyperfocal Dist. in Misc. Enable [●] / Disable [ ]
Enable to show in Miscellaneous values on OSD.

Subject distance from lens Enable [●] / Disable [ ]
When enabled, distances displayed are measured from the front of the lens rather than the sensor. This is useful for macro photography.


Show RAW state Enable [●] / Disable [ ]

RAW in OSD. Enables the display of the RAW indicator. Show RAW shoot remain Enable [●] / Disable [ ]
Calculates how many RAW captures will fit in the current free memory and displays that number next to the RAW indicator.

Warning threshold [0 – 200]
Turns the RAW indicator red when the number of RAW shots remaining drops below the threshold value.


Hooray for the battery indicator!!

Controls the display of the battery indicators on the LCD

Battery Settings

Set the maximum and minimum voltages to match fully charged and discharged batteries, the battery icon fill color will reduce as voltage lowers and will change to red color close to minimum voltage.


Show Filespace Icon Enable [●] / Disable [ ]

Displays a small SD card shaped icon on your screen to show how much filespace is left on your SD card. Opaque means remaining free space. Transparent means that space has been used. Use the OSD Layout Editor to position the icon anywhere on your screen.

Show Space Bar [ Don’t, Horizon, Vertical ]
Displays a thin SD capacity remaining "fuel-gauge" icon on your screen. Location is positionable in your OSD Layout Editor.

Don't - Turn off this feature. Horizon - Displays the bar-graph gauge in a horizontal orientation. Vertical - Displays the bar-graph gauge in a vertical orientation.

Size on Screen

Changes the display size of your "Space Bar" SD-capacity gauge.

1/4 - the bar-graph only goes 1/4th the width or height of your EVF/LCD display. 1/2 - the bar-graph goes 1/2 the width or height of your EVF/LCD display. 1 - the bar-graph goes the full width or height of your EVF/LCD display.

Change the width (for vertical space-bar) or height (for horizontal space-bar) in 1-pixel increments.

Show Filespace in Percent Enable [●] / Disable [ ]
Display your SD card space left in percentage of its total capacity. (Toggles between this and the MB option.) OSD display element positionable in your OSD Layout Editor.

Show Filespace in MB Enable [●] / Disable [ ]
Displays your SD-card space-remaining in Megabytes. Toggles between this and the percentage option. (see above).

Warning Unit

  • Don't - Don't display a warning when your free SD-card space is getting low.
  • Percent - Change your space remaining display to the warning color when the percentage reaches or goes below your selected "% Threshold" (see below).
  • MB - Change your space remaining display to the warning color when the Megabytes reaches or goes below your selected "MB Threshold (see below).

% Threshold
Setting used in conjunction with above "Warning Unit" feature. Set the amount of SD-card space percentage remaining when you want that OSD element to turn to your chosen warning color.

MB Threshold
Setting used in conjunction with the above "Warning Unit" feature. Set this to how many megabytes when your space remaining feature turns to your chosen warning color. Note: may be used in conjunction with a handy script if you need to ration the amount of photos you take on a long vacation.

See this: script.



Show Clock Displays an OSD real-time clock.

  • Don't - No clock display.
  • Normal - Displays HH:MM
  • Seconds - Displays HH:MM:SS

Clock Format 12-hour or 24-hour format toggle. When 12-hour format is used then the chosen 12-Hour Clock AM/PM indicators are enabled. Also influences the temperature format. 12h - Fahrenheit.

12h Clock Indicator PM- Displays AM or PM suffix on the OSD Clock P - Shorthand version of A or P for AM and PM on the OSD Clock (to save real-estate space). Ultra-shorthand version of AM or PM. Displays a simple "." after the time to indicate PM, no character is displayed for AM. Examples: 10:30 = 10:30 AM, 11:15. = 11:15 PM (note the small period after the 15).

@ Shutter Half-press Show Shows your OSD clock during a half-press of your shutter button.....

  • Don't - No clock display on a half-press.
  • Full - Shows full clock time during half-press.
  • Seconds - Only counts off the seconds in the clock display during a half-press. Helpful when doing manual timings between consecutive shots without having to quickly call up some intervalometer script.

Show OSD in Review Mode Displays your OSD when in REVIEW mode. Do not confuse this with Playback mode. Review mode is when your last taken photo is temporarily being displayed as you hold down the shutter-button (and press SET to lock it into Review Mode) or when you have your Canon's Menu "Review" options turned on. This allows you to keep your on-screen grid and other settings visible when reviewing the photo to see if you got the framing or other settings as you had intended.

Visual Settings


Use this menu to make changes to the appearance of all CHDK menus, texts, backgrounds, etc., choose font types, sizes, colors, etc.


Lets you choose another language if you have the appropriate .lng-file in the CHDK/LANG/ folder of your SD card.

OSD codepage

Choose the Codepage [ Win1250 - 1257 ]

Menu RBF font

Choose another font RBF format for the CHDK menus. If you have chosen a RBF font but want to switch back to the original built-in font, just choose an "illegal" RBF font (Try to load a uBASIC script as a RBF font, for example).


ColorPallet-Yellow brt

Change any of the display colors for all your text and icons. If you don't change them they will remain as their defaults. There are opaque colors and transparent colors, and also some "special effect" colors. Note that record mode and playback mode use different color tables. So it may happen that you pick a nice color in playback mode, and in record mode it will look totally different. But there are also colors which will stay the same in both modes. Some examples for A-series cameras: 0x11(white), 0xFF(black), 0x22(red), 0x55(green), 0x44 (transparent light grey).

VisualSettings MenuText green
VisualSettings CursorBackgrnd VisualSettings MenuBackgrnd

These Pics show Green Menu Text, Green Cursor Background, and Pink Menu Background.

Scripting Parameters


Load Script from File...

Enter <ALT> mode, press Func./Set to go to the SCRIPTS Folder, select a script, press Func./Set again to load it, then press menu to finish. Stay in <ALT> mode, press the Shutter button to run the script. To interrupt a running script press the Shutter button. To return to normal shooting, exit <ALT> mode. CHDK saves your last user-selected script parameters from one session to the next. The default script is the one you load when you don't need a script. New scripts can be added to the SCRIPTS folder as they become available.

Script shoot delay (.1s)

After an image is captured, indicates how long to delay the execution of the next script command. A value of 0 executes immediately. A value of 10 executes the next script command one second after capture. Mainly used to minimize camera movement before script starts.

Script Autostart [Off, On, Once]

When enabled, the script listed under “current script” will execute immediately the camera is turned on, remember this when you see your camera operating by itself after it is turned on.

Remote Parameters

  • Enable Remote Enable [●] / Disable [ ]

Toggles your remote USB cable detection state, both scripted and scriptless. When this is enabled you may use your camera normally without any script and still use your USB-Remote cable to trigger the shutter. Have your camera in normal record mode and not in <ALT> mode. This is the same as if you pressed the shutter manually in all normal camera operations. Note on scriptless usage: You may first perform a half-press to auto-focus and set exposure with a short press of your USB-Remote trigger, The second press will then perform a full shutter-press. If you want to trigger a full shutter-press immediately just hold down your USB-Remote button a little longer. Or more precisely explained by the author of this: "... if USB remote is enabled, pressing / releasing remote button is equivalent to pressing / releasing the shutter halfway. To take a shot, do a "reversed click", i.e. momentarily release and again depress the remote button within 0.5s, which will "push" the shutter all the way.
Note: On some cameras the scriptless USB Remote trigger may be used to advance (in reverse order) from frame to frame in Playback mode. Now when giving a slide-show lecture you can stand away from the camera and just click the photo change button.

...................................synchable remote........................................

  • Enable Synchable Remote Enable [●] / Disable [ ]

Enables synchable scriptless remote code originally used in Stereo Data Maker.

  • Enable Synch Enable [●] / Disable [ ]

Used to synchronize 2 or more cameras when all hooked to the same USB-Remote signal. Enable Synch Delay Enable [●] / Disable [ ]

Allows you to fine-tune your USB-Remote triggering speed to match that of other cameras when using more than 1 camera. (For stereo imagery, multi-frame stop-action matrix effects, etc.) Rate of delay is adjusted with the settings below.

  • Sync Delay 0.1ms

USB-Remote Sync delay in 0.1ms increments (1/1000th of a second).

  • Sync Delay 0.1s

USB-Remote Sync delay in 0.1s increments (1/10th of a second).

  • Enable Remote Zoom Enable [●] / Disable [ ]

To enable the zoom by remote control function.

  • Zoom Time-out 0.1s [ 2 - 10 ]

Set a value for time-out, 0.1s x 2 up to 10.
Load Default Param Values
CHDK normally saves your last user-selected script parameters from one session to the next. Press Func./Set when your menu cursor is on this option resets them to the default parameters as programmed into the script when first ran. A simple way to go back to a script's defaults after you've gotten hopelessly lost in many changes or just need a quick way to return to base settings.
Parameters Set
Allows for the selection of 0 to 9 (ten) optional parameter sets for each script. If you select a new Parameter Set and then change your user-setting script parameters, CHDK will now remember your settings for each set. (The script parameter sets are saved in a CHDK/DATA/ directory named by the script in use at the time.) Now you can have up to 10 favorite settings for any one script. The next time you load the same script your favorite defaults can be called-up by just selecting numbers 0 to 9.

Save params

Enable [●] / Disable [ ]

Save current parameter settings.

.......................................Default Script................................................…

The name of the currently loaded script
  • Times to Repeat [ 5 ]
Set a number for times for script to repeat.
  • Display Delay [ 3]
In seconds

Miscellaneous stuff

MainMenu MiscStuff

File browser

Function Toggle Sw 2
Use multifunction sw to navigate.

Browse files in the various CHDK folders. Use UP/DOWN key to highlight, FUNC.SET to select a folder, Right key to select file, Left key for pop up menu for Cut, Copy, Delete, Select Inverse, RAW sum, RAW average, Purge RAW, Sub from marked, DNG -> CHDK RAW.

  • RAW Merge

When selecting (highlighting) files in the file browser mode, by using your RIGHT navigational button, you now have 2 functions available on the LEFT navigational button menu. If after using either of these features and you would like to see the resulting image without having to load them into a computer and using RAW viewing software, use the "RAW Develop" feature on the "RAW Parameters" menu to create a JPG file for playback in the camera. When using either of these options the resulting new RAW file will use whatever last filename was selected for merging as the prefix to the new RAW filename, and a WAV suffix will be added to it so you know which last-of-a-sequence files were used for merging. This also circumvents any confusion later when using utilities like DNG4PS with trying to merge corresponding JPG EXIF data with the original RAW data, where filenames could get drastically out of order by creating new JPG filename numbers.

  • RAW Sum

Using the selected RAW files, this will combine them into one file. Working on an additive principle. Meaning, if you take five 65-second exposures, then RAW Sum them together, the resulting image will be equivalent to the brightness level of a 5 minute, 25 second exposure.

  • RAW Average

This RAW Merge feature will, as it says, average all the frames together. Very convenient if taking several identical frames at high ISOs at high shutter speeds. This will merge them together, effectively obliterating any noise, as the noise gets averaged out. The more frames used, the less noise visible.

  • Purge RAW

With this function the RAW files can be deleted in 3 different ways...

The 3 options for the Purge RAW function and erase the corresponding RAW files:
1). Delete all RAW files in DCIM folder including subfolders, Useful when: You keep a separate folder for RAW files. You set up the camera to create a new folder everyday (several days trek, holidays etc). You want to erase the occasional mischievous RAW file stored in a different folder. Go to CHDK File Browser, select DCIM folder, push the LEFT to display the popup menu and select "Purge RAW" (See image 1). A warning will ask you to confirm (See image 2) and voila! You have regained some SD space.

Purge Raw
Images <01 and 02>
Purge RAW Yes

This feature will search through all the folders in DCIM looking for a RAW file (CRW/CR2 prefix or file extension) and if it finds one then will look for its JPG partner anywhere inside DCIM (comparing the 4 digit number assigned by the camera). If it is not found, the RAW file is erased.

2.) Delete all RAW files in a selected folder
Useful when:- You keep RAW files in the same folder as JPG files, You only want to get rid of some RAW files. (Very important shots in some other folder). You know which folder has a lot of out-takes. Go to CHDK File Browser and inside DCIM folder select the folder you want (E.g. "102CANON") and push the left button to display the popup menu. Select "Purge RAW". A warning will ask you to confirm and all the RAW files in ONLY that folder will be erased. This option works like the previous one but only on the selected Canon folder, the rest are untouched.
3.) Delete some or all RAW files in a list.
Useful when You want to protect specific RAW files (to use them later for HDR) Go to CHDK File Browser, enter DCIM folder, enter a sub folder (E.g. "102CANON") push the LEFT to display the popup menu. Select "Purge RAW" . A warning will ask you to confirm and all the RAW files will be gone. Now the useful thing of this option is that you can mark the RAW files you DON'T want to erase (protect files). The Purge RAW function will erase the rest of the RAW files ignoring the marked ones.


Yes, a calendar!

Calendar brt

Select Year - UP/DOWN
Select Month - LEFT/RIGHT

Text file reader

This utility can be used to read a text file stored on the SD card. (Very convenient!, you can keep onboard instructions.)

  • Open new file…

Displays a file browser window, opened to the CHDK/ BOOKS directory. You can select a txt file to view. Press Func./Set to open the file.

  • Open last opened file
Will display the most recent text file that was viewed.
  • Select RBF font
Open the file browser in the CHDK/FONTS directory. Allows you to select a different font for displaying text.
  • Codepage [Win1251, DOS]
Select the text file format.
TextFileRead-Change Font etc

As with other menus, fonts and colours can be changed to suit all preferences.

  • Wrap by words Enable [●] / Disable [ ]
Enables word-wrap.
  • Enable autoscroll Enable [●] / Disable [ ]
When enabled the text file will scroll automatically.
  • Autoscroll delay (sec) [ 0 – 60 ]
Determines how long the system waits before scrolling the text file.


Yes, games! Choose your favourite!

Arrow buttons - move
Func./Set - choose level (Moves counter should be 0).
Erase / +/- – restart current level
Display - show 'about' info
Zoom rocker - undo / redo moves

Connect 4 Mastermind

If colours are not displayed properly, try entering and exiting Canon menus before entering <ALT> mode.


For Cameras with fold out LCD. Turns the LCD panel into a flashlight! When in Record Mode and the LCD panel is swiveled facing forward, the LCD display turns all-white so you can see your way around in the dark, or to illuminate some close object while setting up to take a photograph.

Show splash screen on load Enable [●] / Disable [ ]

Mostly personal preference, shows build info, also indicates CHDK is loading. Camera startup will be slightly faster if splash screen is disabled.

Startup sound Enable [●] / Disable [ ]
Might be handy to know if someone else is using your camera.

Use zoom buttons for MF Enable [●] / Disable [ ]
For a more precise adjustment of manual focus.

<ALT> mode button

For some cameras. Choose which physical button on the camera switches ALT mode on and off. Default is usually Print.

  • On G9: [Print] / [FE]
  • On A650: [Print] / [ISO]

Disable LCD

[ No, Script, Alt ]

No: LCD disabled, Script: LCD on during script execution, Alt: LCD on
<ALT> mode. For long intervals you should disable the Power Saving options of your camera. This can be done in the <ALT> menu. In the Miscellaneous Stuff menu item set the Disable LCD Off value to Script, so the display won't turn off while in <ALT> mode or while a script is running.

Draw palette
Allows inspection of colours and transparencies by (almost) full screen. Use the numbers of the desired colours to select them in Visual Settings menu. Use arrows to navigate palette, press Func./Set to select a color, press MENU to exit.

Show build info
Displays the current version of CHDK in use, ie: 0.9.7 - 725, date Mar 19 2009.

Show memory info
Displays free RAM available, also CHDK size and load address.

Make card bootable...

Option to enable auto load of CHDK at startup. Memory cards must have FAT12 or FAT16 format for the bootable partition. Large cards formatted in camera will be FAT32.

Swap partitions

For cameras with multi partition support. To access each partition on a multi partition memory card, (in computer OS's that only read one partition) Press Func./Set to change to the currently inactive partition.

Reset options to default…

Reset all functions and displays back to CHDK default values. Note:- By this operation you will lose all your personal settings.

Debug Parameters

In this menu internal data on the functioning of CHDK is available.

  • Debug data display

Shows debug data on the OSD, values are: [None, Props, Params, Tasks]

  • Show PropertyCase variables...

The values are generally shown unsigned - that's because the propcase viewer doesn't know whether a value is supposed to be signed or unsigned, and treats everything as unsigned. "65152" is just the same value as "-384" when considered as an unsigned short rather than a signed short. Shows the task list, only on VxWorks cameras.

  • PropCase / ParamsData page

[ 0 -128 ] Search pages, each page shows 10 values

  • Property cases (PropertyCase or PropCase) are basically variables in the camera's RAM that we can read and write from CHDK by using uBasic commands get_prop and set_prop. "Under the hood" some other uBasic commands work by changing propcases, making it possible to use them in a portable way. Some propcases are read only. Often writing to a propcase will have a different effect than pressing the corresponding buttons on the camera's user interface. Typically this means that while you may change something like the shutter speed and your change will be effective in your photo, it may not be updated to the camera's on-screen display. To find out which Property case a function changes...


Caution 2

  • Task list start

Where to display from. If you set this to more than there are tasks running on the camera, it will show the last twelve, adjusting on the fly as tasks get created and then deleted.

  • Show misc values Enable [●] / Disable [ ]

Displays various values for service and programming purposes.

  • Memory browser

Similar role as previous.

  • Benchmark

Test write and read speed of the camera and SD cards. To compare memory cards. Since this function during the first pass provides inaccurate values a 2nd run should always be carried out, only the values of this 2nd run are meaningful.

Benchmarks Example

  • Create card with two partitions
Caution 3

This option creates a 2 MB FAT partition on the SD card, that's fixed on the code for now. Copy the CHDK firmware extensions to this partition and load them, (The DISKBOOT.BIN and PS.FI2 files). Then select "Make card bootable" in "Main Menu > Miscellaneous stuff", so it does not complain when you write-protect the card. Next step is to select "Swap partitions" in "Main Menu > Miscellaneous stuff", this will hide this small partition and make the larger FAT32 one visible. We need to format it, and copy CHDK files DISKBOOT.BIN and PS.FI2 to it too, so we can perform "swap partitions" again. So format it in FAT32, copy CHDK, insert it on the camera and load CHDK using "Firmware Update", Select "Swap partitions" and "Make card bootable", write-protect the SD card, (lock with slider on side of SD card) and power- cycle the camera. It should now load CHDK from the small 2 MB partition, but have access to the larger FAT32 partition to store pictures, video and the CHDK folders.

The size of the 1st partition is fixed to 2MB in the code (not changeable in the CHDK menu), but you can change it there and compile your own build, if you know how. Normally the creation of a partition deletes all data on the card, the swap command should not delete any data, but you should test this first! The partitions can also be created manually with a card reader on a computer, the 1st partition must be less than 4GB and formatted with FAT16. Note: as the CHDK download files grow in size with later versions it may be necessary to partition with a computer anyway - to make the 1st partition larger than 2MB to accommodate the larger file size.

  • ALT +/- debug action

Action for the +/- key (on IXUS series DISP is used instead)values are [None], [Dmp RAM] -> a complete memory (RAM) dump will be written to the SD card, [Page] in this mode the page shown in the propcase viewer can be changed (double-press changes the paging direction (up/down))

  • Show saving time

DNG visible via USB

DNG visible via USB Enable [●] / Disable [ ] This feature enables the display of DNG files on your computer, via USB connection.

Scripting Information Section

Some Script Links for the time being.

Scripts at the Forum

Lua Scripting language for CHDK


User-written Scripts


CHDK has to be one of the most innovative improvements to any camera that has ever come along since the beginning of photography. Started out by some people who only wanted RAW out of their raw-crippled cameras, it has now grown into one of the most adaptable, flexible, and full-featured operating systems of any cameras ever made. We are all extremely grateful for the work that everyone has put into this arena of discovery, implementation, coding, sharing, camera testing, (especially with the unknown, and possibly high risk), and those that provide all the information on the Wiki pages (and elsewhere in the world). Those who have contributed to this great stride in the world of photography deserve a huge vote of thanks.
Many thanks go to the original developers - vitalyb, and GrAnd, owenjm, Harvester, jeff666, [mr.anon], MX3, Fingalo, ewavr, Allbest, CHDKLover, BarneyFife, also to Jucifer and PhyrePhoX, cosmograph for the excellent CHDK logo.
Other contributors include, acseven (the forum), achurch, ADamb, auj, barberofcivil, Bg~, bondo, bperrybap, brabl2, brake, cail, chdkj, chr, cormac, cyril42e, danielmewes, Darkness, DataGhost, diablo, Divalent, ehmu, elecktro255, ERR99, fantomas4o, fboesch, fbonomi, fe50, fishpepper, fudgey, Graystar, Grin, Hacki, hiker_jon, h-v-n, iax, image13, Intrnst, Keoeeit, m2tk, ma_jk, mattkime, Microfunguy, mkmenuts, mproko, mrblack51, MrSpoon, msl, mweerden, nandoide, neszt, nimrod, nirschi, Novex, oldgit, pev69, pixeldoc2000, PlasmaHH, quietschi, RaduP, reyalp, rudi, sharky, shenty, Smartkiller, snc, stevetm2, stift, Thorwak, toinech, TPC, tr1stan, uvvv, Velo, whim, whoever, wontolla, Yarvieh, zfeet
and more to come……. Many thanks.

A note to potential Editors

This page is a collection of material contributed to the CHDK WIKI and other places, by many writers. Your edits will be welcomed by camera owners who want to get maximum usage from CHDK, and perhaps by Developers as an eventual reference source. It will probably serve everyone better if your contributions are given consideration, and leave anecdotes, stories, speculation, they can be contributed elsewhere, and this document, one would hope, will remain for mainly technical information, so that with your additions we will eventually have our 200 page Concise CHDK Reference Manual

GPL license information

  • This file is part of CHDK.
  • Copyright © 2008 The CHDK Team
  • CHDK - CHDK Wiki
  • This program is free software; you can redistribute it and/or modify
  • it under the terms of the GNU General Public License as published by
  • the Free Software Foundation; either version 2 of the License, or
  • (at your option) any later version.
  • This program is distributed in the hope that it will be useful,
  • but WITHOUT ANY WARRANTY; without even the implied warranty of
  • GNU General Public License for more details.
  • You should have received a copy of the GNU General Public License
  • along with this program; if not, write to the Free Software
  • Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA,
02110-1301 USA

Canon is a registered trademark of Canon Inc. The following trademarks are registered trademarks of Canon Inc.

  • Canon
  • PowerShot

Around Wikia's network

Random Wiki
