PowerShot A570 IS Edit

The Canon PowerShot A570 IS is a 7 MP digital camera with image stabilization, launched in February of 2007.

Notice

CHDK is available for the A570is with firmware version 1.00E and 1.01A from the Download page

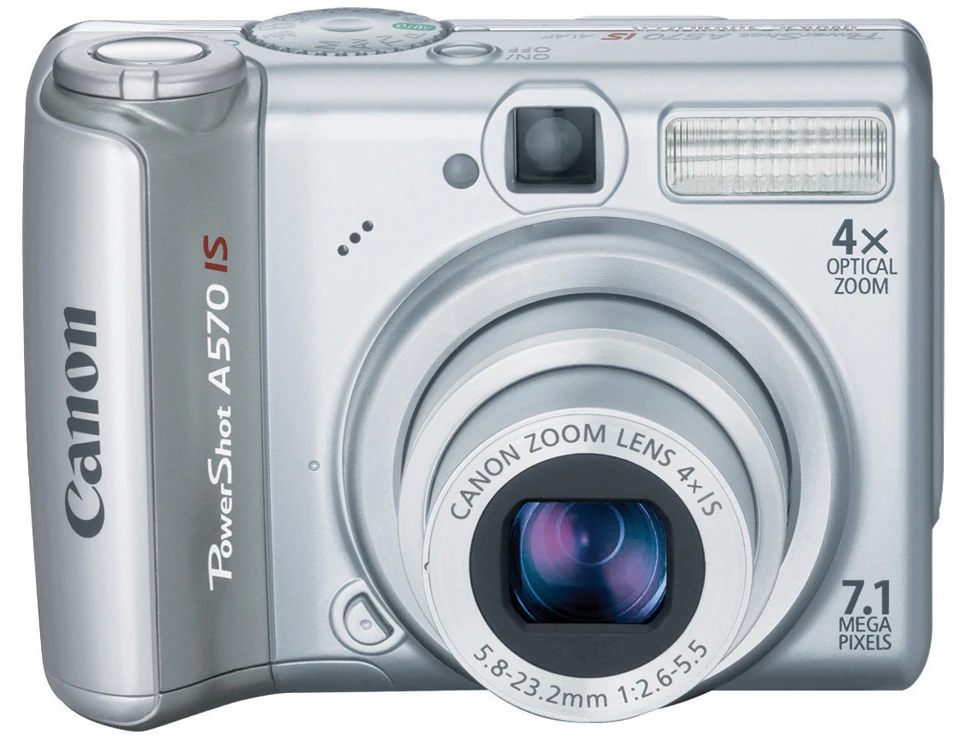

20070221 hiRes a570is front

Powershot A570 IS Front

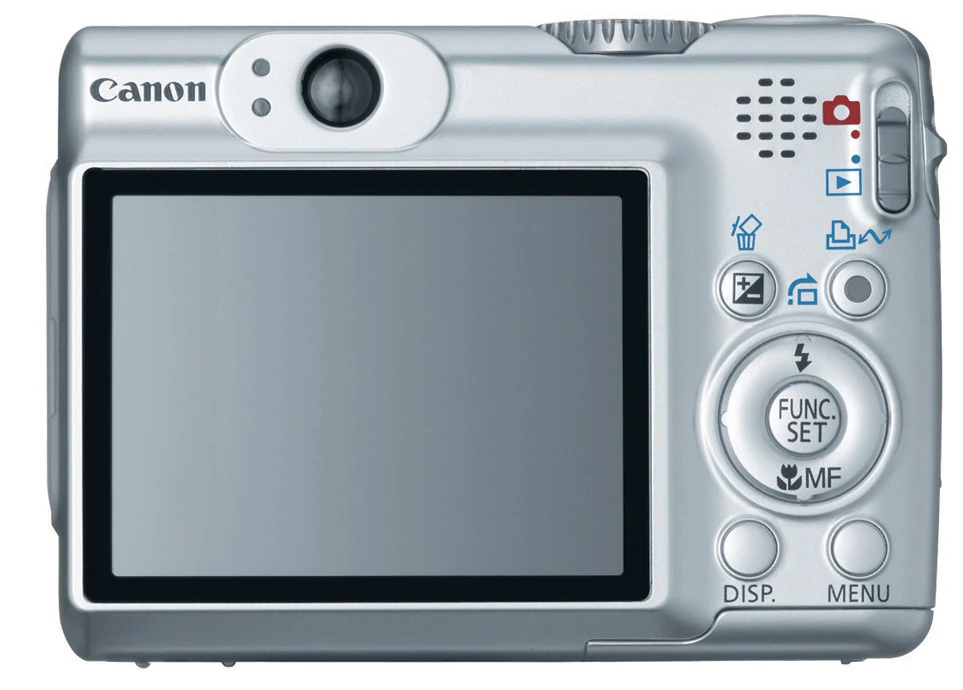

20070221 hiRes a570is back

Powershot A570 IS Back

Reviews and Specifications Edit

Firmware InfoEdit

Firmware information is given if ver.req exists on the SD.

Power on in PLAY mode with ver.req file on SD card, press and hold FUNCSET, press DISP reveals the firmware version.

...subsequent press of DISP (while still holding FUNCSET) reveals the next fw information pages (2x).

Technical DataEdit

Powershot A570 IS
Processor: Digic III (ARM946ES)
OS: VxWorks version 5.5
Sensor: 7.1 million effective pixels, 1/2.5 " Type CCD
Resolution: 3072 x 2304
Lens: 4x optical zoom, 35-140mm (35mm equiv), F2.6-5.5
OIS: Yes, shift-type
Viewfinder: Yes, optical viewfinder
Display: 2.5-inch TFT, 115,000 pixels
ISO range: 15 sec to 1/2000 sec without CHDK
Storage: SD / SDHC / MMC card
Battery: 2x AA Alkaline or Ni-MH batteries, Optional AC adapter kit
Dimensions: 89.5 x 64.3 x 42.8 mm
Weight(body): 175g
USB: USB 2.0 (Mini-B, MTP, PTP)
Misc: ISO 80-1600, AV out, Flash adjustable in 3 levels, movie clips up to 640x480 @30fps (320x240 @60fps)

underwater case available

CHDK specialities Edit

  • Since CHDK changeset #911 the <Alt> button can be set to PRINT (default) or DISPLAY from the "Miscellaneous stuff" / "<ALT> mode button" CHDK menu
    • If DISPLAY is selected for <Alt> button: press DISPLAY quickly it will act as your <ALT> mode button, but if you hold it down for a second, it acts like the DISPLAY button normally does


For Developers Edit

Firmware dumps Edit

  • A570 fw 100e (new one, 30-Nov-2008 by fudgey): zShare download
  • A570 fw 101a
Saveas64

Download location for firmware dumps:
P&S firmware dumps mirror

LEDs Edit

LED_PR 0xc02200C4


The set_led command currently has control of all LED's except for the power LED.
The address for the power LED is: 0xc02200D4

CHDK related infos Edit

  • PLATFORMID = 12620 (#314C)
  • The A570 has the 'accelerated' MD (buffer optimization in lib.c: vid_get_viewport_live_fb)
