A530

From CHDK Wiki

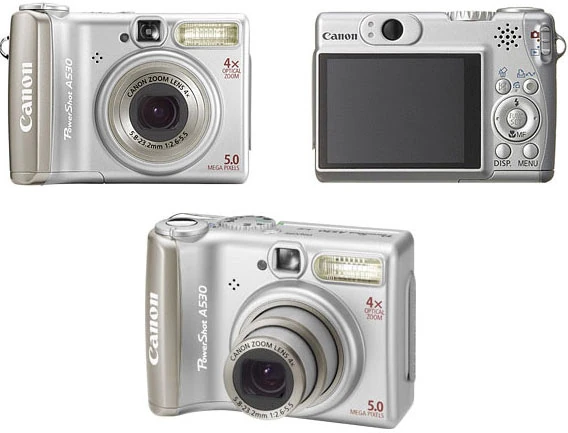

[edit] PowerShot A530

CHDK is available for the Powershot A530 with firmware version 1.00A from the Download page

Contents 1 PowerShot A530 2 Reviews and Specifications 3 Firmware info 3.1 Version 4 For Developers 4.1 Firmware flash 4.2 LED addresses 4.3 Firmware dumps 4.4 Development state 4.4.1 Old beta versions

[edit] Reviews and Specifications

• Canon
• Steve's DigiCams
• Imaging Resource
• DCR
• WikipediA

[edit] Firmware info

[edit] Version

The trick with the ver.req file works on the A530 as well, with the following result:

Canon PowerShot A530
P-ID:3126  PAL

Firmware Ver GM1.00A
No error
Dec 14 2005   09:32:59

pressing DISP button again results in:

Canon PowerShot A530
P-ID:3126  PAL

Adj Ver.002.004

[edit] For Developers

• The platform ID (P-ID) of the A530 is 3126 (Platform codes for other models can be looked up under P-ID).

With respect to the platform id, the A530 fits in between the A540 and the A710, so possibly it is similar to those firmwares. (Firmware is very similar to A700)

[edit] Firmware flash

0xff800000: firmware flash data (probably)
0xffc00000: mirror copy of firmware flash? (to be determined)

[edit] LED addresses

0xc0220080: 0x46 enables orange focus assist LED, 0x44 disables it
0xc0220084: 0x46 enables blue print LED, 0x44 disables it

[edit] Firmware dumps

You can get it here: http://mrz.boldlygoingnowhere.org/a530_dump.dat

Alternative download location for firmware dumps: CHDKdumps @drop.io, Part 1   —   CHDKdumps2 @drop.io, Part 2

[edit] Development state

• Porting the A530 is done, the A530 is included in the trunk.
• The forum porting thread is here:http://chdk.setepontos.com/index.php/topic,586.0.html

[edit] Old beta versions

• A530 Chdk 0.5 beta with usb-remote (This is the latest beta version available for testing.)
