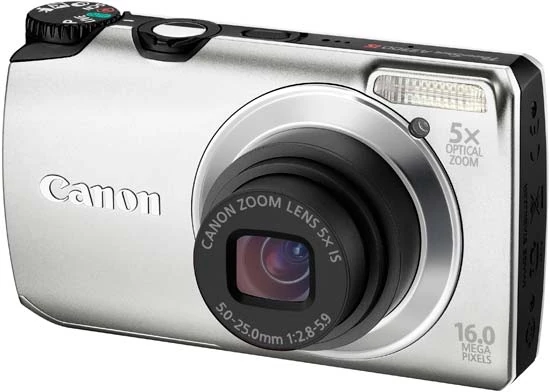

Canon Powershot A3300 IS

CHDK is available for the Powershot A3300 with firmware versions 1.00a, 1.00c and 1.00d from the Autobuild Server

Contents 1 Reviews and Specifications 2 Added by Hipoww 3 Technical Data 4 Firmware info 5 CHDK Specialties 6 For Developers 6.1 General info: 6.2 LED addresses 6.3 Available firmware dumps 6.4 Porting process & links

Reviews and Specifications Edit

• Canon UK spec page

Edit

Technical DataEdit

• Digic IV image processor
• DryOS operating system
• Sensor: 16.0 million effective pixels, 1/2.3" CCD (6.17 x 4.55 mm)
• Max image size: 4608 x 3456
• 5x optical zoom lens 28-140mm (35mm equiv), F2.8 - F5.9, Image stabilization
• 3 inch LCD
• ISO 80-1600
• Movie Recording: 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps)
• Power: lithium-ion battery
• Weight: 149g (5.25 oz), (without batteries): 130 g (4.60 oz)
• Dimensions: 95.1 x 56.7 x 23.9mm

Firmware info Edit

The ver.req file method is used to gather firmware information about this camera model.

Note: Camera must not be set in Easy mode, or this method won't work.

Version 1.00D

ver.req First Page Data: After holding down FUNCSET then pressing DISP once:

Canon PowerShot A3300 IS
P-ID: 3223 PAL D

Firmware Ver GM1.00D (1.0.0.0)
Adj Ver.005.007
Serial No. xxxxxxxxxxxxx

ver.req Second Page Data: After holding down FUNCSET then pressing DISP twice:

Canon PowerShot A3300 IS
P-ID: 3223 PAL D

Build: Jun  8 2011   10:32:57
NoError

ver.req Third Page Data: After holding down FUNCSET then pressing DISP three times:

Canon PowerShot A3300 IS
P-ID: 3223 PAL D

Mecha Firm Ver. 2.07
MechaDSP Ferm Ver. 1.03

CHDK SpecialtiesEdit

This section describes special CHDK-related things...

• The <Alt> mode is binded to: SetDisplay

For DevelopersEdit

• Porting Thread: http://chdk.setepontos.com/index.php?topic=6972.0

General info:Edit

This section describes general CHDK-related things...

LED addressesEdit

Power (green): 0xC02200F0
AF Led:        0xC02200F4
Flash:         0xC02200D4

Available firmware dumpsEdit

• Firmware 1.00A
• Firmware 1.00D (by hipoww): dropbox dl link, forum link: [1]

Download location for firmware dumps: → P&S firmware dumps mirror

Porting process & linksEdit
