A2100IS

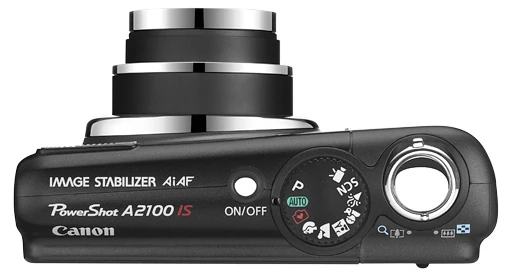

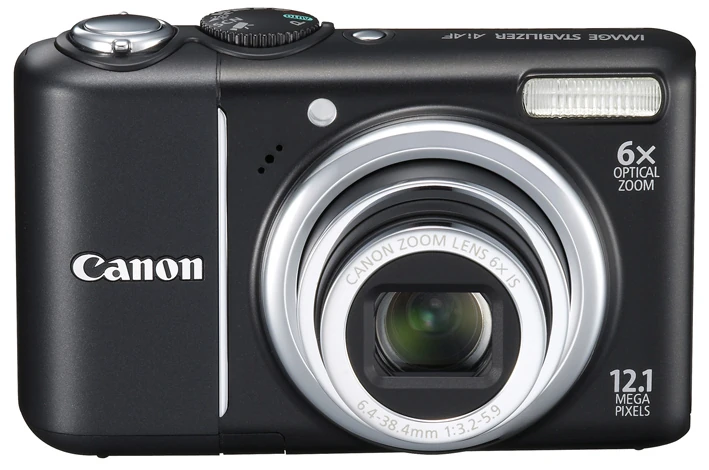

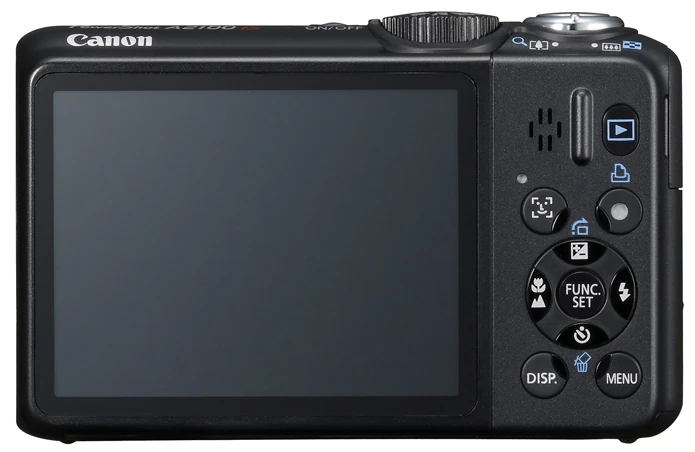

Canon Powershot A2100

The Powershot A2100 was released on February 17, 2009

The Powershot A2100 is NOT ported yet, there's NO CHDK available for this camera.

1 Reviews and Specifications
2 Technical Data
3 Firmware info
4 For Developers
- 4.1 LED addresses
- 4.2 Available firmware dumps

Reviews and Specifications Edit

Technical DataEdit

Digic IV image processor
DryOS operating system
Sensor: 12.1 million effective pixels, 1/2.3 CCD (6.16 x 4.62 mm, 0.28 cm²), 43 MP/cm² Pixel Density
Max image size: 4000 x 3000 (JPG max.)
6x optical zoom lens 36-216mm (35mm equiv), F3.2 - F5.9, Image stabilization
3 inch LCD, 230,000 pixels
ISO 80-1600
no optical viewfinder
Standard Definition Movie Recording: 640 x 480 (30 fps), 320 x 240 (30 fps)
Power: two AA type batteries
Weight (without battery): 185 g (6.53 oz), Dimensions: 101.9 x 63.5 x 31.9mm (4.01 x 2.50 x 1.26 in)

Firmware info Edit

The ver.req file is used to retrieve firmware information from the camera.

After holding down FUNCSET then press TIMER:

P-ID:31BE PAL D
Firmware Ver GM1.00A
Jan 5 2009 15:59:12

Subsequent press of TIMER (while still holding FUNCSET) reveals:

Adj Ver.005.009

and another press of TIMER (while still holding FUNCSET) brings up this:

Adj Ver.005.009
IS Firm Ver. 2.03
IS Param Ver. 2.02

and another press of TIMER (while still holding FUNCSET) brings up this:

Driver Info: 0x00000000

For DevelopersEdit

LED addressesEdit

#define LED_PWD 0xC0220014   // A2100IS Green - power led
#define LED_DP  0xC0220018   // A2100IS Blue - Direct Print led
#define LED_AF  0xC022000C   // A2100IS Red - AutoFocus led
