A1000IS

Redirected from A1000

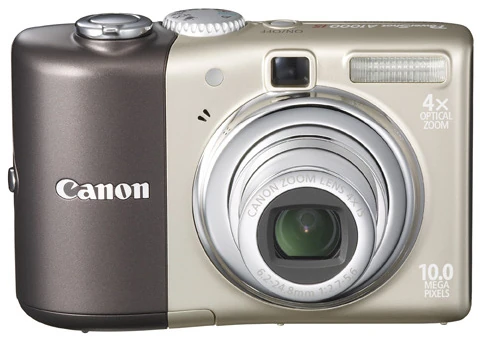

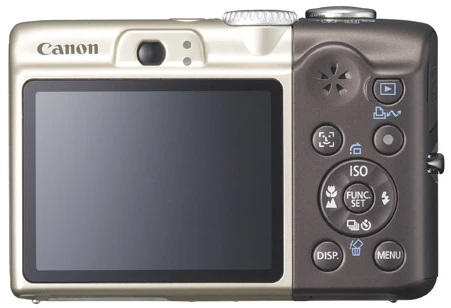

Canon Powershot A1000 IS

The A1000 is NOT fully ported yet, there's NO CHDK available from the Download page

A BETA version for fw 1.00B is available from the forum: [1]

Specification from Digital Photography Review: Canon A1000 IS

1 Technical data
2 Firmware info
3 For developers

Technical dataEdit

Release date:	26 August 2008
Sensor CCD size:	10.0 MP 1/2.3"
Lens (35mm equiv) zoom	35-140, 4x
LCD size	2.5-inch P-Si TFT 115,000 pixels
Card	SD, SDHC, MMC, MMCplus , HC MMCplus compatible
Size (mm)	96 x 63 x 31
Weight (body)	155 g

Inside this decent camera, the OS is the new DryOS, see also DryOS Porting.

Firmware infoEdit

Firmware information is given if ver.req exists on the SD.

In PLAY mode (with ver.req) press FUNCSET and DISP simultaneously:

Canon PowerShot A1000 IS
P-ID:318E  NT D

Firmware Ver GM1.00A
NoError
Jul  3 2008 17:06:02

Subsequent press of DISP (while still holding FUNCSET) reveals:

Adj Ver.007.010

After another subsequent press of DISP (while still holding FUNCSET) reveals:

Adj Ver.007.010
IS Firm Ver.  2.14
IS Param Ver.  2.08

For developersEdit

Firmware DumpEdit

Firmware 1.00A (extracted with CardTricks/udumper, by leecbaker): A1000 100a
Firmware 1.00B (by diabolo): A1000 100b

Download location for firmware dumps:
→ P&S firmware dumps mirror

LED memory adresses Edit

#define AF 0xC02200c0    // AF-Beam (red)
 #define DP 0xC02200c4    // direct-print (blue)
 #define OR 0xC02200c8    // orange state-led (bi-state with green)
 #define GR 0xC02200cc    // green state-led (bi-state with orange)
 #define YE 0xC02200d0    // Yellow state-led

PortingEdit

Porting the A1000 is in progress, the forum thread for porting the A1000 is here: [2]
The latest BETA version for fw 1.00B is available from the porting thread: [3]
