Canon EOS 450D, Digital Rebel XSi, Kiss X2 Digital

The EOS 450D released on January 23, 2008.


The EOS 450D is NOT ported, there's NO CHDK or hacks available for this camera.

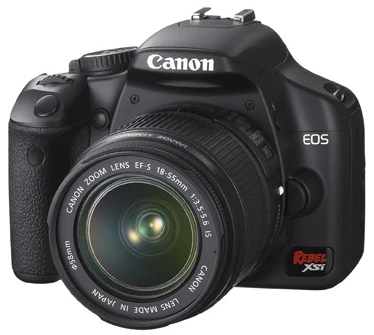

XSi front

Canon EOS 450D (Rebel XSi) Front with kit lens

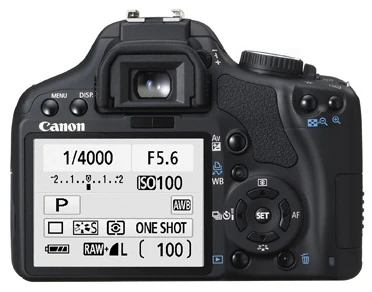

XSi back

Canon EOS 450D (Rebel XSi) Back

Reviews and Specifications Edit

Technical DataEdit

  • Digic III image processor
  • VxWorks operating system
  • Sensor: 12.2 million effective pixels, 22.2 x 14.8 mm (3.28 cm²) CMOS sensor, 3.7 MP/cm² pixel density
  • Image ratio (w:h): 3:2
  • Max resolution: 4272 x 2848
  • 3 inch LCD, 230,000 pixels
  • ISO 100-1600
  • Shutter speed: 30 - 1/4000 sec
  • Continuous Drive: 3.5 fps, 53 JPEG or 6 RAW frames
  • Auto Focus: Multi-BASIS TTL, 9 focus points
  • Power: rechargeable Li-ion battery LP-E5, 1080 mAh
  • Weight: 475 g (1.0 lb)(without battery), 524 g (18.5 oz)(with battery)
  • Dimensions: 126 x 98 x 62 mm (5.0 x 3.9 x 2.4 in)

Firmware info Edit

Version informationEdit


For DevelopersEdit

LED addressesEdit

#define LED_RE 0xC02200E0  // Red LED (Card Access)
#define LED_BL 0xC02200E8  // Blue LED (Print Button)

Available firmware dumps & updatesEdit
