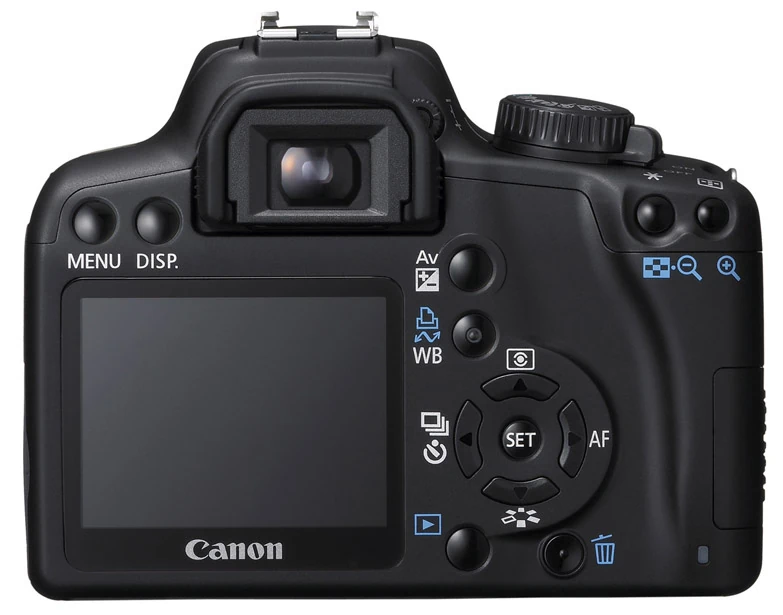

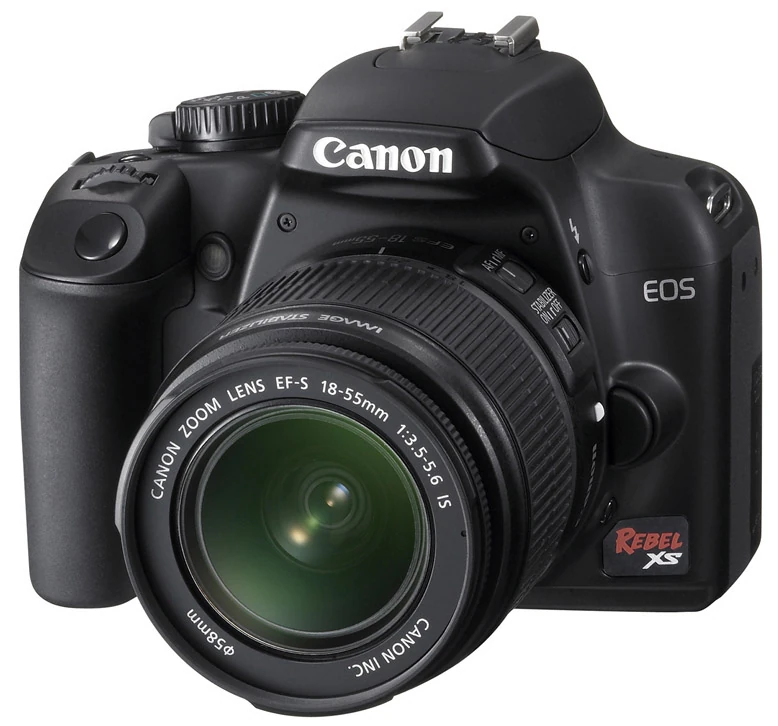

Canon EOS 1000D \ Rebel XS \ Kiss F

The EOS 1000D released on July 8'th 2008.

The EOS 1000D is NOT ported, there's NO CHDK or hacks available for this camera.

Reviews and Specifications Edit

Technical DataEdit

Digic III image processor (general purpose CPU on digic II-IV is arm946E-S, configured little endian, no MMU - http://chdk.setepontos.com/index.php?topic=2310.msg58789#msg58789)
VXworks operating system
Sensor: 10.1 million effective pixels, 22.2 x 14.8 mm (3.28 cm²) CMOS sensor, 3.1 MP/cm² pixel density
2.5 inch LCD, 230,000 pixels
ISO 100-1600
Shutter speed: 30 - 1/4000 sec
Power: rechargeable Li-ion battery LP-E5, 1080 mAh
Weight (without batteries): 502 g (1.1 lb)
Dimensions: 126 x 98 x 62 mm (5.0 x 3.9 x 2.4 in)

DevelopmentEdit

Development thread: [1]
Source code:

hg clone https://bitbucket.org/coutts/1000d_dev

Conceivable feature additions with hackingEdit

~~There are no developers working on this~~ so this is just a hypothetical list of features that may be possible to unlock or enable in the 1000D.

Firmware features available in the 450D:

Increase continuous RAW fps count to 3.5 fps or more
Spot metering
Highlight Tone Priority
Faster shutter speed
Real time depth of field / hyperfocal calculator
Live histogram (in live view)
Live view in auto mode

Other Features:

Autofocus micro adjustment
Video Recording on SD card Directly
Remote flash controller
Iso 3200 expandable a 6400
Autofocus in selection of priority face

Firmware info Edit

Version: 1.0.6 (e6kr5106.fir)

Tool: Firload (http://pel.hu/down/FIRload.exe)

OUTPUT:
---flasher1---
0x000: modelId = 0x80000254, (Canon 1000D / Rebel XS)
0x010: version = 1.0.6
0x020: cheksum = 0xc785145d OK
0x024: flasher1 header start = 0xb0
0x028: flasher1 payload start = 0x120
0x02c: flasher2 start = 0xffffffff
0x030: firmware start = 0x1a0190
0x034: 0xffffffff
0x038: file size = 0x71600c (7,430,156 bytes) OK
0x03c: 0x0
0x040: xor seed = 0x02695585
0x044: 0x00000004 0x00000000 0x00000020 0x00000024
0x054: 0x00000044 0x000000b0
0x05c: fw start-0xb0 ??? 0x1a00e0
0x060: firmware start = 0x1a0190
0x064: firmware length = 0x575e7c
0x068: hmac-sha1 = 595534e245573955137bd2564c1aa014e95e3246
0x088: hmac-sha1 = e32af177d3cdbcb4f475b7af1cd8b8f8d6314d27
0x09c - 0x0af: 0x0
---flasher1 header---
0x0b0: flasher1 payload length = 0x1a0070 starts at 0x120
0x0b4: flasher1 ??? = 0x1a0070
0x0b8: 0x0
0x0bc: xor seed = 0x80cb568
0x0c0 - 0x11f: 0x0
---flasher1 payload---
0x120 - 0x1a018f: (ciphered data)
---firmware---
0x1a0190: (+0x000), firmware header start = 0xc
0x1a0194: (+0x004), firmware payload start = 0x7c
0x1a0198: (+0x008), total firmware length = 0x575e7c. starts at 0x1a0190
---firmware header---
0x1a019c: (+0x00c), firmware payload length = 0x575e00
0x1a01a0: (+0x010), firmware ??? = 0x575df6
0x1a01a4: (+0x014), 0x0
---firmware payload---
0x1a020c (+0x07c) - 0x71600b: (encrypted data)

Version informationEdit

Latest version reported by users: 1.0.7
Latest version available from Canon: 1.0.7
http://web.canon.jp/imaging/eosd/firm-e/eosdigital5/data/e6kr5106.exe

For DevelopersEdit

LED addressesEdit

#define LED_RE 0xC02200E0  // Red LED (Card Access)
#define LED_BL 0xC02200E8  // Blue LED (Print Button)

Available firmware dumps & updatesEdit

Canon fw: EOS 1000D fw 1.0.7 -- http://web.canon.jp/imaging/eosd/firm-e/eosdigital5/firmware.html
Canon fw: EOS 1000D fw 1.0.6 -- http://web.canon.jp/imaging/eosd/firm-e/eosdigital5/firmware.html

EOS 1000D fw 1.0.5 firmware dump

Alternative download location for firmware dumps:
→ DSLR firmware dumps mirror

Available firmware analysisEdit

Output of the "strings" command reading the firmware -- http://drop.io/hl8lszo/asset/strings-1000d-txt

Program to save video for Edit

Recording is available using program that can be found on following url.
Connect your camera to PC, download program and run it.

Web page: http : / / valexvir.narod.ru/

Example of the video saving:

http : / / www.vimeo.com/4927410
